Landoll LCS13151 LANDCOMMANDER User Manual
Page 4
LCS11151
1K806
EXT. 14”
21”
47”

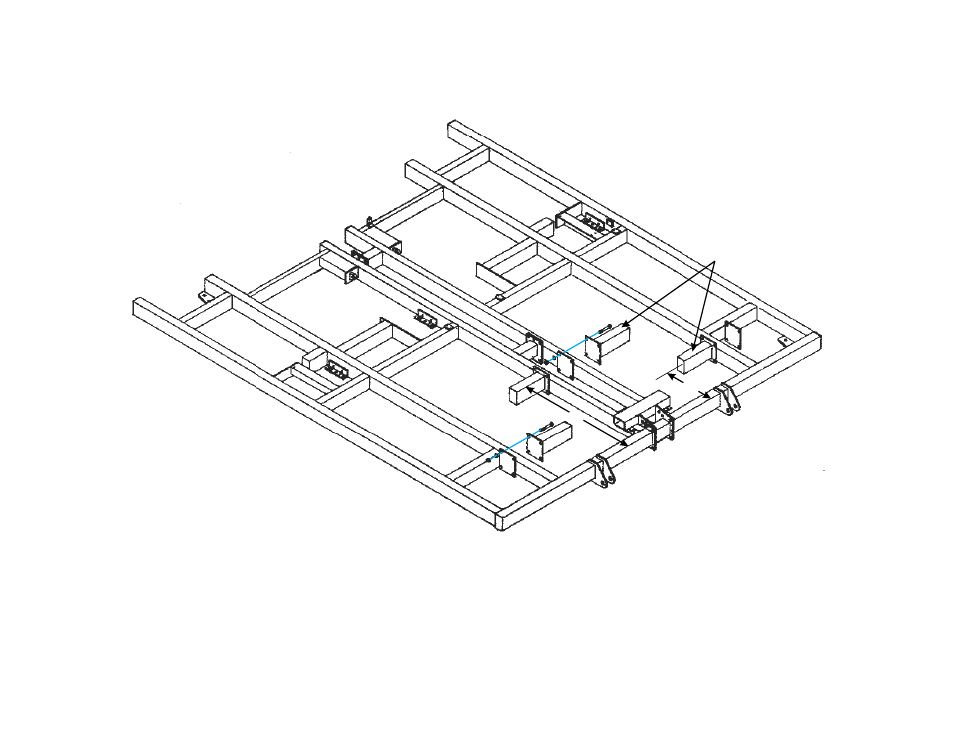

TO ASSEMBLE AN LCS11151, FOLLOW ALL THE ASSEMBLY INSTRUCTIONS FOR LCS72411 EXCEPT:
1. DO NOT ASSEMBLE FRAME TUBES TO THE FRAME.
2. USE PLATES, BOLTS AND NUTS FROM FRAME TUBES TO ATTACH EXTRA EXTENSIONS.
3. ATTACH MOUNTING BRACKETS TO THE FRAME AS SHOWN.
4. SEE PAGES 2 AND 3 OF REPAIR PARTS CATALOG FOR IDENTIFICATION OF FRAME PARTS.
