Landoll LCS13151 LANDCOMMANDER User Manual
Page 6
LCS13151
1K806
EXT. 14”
89-1/2”
21”
47”

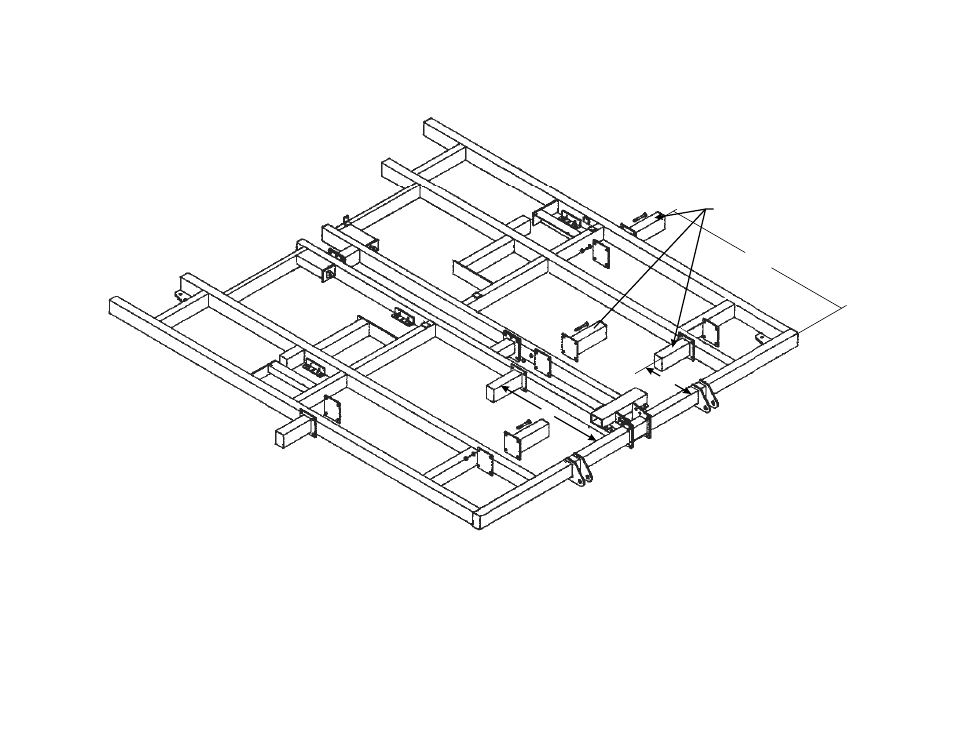

TO ASSEMBLE AN LCS13151, FOLLOW ALL THE ASSEMBLY INSTRUCTIONS FOR LCS7301 EXCEPT:
1. DO NOT ASSEMBLE FRAME TUBES TO FRAME.
2. USE PLATES, BOLTS AND NUTS FROM FRAME TUBES TO ATTACH EXTRA EXTENSIONS.
3. ATTACH MOUNTING BRACKETS TO THE FRAME AS SHOWN.
4. SEE PAGES 2 AND 3 OF REPAIR PARTS CATALOG FOR IDENTIFICATION OF FRAME PARTS.
