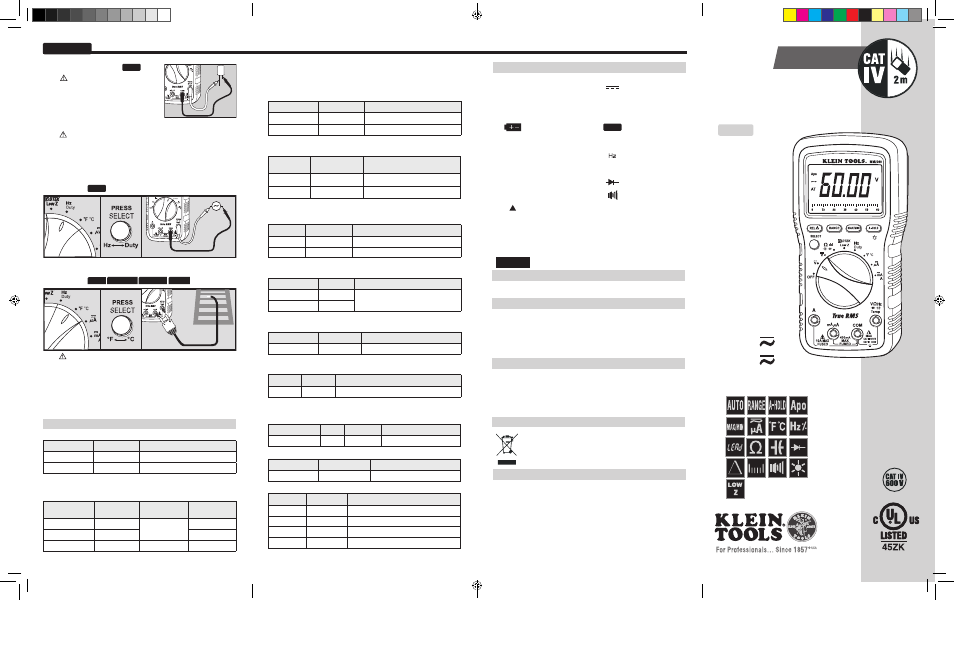

Klein Tools MM2300 - Manual

CuStOMEr SErVICE
KLEIN tOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
[email protected]
www.kleintools.com
ENGLISH
Instruction Manual
ENGLISH
• trMS
• BaCKLIGHt
• Bar GraPH
• LEaD HOLDEr
• MaX / MIN
• 3-5/6 DIGIt
6000 COuNt LCD
• autO / MaNuaL
raNGE
• autO HOLD
ELECtrICaL SPECIFICatIONS
DC Voltage Measurement
range resolution accuracy
600mV ˜ 600V 0.1mV ˜ 0.1V ± (0.5% + 4 digits)
1000V 1V ± (0.8% + 10 digits)
Overload Protection: 1000V Input Impedance (Nominal) : 10MΩ, <100pF
Input Impedance (Low Z) : 3kΩ, <200pF, up to 600V RMS
aC Voltage Measurement
range resolution accuracy
40Hz ~ 400Hz
accuracy
400Hz ~ 5kHz
600mV 0.1mV
± (0.75% + 5 digits)
± (2.0% +3 digits)
6V ~ 600V 1mV ~ 0.1V ± (2.0% +3 digits)
1000V 1V ± (0.75% + 8 digits) ± (2.0% +3 digits)*
continued on next page.
Overload Protection: 1000V RMS Input Impedance (Nominal): 10MΩ, <100pF
Input Impedance (Low Z) : 3kΩ, <200pF, up to 600V RMS
Frequency response: 40 to 5kHz response: True RMS
*Accuracy for 400Hz ~ 1kHz range only.
DC Current Measurement
range resolution accuracy
600μA ~ 400mA 0.1μA ~ 0.1mA ± (1.0% + 5 digits)
6A ~ 10A 1mA ~ 10mA ± (1.5% + 5 digits)
Overload Protection: µama: F440mA/1000V fuse / a Input: F11A/1000V fuse
aC Current Measurement
range resolution accuracy
40Hz ~ 2kHz
600μA ~ 400mA 0.1μA ~ 0.1mA ± (1.2% + 5 digits)
6A ~ 10A 1mA ~ 10mA ± (1.8% + 5 digits)
Overload Protection: µama: F440mA/1000V fuse / a Input: F11A/1000V fuse
Frequency:
40 to 2kHz response: True RMS
resistance Measurement
range resolution accuracy
600 Ω ˜ 6MΩ 0.1 Ω ˜ 0.001MΩ ± (1.0% + 5 digits)
60M Ω 0.01M Ω ± (1.5% + 10 digits)
Overload Protection: 600V RMS
Capacitance Measurement
range resolution accuracy
60nF 0.01nF
± (3.5% + 6 digits)
600nF ~ 6000μF 0.1nF ~ 1μF
Overload Protection: 600V RMS
Frequency Measurement
range resolution accuracy
99.99Hz ˜ 499.9kHz 0.01Hz ˜ 0.1kHz ± (0.1% + 3 digits)
Overload Protection: 600V RMS Sensitivity: > 0.7V RMS
Duty Cycle Measurement
range resolution accuracy
0.1 ˜ 99.9% 0.1% ± (0.2% per kHz + 0.1% + 5 digits)
Overload Protection: 600V RMS Sensitivity: < 50V
Frequency range: <10kHz
Diode test
Overload Protection range test Current Open Circuit Voltage
600V RMS 6.0V Appx. 0.25mA < 1.8V DC (typ.)
Continuity test
Overload Protection Open Circuit Voltage threshold (appx.)
600V RMS < 0.44V <40 Ω
temperature Measurement
range resolution accuracy
-58 ~ 600°F 0.1°F ± (1.0% + 5.4°F)
-50 ~ 600°C 0.1°C ± (1.0% + 3.0°C)
600 ~ 1832°F 1°F ± (1.0% + 5.4°F)
600 ~ 1000°C 1°C ± (1.0% + 3.0°C)
Overload Protection: 600V RMS thermocouple accuracy: Not specifi ed
Specifi cations subject to change
Do Not apply voltage to thermocouple.
• -58° to 1832°F (-50° to 1000°C)
8. temperature:
Features:
testing Fuse:
• When selecting uA or mA/A functions the meter will indicate
“LEad” if the test leads are not properly connected to the meter.
• Note: This message remaining on the screen after properly
connecting the test leads is an indication that the fuse is open.
Rev B 04/14 139716
7. Frequency (Hz) / Duty Cycle: <500kHz
Features:
HOLD
6. Low Impedance (Low Z): < 600V
DO NOt use (LOW Z) mode at voltages greater than 600V.
• Press SELECT to choose AC or DC Voltage.
• Use Low Impedance (LOW Z) mode to reduce ghost voltages
• See AC/DC Voltage instruction
Capacitance Features: HOLD
Safely discharge capacitor before
measurement.
• Reading may take up to 60 seconds
for large capacitors.
SYMBOLS uSED ON LCD
~
aC Measurement DC Measurement
-
Negative DC Value AT auto range active
O.L. Overload: range Exceeded Apo auto Power-Off active
Low Battery HOLD Hold active
MIN Minimum reading MAX Maximum reading
% Duty Cycle Mode Frequency Mode
V Voltage Measurement A Current in amps
Ω resistance in Ohms Diode test
F Capacitance in Farads Continuity test
relative / Zero Mode n Nano 10 -9
µ Micro 10 -6 m Milli 10 -3
k Kilo 10 3 M Mega 10 6
°F Degrees Fahrenheit °C Degrees Celsius
A-HOLD auto-Hold active
LOW
Z Low Impedance
autO HOLD MaX/MIN rEL HOLD
WarraNtY
www.kleintools.com/warranty
CLEaNING
Clean the instrument by using a damp cloth. Do not use abrasive cleaners
or solvents.
Take care to keep the sensor lens clean at all times. Clean the lens using a soft
cloth or cotton swab with water or rubbing alcohol only, and allow the lens to
dry before use.
StOraGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifi cations
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSaL / rECYCLE
Do not place equipment and its accessories in the trash. Items
must be properly disposed of in accordance with local regulations.
1000V
10A
