Grain Cart M0238-01
5/12 3-25
Lubrication and Maintenance

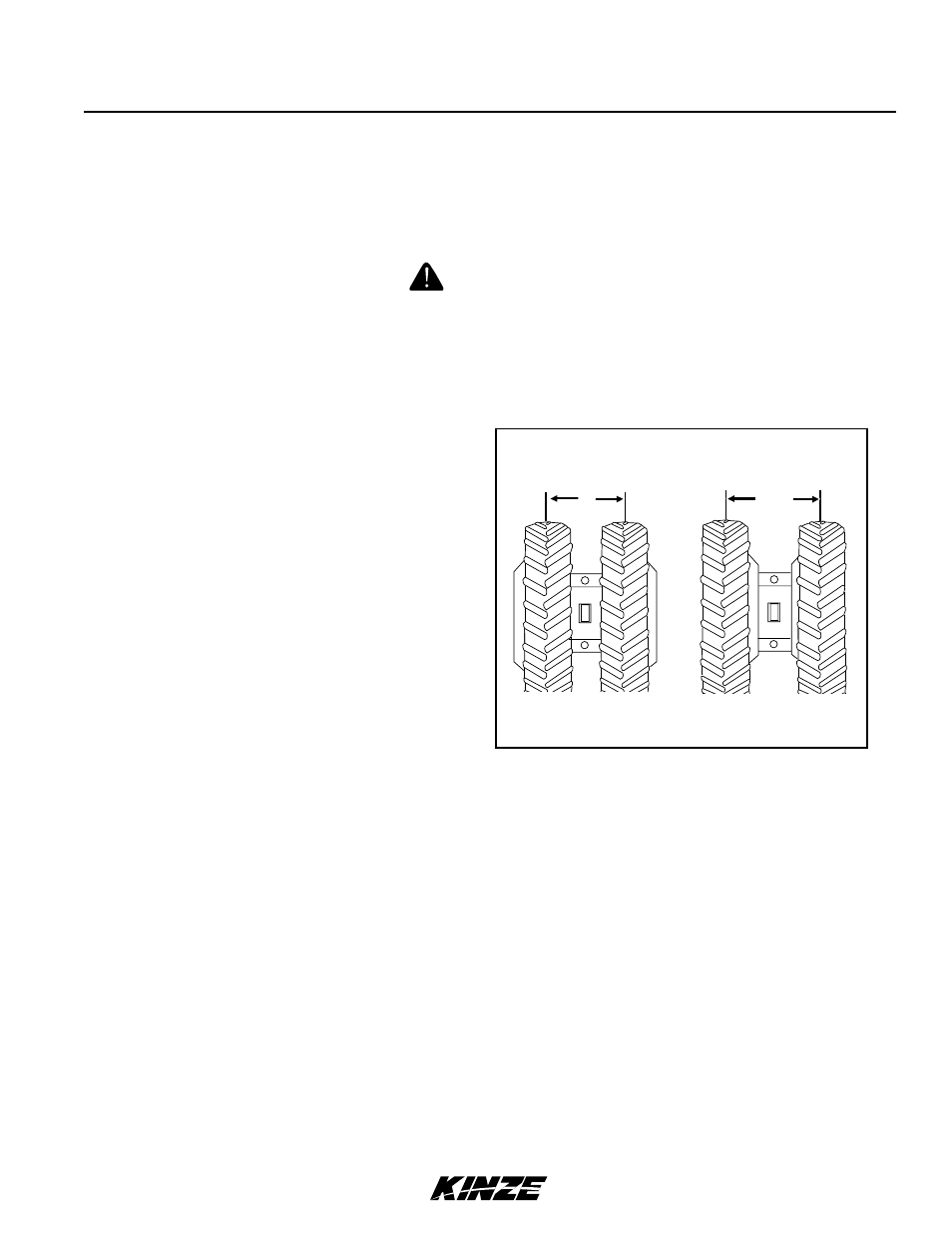

NOTE: Below illustrations viewed from rear of cart.
Offsets in rims are exaggerated to show positioning.
RH050490(WGN17/WGN57)
30" 37½"
Dual wheel installation with
offset in rims positioned
outward for 30" row spacing. Dual wheel installation with
offset in rims positioned
inward for wide row spacing.
6. Remove wheel nuts and remove tire from hub.
After tire repair is completed, reinstall tire/wheel onto hub. Lubricate wheel nut threads. Install and torque wheel nuts to
350 ft-lb (474 N-m). See “Wheel Nuts”.
WARNING
Moving cart with outer wheel removed can cause death, serious
injury, or damage to property and equipment. Tipping may occur
because of narrow wheel base.
NOTE: Reinstalled tire with offset in rim to same side as previously installed.
7. Reposition tire/axle assembly under cart at
previously marked axle adjustment.
8. Install eyebolts and cap screws.
9. Torque 1½" eyebolts to 930 ft.-lb (1261 N-m)
and ⅞" hardware to 350 ft-lb (474 N-m).
NOTE: Retorque wheel nuts:
a. After 4 hours use.
b. After 16 hours use.
c. Weekly during season.
