Lubrication and Maintenance

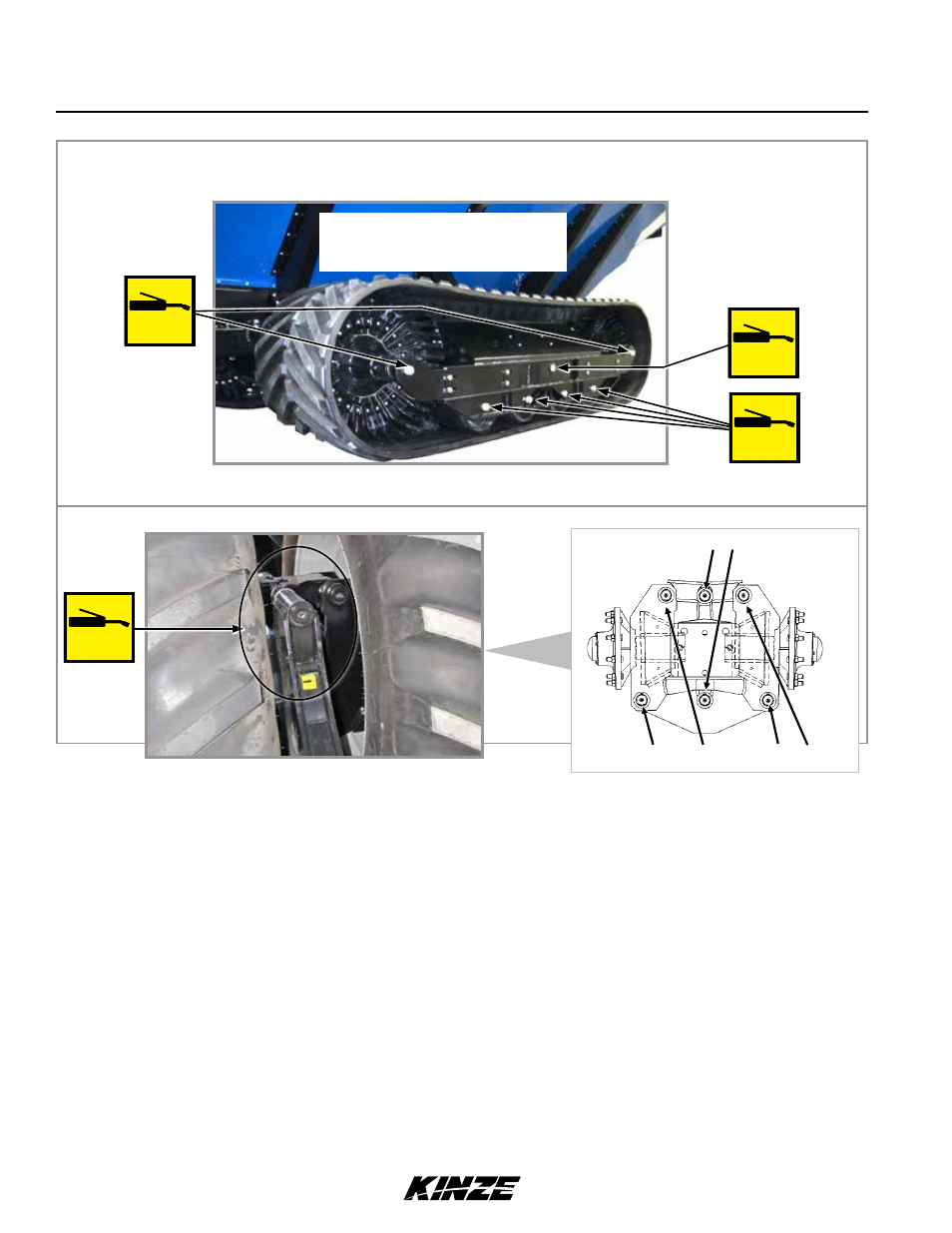

13. Axle Pin - 1 Zerk Per Side
Spindle Bolt - 12 Zerks Per Assembly, 6 Zerks Per Side
WEEKLY
7100-110
WEEKLY
7100-110
WEEKLY
7100-110
* Pump grease into spindles until grease comes out around seal protector on axles and midwheels.
14. Row Crop Axle
4 Zerks - Both Ends Of Each Pin
4 Zerks - One End Of Each Pin
WEEKLY
7100-110
Zerks are located on inside and
outside of track wheel assemblies.
Outside zerks shown in photo.
