M0238-01 Grain Cart
3-22 5/12
TM
Lubrication and Maintenance
There should be approximately 2" sag in track at midpoint between front and rear end wheels.
1. Lay a straight edge across complete length of track. Measure distance between track and straight edge at
midpoint.
NOTE: It is normal for centering lugs to lightly touch the bottom of channel at top center of track chassis.
2. Loosen four ¾" attachment cap screws on inside sidebar and four ¾" attachment cap screws on outside sidebar
on one end (front or rear) of track assembly.
3. Turn 1" adjusting bolt on end of each sidebar in or out equal amounts according to adjustment needed.
4. Retighten four ¾" cap screws on each sidebar.
5. Lay a straight edge across complete length of track. Measure distance between track and straight edge at
midpoint and repeat steps as needed. It may be necessary to repeat procedure on opposite end of track assembly.
6. Torque hardware to 220 ft-lb (298 N-m).

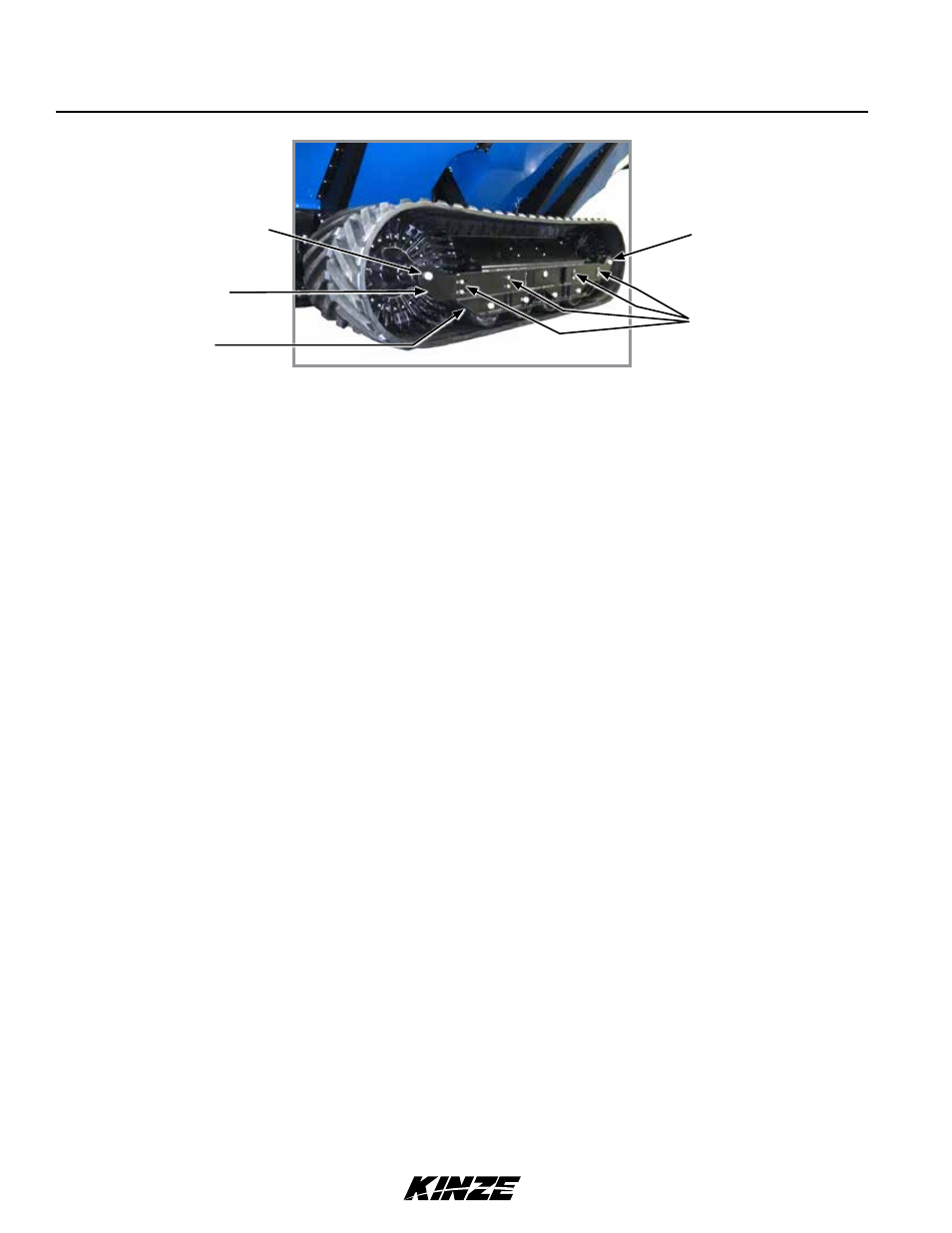

Track tension adjustment
TRACK TENSION
¾ " Cap Screws
1¼ " Spindle Bolt 1¼ " Spindle Bolt
1 " Adjusting Bolt
(Each Side)
Sidebar
