Grain Cart M0238-01
5/12 3-17
Lubrication and Maintenance

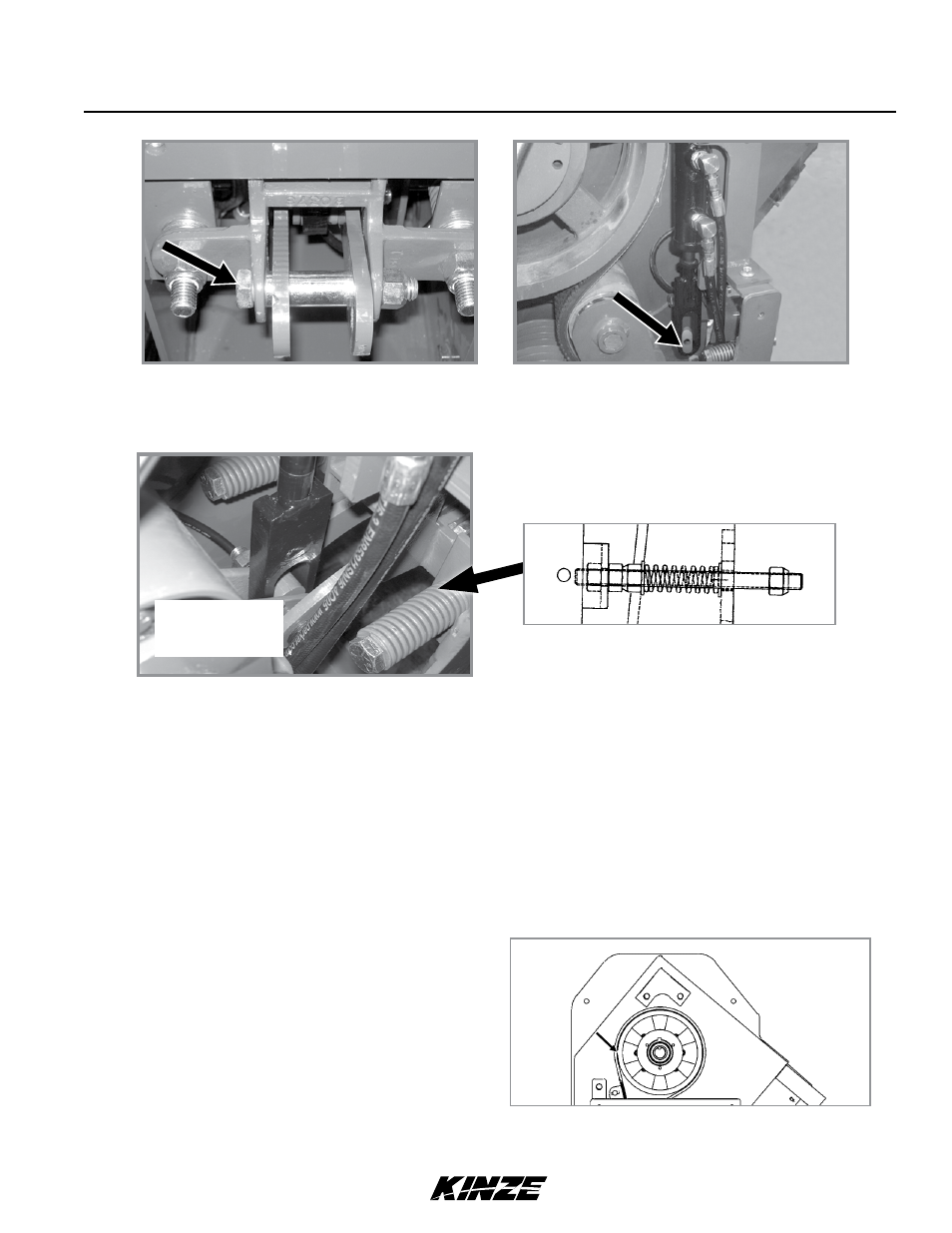

8. Reinstall linkage.
9. Adjust belt slide to within ⅛" of belts when tight.
10. Install all remaining parts removed in previous
steps in reverse order before operating cart.
4. Remove linkage bolt.
5. Push idler assembly away from belt.
⅛ "
6. Check and adjust spring dimension. See “V-Belt Tension Adjustment And Alignment”
NOTE: Replace V-belts as a matched pair.
7. Remove belts and install new belts.
NOTICE
Slide must not contact belts during operation. Do not use belt
dressing on V-belts. Keep all oil and grease off V-belts and belt
pulleys. Low belt tension will reduce V-belt life.
2¾"
Check Spring
Adjustment When
Disengaged
