Model 3140 M0245-01
9/12 2-15
Machine Operation
wINg FLEx
Two hooks located over each wing hinge area can be positioned so toolbar (a) is locked rigid, (b) so planter wings
have 8° up flex or (c) with Wing Down Flex Cylinder Package (See “Wing Down Flex Cylinder”) installed, so planter
wings have 8° up flex and 8° down flex.
To change the hook from one position to the other:
1. Lower the planter to the ground so weight is off of the toolbar and relieve hydraulic pressure in the wing fold cylinders.
2. Remove lynch pin and 6¾" pin.
3. Loosen ¾ " hook mounting hardware and rotate the hooks back off of the hinge pin. (It may be necessary to raise the
outer end of the wing up several inches to take pressure off of the hooks to allow them to rotate.)
4. Remove ½ " x 6" cap screw and sleeve.
5. Remove ¾ " hook mounting hardware.
6. Install hooks in new position. Tighten ¾" hardware.
7. Install sleeve and ½" cap screw in opposite hole.
NOTE: The 3⁄4" hook mounting hardware should be snug, yet loose enough to allow the hooks to be rotated by hand.
8. Install 6¾" pin and lynch pins.
DANgER!
Serious injury or death can result from contact with electric lines. Use
care to avoid contact with electric lines when moving or operating
this machine.
DANgER!
wings must be unfolded before detaching machine from tractor.
wARNINg
Always install hydraulic cylinder safety lockups when servicing the
machine in raised position or when transporting the machine on the
road.

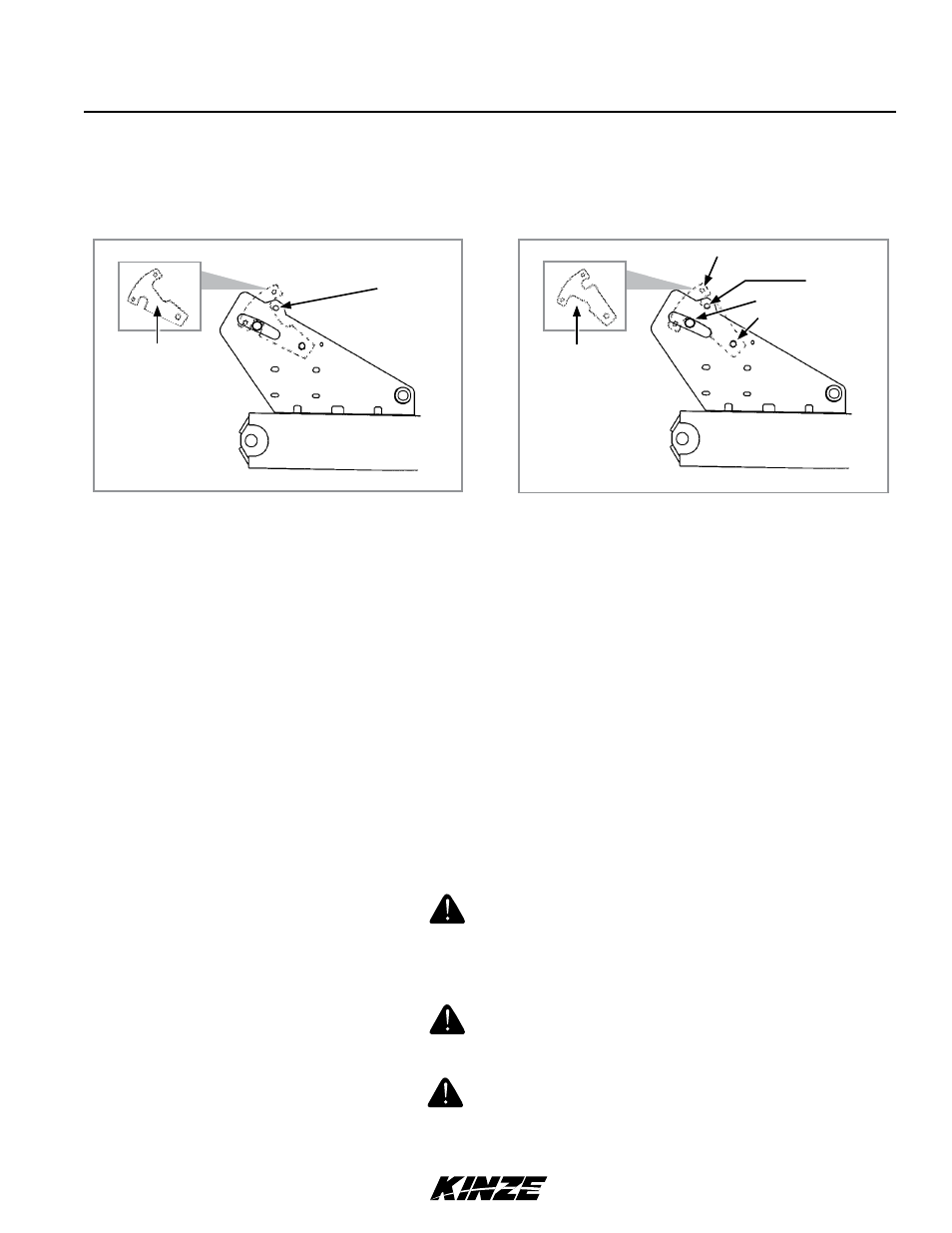

⅝ " x 6¾" Pin
Long Notch Up
Hooks Positioned For Rigid Operation
½ " x 6" Cap Screw And Sleeve
Long Notch Down
Hooks Positioned For 8° Up Flex
⅝ " x 6¾" Pin
1¼" x 11¼" Hinge Pin
¾ " x 2½" Cap Screws
