Kinze 3140 Stack Fold Planter Rev. 7/14 - Manual (Page 138)

M0245-01 Model 3140
6-32 9/12
TM
Lubrication and Maintenance

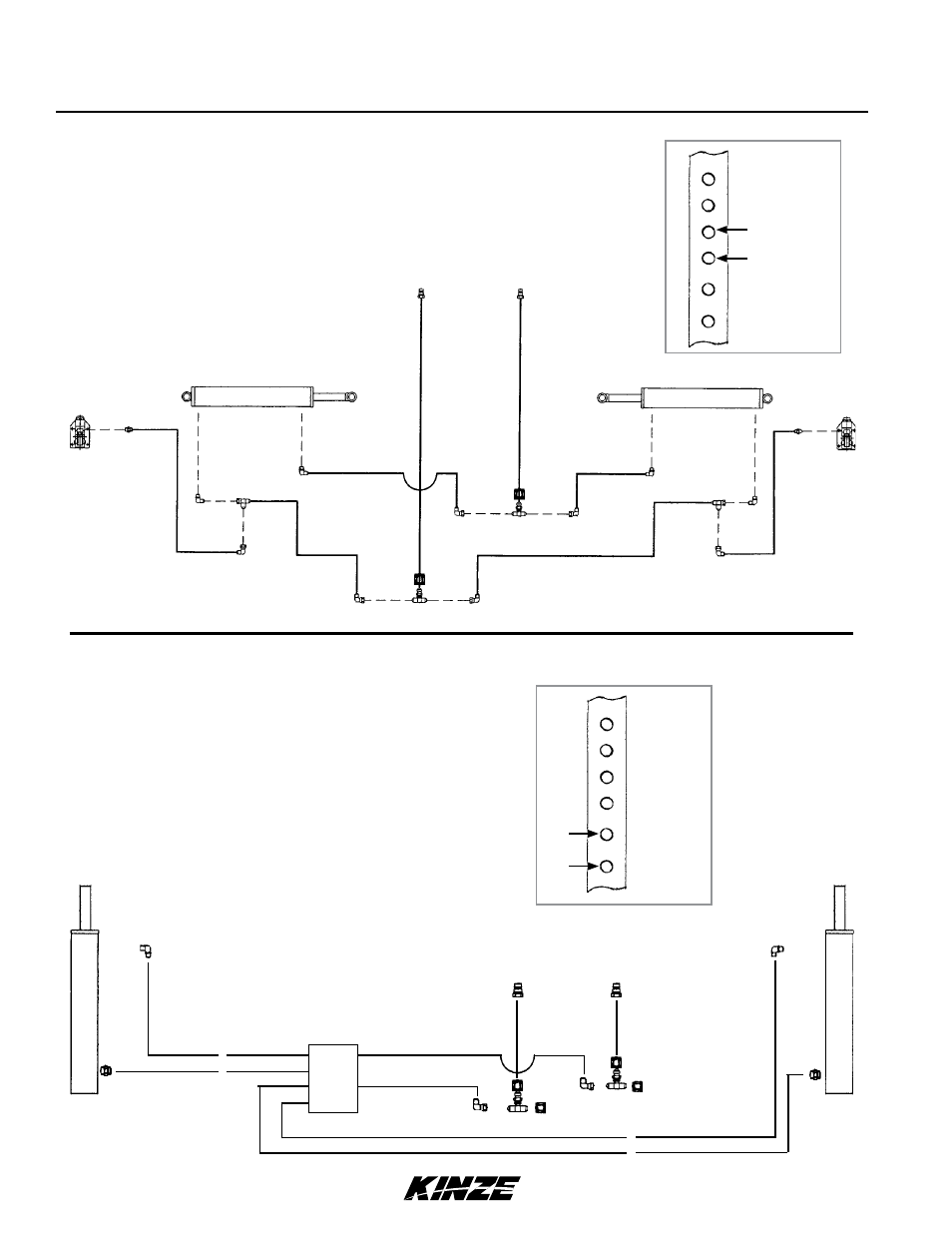

HYDRAULIC SCHEMATIC - FOLD SYSTEM
Tractor Remote Valves
Bulkhead
Mount
Wing Fold Cylinder Wing Fold Cylinder
Hydraulic Hydraulic
Latch Latch
b
A
A
b
Bulkhead
Mount
Row Marker Row Marker
Cylinder Cylinder
Tractor Remote Valves
Marker Sequencing/
Flow Control Valve
b
A
A
b
R1 1
C1
C2 2
R2
HYDRAULIC SCHEMATIC - ROw MARKER SYSTEM
