Kinze 3140 Stack Fold Planter Rev. 7/14 - Manual (Page 112)

M0245-01 Model 3140
6-6 9/12
TM

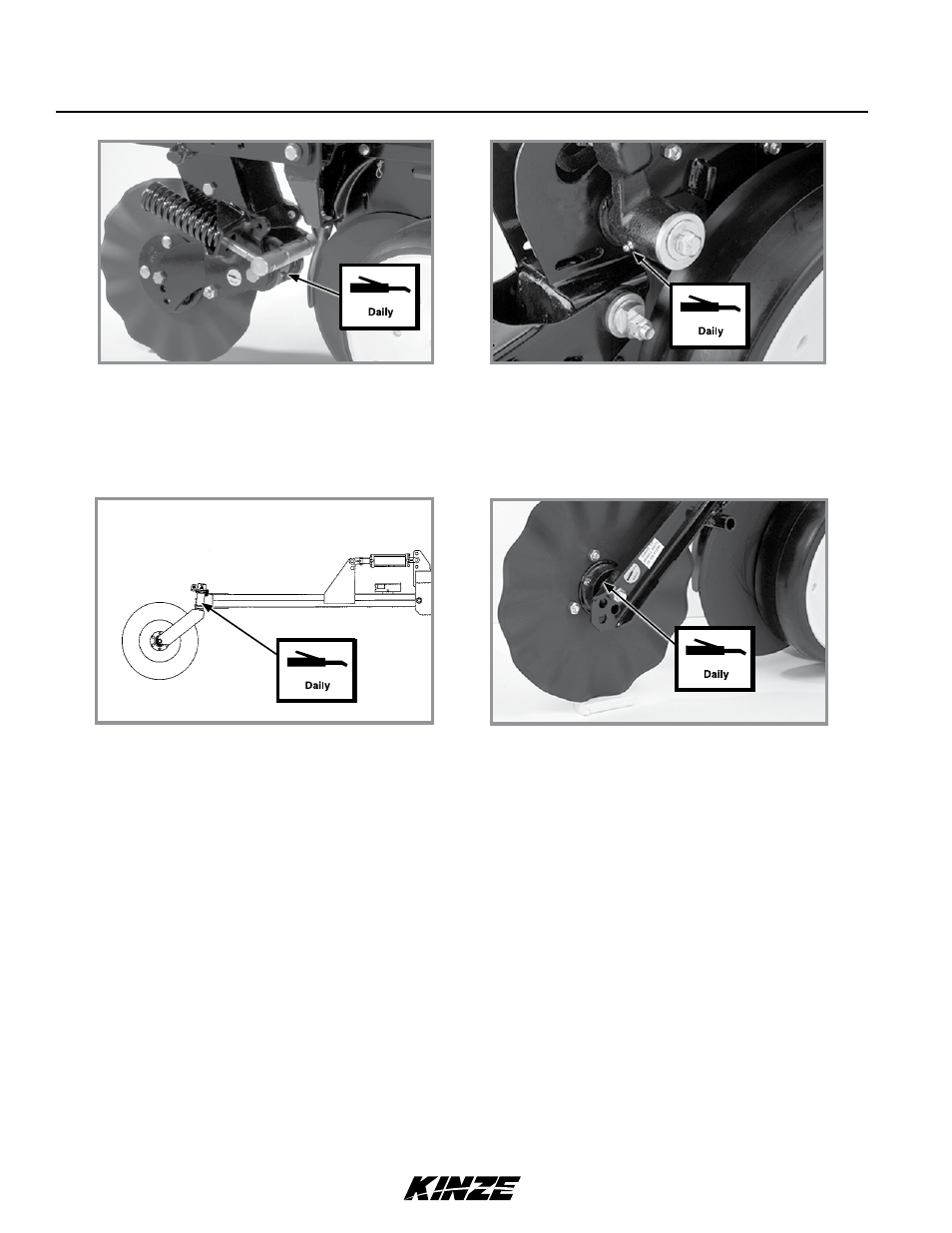

Lubrication and Maintenance
Lift Assist Arm - 1 Zerk Per Arm
Frame mounted Coulter - 1 Per Arm gauge wheel arms - 1 per arm
(Seals in gauge wheel arm are installed with
lip facing out to allow grease to purge dirt away
from seal. Pump grease into arm until fresh
grease appears between washers and arm.)
(If Applicable) Row Unit Mounted No Till Coulter
Hubs- 1 Zerk Per Hub
(Pump grease into hub until grease comes out
around the seals. Spin hub while filling with
grease.)
