Lubrication and Maintenance
Plunger
Solenoids
Plungers
Input Hub
Spring
Actuator Arm
Stop Collars
Output Hub
Wrap Spring
Wrap Spring
SINgLE AND TwO-SPEED POINT ROw CLUTCH MAINTENANCE
Point row clutch is permanently lubricated and sealed and requires no periodic maintenance. Two-speed point row clutch
is similar in design and operation to standard point row clutch except for two-speed function.

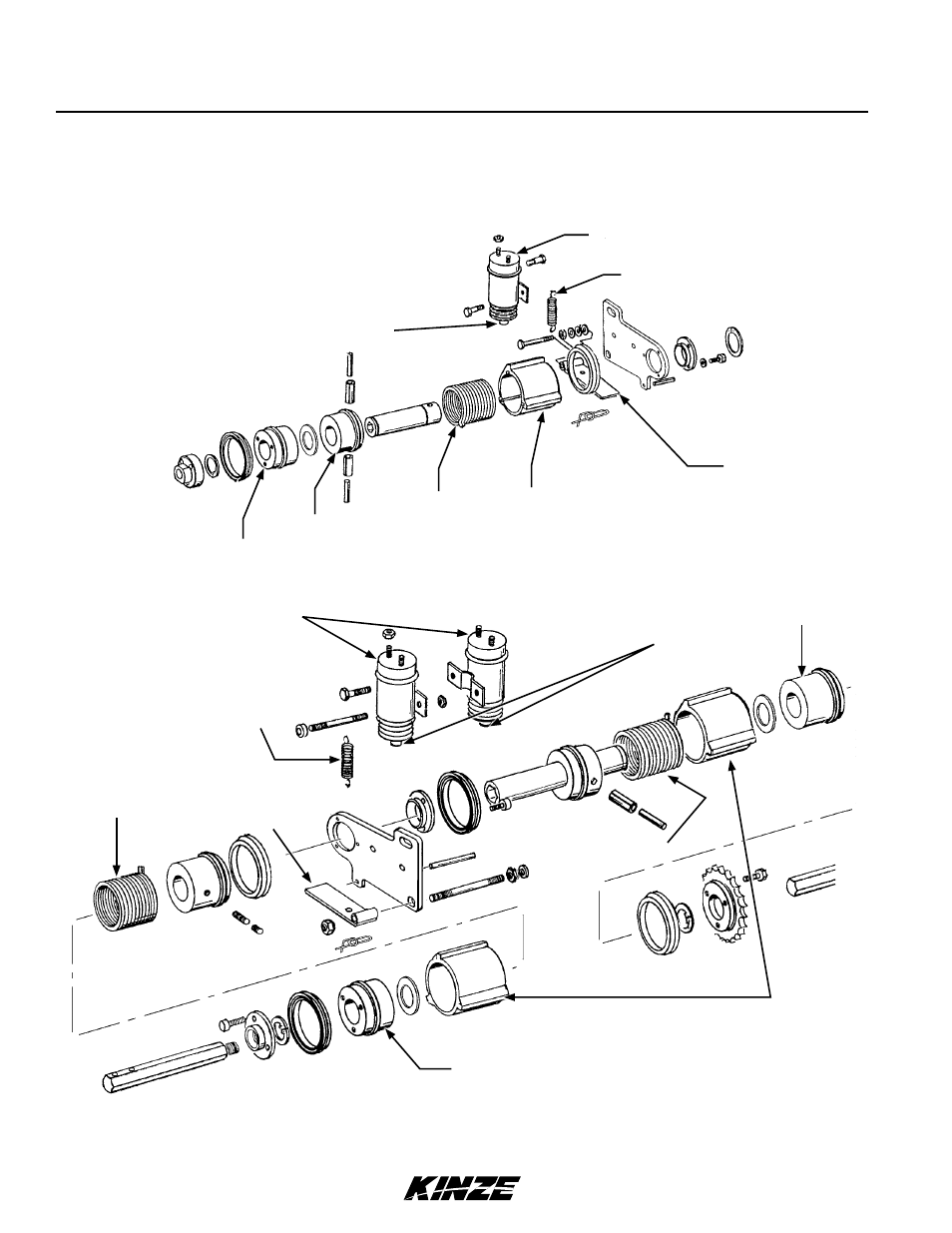

Single point row clutch main parts
Two-speed point row clutch main parts
Solenoid
Spring
Actuator Arm
Stop Collar Wrap Spring
Output Hub
Input Hub
