M0245-01 Model 3140
2-12 9/12
TM
Machine Operation
HYDRAULIC OPERATION
EdgeVac
Planter may require up to four selective control valves (SCV). A single SCV is needed to fold the wings; a second SCV
and case drain is required for operation of the EdgeVac seed metering system; a third SCV is required for the Row
Marker Package; and a fourth SCV is required for the Dual Lift Assist Wheel Package and/or the Wing Down Flex
Cylinder Package unless these are connected into the tractor 3 point lift system.
Mechanical
Planter requires a single control valve for folding the wings. A second control valve is required for the Row Marker
Package. A third valve is required for the Dual Lift Assist Wheel Package and/or the Wing Down Flex Cylinder Package
unless these are connected into the tractor 3 point lift system.
DANgER!
To avoid serious injury or death, care must be taken when operating
row markers around overhead power lines.
DANgER!
If a cylinder has been disconnected or removed for any reason, do not
attach the rod end of the cylinder until the cylinder is cycled several
times to remove any air that may be trapped in the system.
The wings are folded and unfolded using a single hydraulic control valve. When the wings are unfolded, the spring-
actuated hydraulic latches lock the wings to the fold links so they pivot as one unit.
NOTICE
Always be sure planter is in the fully raised position before folding
the planter wings to ensure wing row units do not collide with center
section seed hoppers.

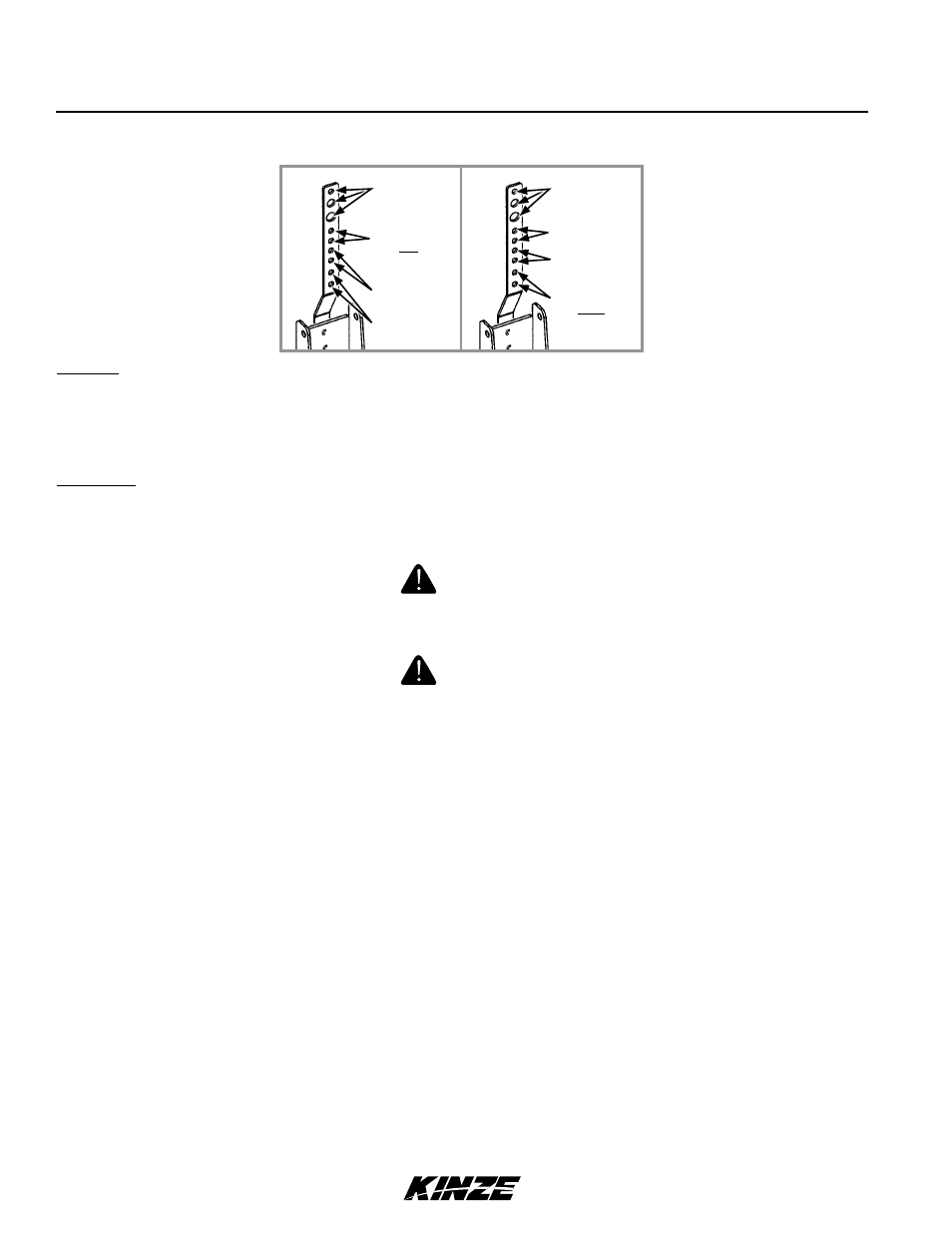

EdgeVac Seed
Metering
Wing Down
Flex
OR
Dual Lift Assist
Wing Fold
Marker
EdgeVac Seed
Metering
Marker
Wing Fold
Wing Down
Flex
AND
Dual Lift Assist
