33

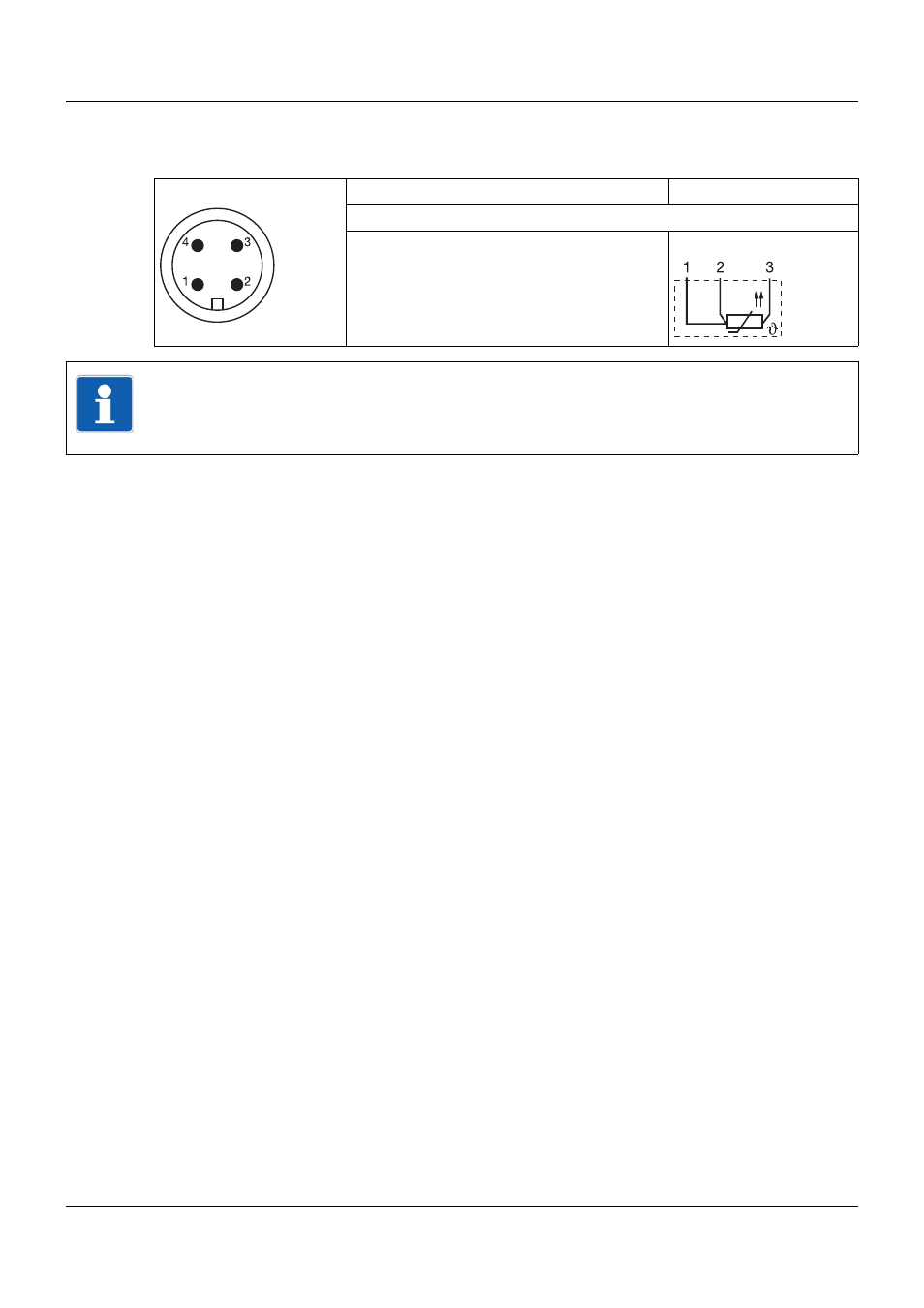

6 Connection diagram
6.1 Machine connector M 12x1, 4-pin as per IEC 60947-5-2
Electrical connection Connection assignment
Basic type 902930/50 and 902930/60
RTD temperature probe
in 3-wire circuit (input)
TIP!
For a safe, interference free device operation, only connect shielded
measuring inserts with shielded cables and connected shielding on both sides (shielding con-
nected to sheath and to machine connector M 12).
