JUMO 707020 dTRANS T02 - Four-Wire Transmitter Data Sheet - Manual (Page 11)

2014-08-08/00379095
Data Sheet 707020 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 11/12

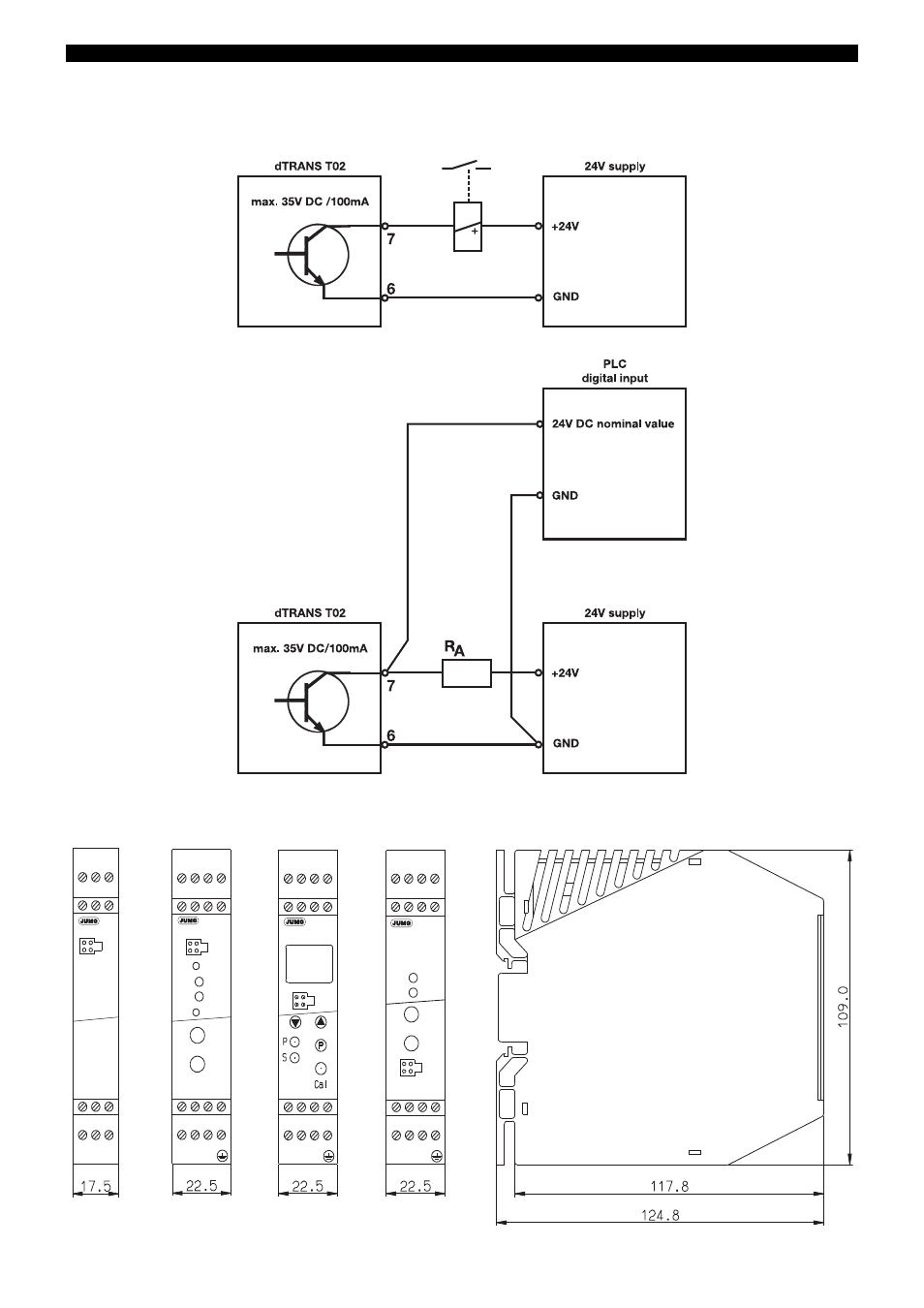

Connection example for the open-collector output
Connection of a relay
Connection of a PLC
Dimensions
dTRANS T02j
1 2 3
4 5 6
7 8 9
L+ L- 12
dTRANS T02 PCP
Test +
Power
Status
Test
Span
Zero
1 2 3 4
5 6 7 8
9 10 11 12
L1 N 15 PE
(L+) (L-)
1 2 3 4
5 6 7 8
9 10 11 12
L1 N 15 PE
(L+) (L-)
dTRANS T02 LCD dTRANS T02 Ex
Status
Span
Zero
Power
1 2 3 4
5 6 7 8
9 10 11 12
L1 N 15 PE
(L+) (L-)
Type 707020/... Type 707021/... Type 707022/... Type 707025/...
