Data Sheet 707020 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 10/12

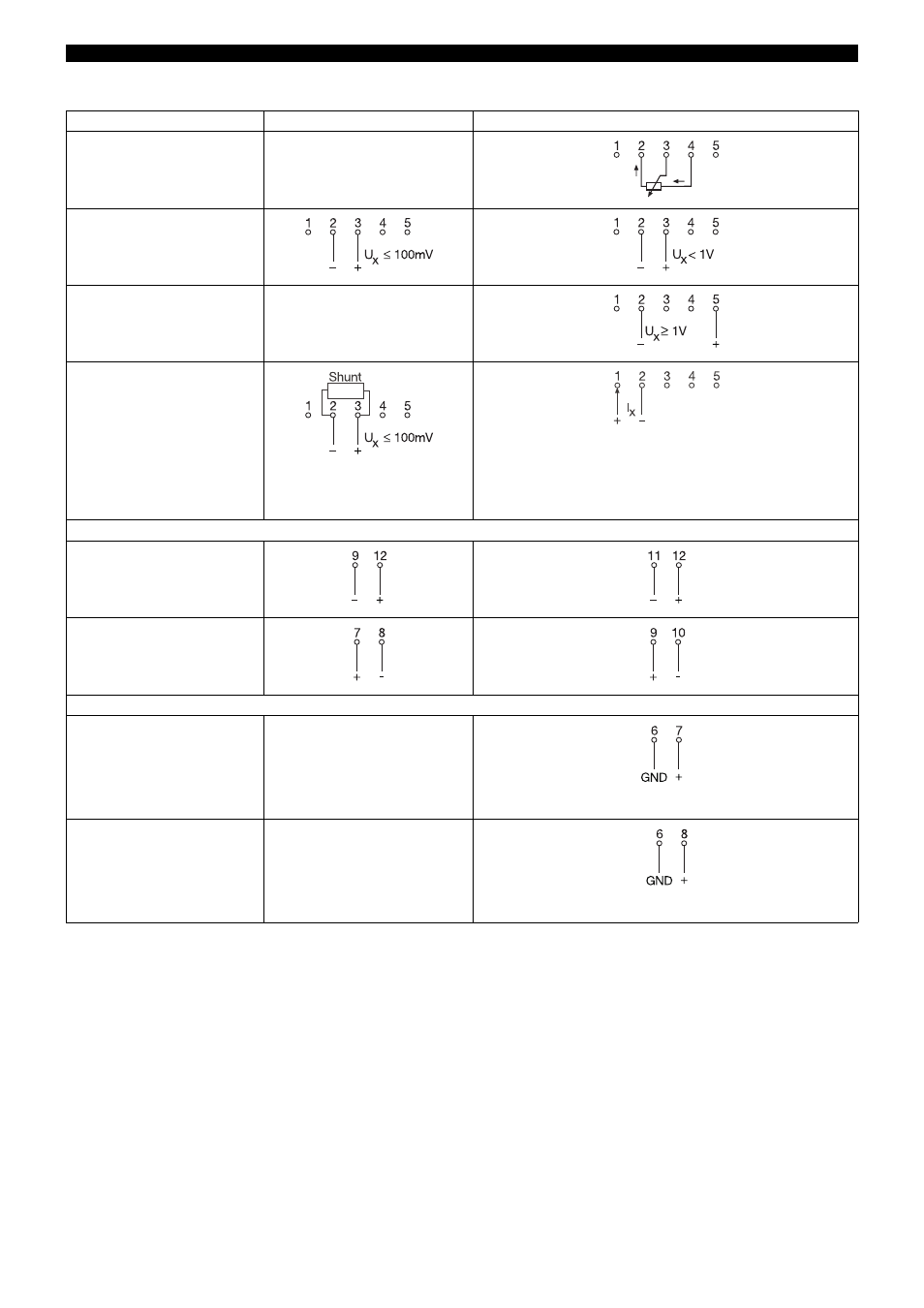

Resistance transmitter
in 3-wire circuit not possible
Voltage input
 1V
Voltage input
 1V
not possible
Current input
The voltage drop on the shunt a
must not exceed
100mV
Analog outputs
Voltage output
Current output
Digital outputs
Open-collector output 1 not possible
not possible on type 707025/...
b
Open-collector output 2 not possible
not possible on type 707025/... b
a
When using a shunt resistor, the signal leads and the shunt must be provided with a crimp connector.
b
On type 707025/... the limits are indicated only via the status and power LEDs.
Type 707020/... Type 707021/..., Type 707022/... and Type 707025/...
