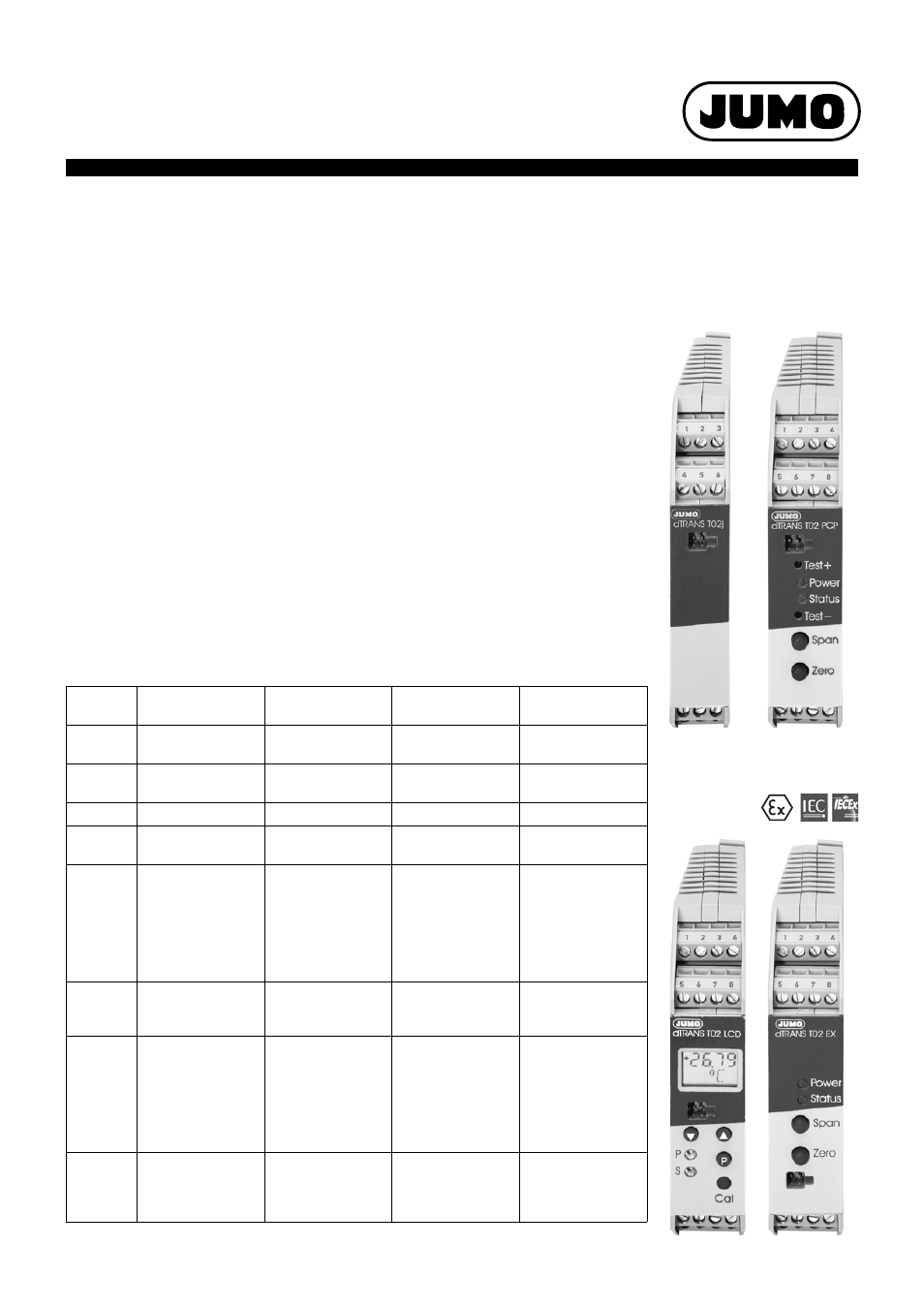

JUMO dTRANS T02
Programmable 4-wire Transmitter
(Smart Transmitter)
with isolation of the standard signal
for mounting on DIN rail 35mm x 7.5mm to EN 60715
Brief description
The JUMO dTRANS T02 transmitters incorporate a microprocessor for digital signal pro-
cessing. Input and output are electrically isolated. They can be mounted on a DIN rail, the
electrical connection is by screw terminals for stranded or solid wire up to 2.5mm² con-
ductor cross-section.
Depending on the type, the 0/4 — 20mA or 0/2 — 10V output signal is available either lin-
earized (linear with temperature) or inverted (option). The transmitters can be programmed
via the PC setup program, which is supplied as an accessory (sensor type, range, output
action, fine calibration, custom linearization).
On types 707021/... and 707022/... it is possible to additionally program the limits of the
limit comparators, and the frequency output.
Current and voltage outputs are available directly on terminals. No hardware alterations
are required.
Overview of function
dTRANS T02j (junior)
Type 707020/...
dTRANS T02 PCP
Type 707021/...
dTRANS T02 LCD
Type 707022/...
dTRANS T02 EX
Type 707025/...
Housing
width
17.5mm
22.5mm
22.5mm
22.5mm
Display
none
2 LEDs
2 LEDs and
LCD display
2 LEDs
Keys
none
2 keys
3 keys
2 keys
Supply
24V DC
20 — 53V AC/DC
110 — 240V AC
20 — 53V AC/DC
110 — 240V AC
230V AC
20 — 53V AC/DC
Inputs
thermocouple,
resistance
thermometer
(restricted),
potentiometer,
voltage (
100mV),
current with ext. shunt
thermocouple,
resistance
thermometer,
resistance transmitter,
potentiometer,
voltage (up to ±10V),
current (up to ±20mA)
thermocouple,
resistance
thermometer,
resistance transmitter,
potentiometer,
voltage (up to ±10V),
current (up to ±20mA)
thermocouple,
resistance
thermometer,
resistance transmitter,
potentiometer,
voltage (up to ±10V),
current (up to ±20mA)
Outputs
0/4 — 20mA,
0 — 10V
0/4 — 20mA,
0/2 — 10V,
2 open-collector
0/4 — 20mA,
0/2 — 10V,
2 open-collector
0/4 — 20mA,
0/2 — 10V
Internal
linearization,
customized
linearization
linearization,
customized
linearization,
2 limit comparators or
1 limit comparator and
1 frequency output
linearization,
customized
linearization,
2 limit comparators or
1 limit comparator and
1 frequency output
linearization,
customized
linearization
2 limit comparators
(indication only via the
power and status
LEDs)
Operation
fine calibration via
setup program
fine calibration and
limits via
instrument keys and
setup program
fine calibration and
limits via
instrument keys and
setup program
fine calibration via
instrument keys and
setup program
