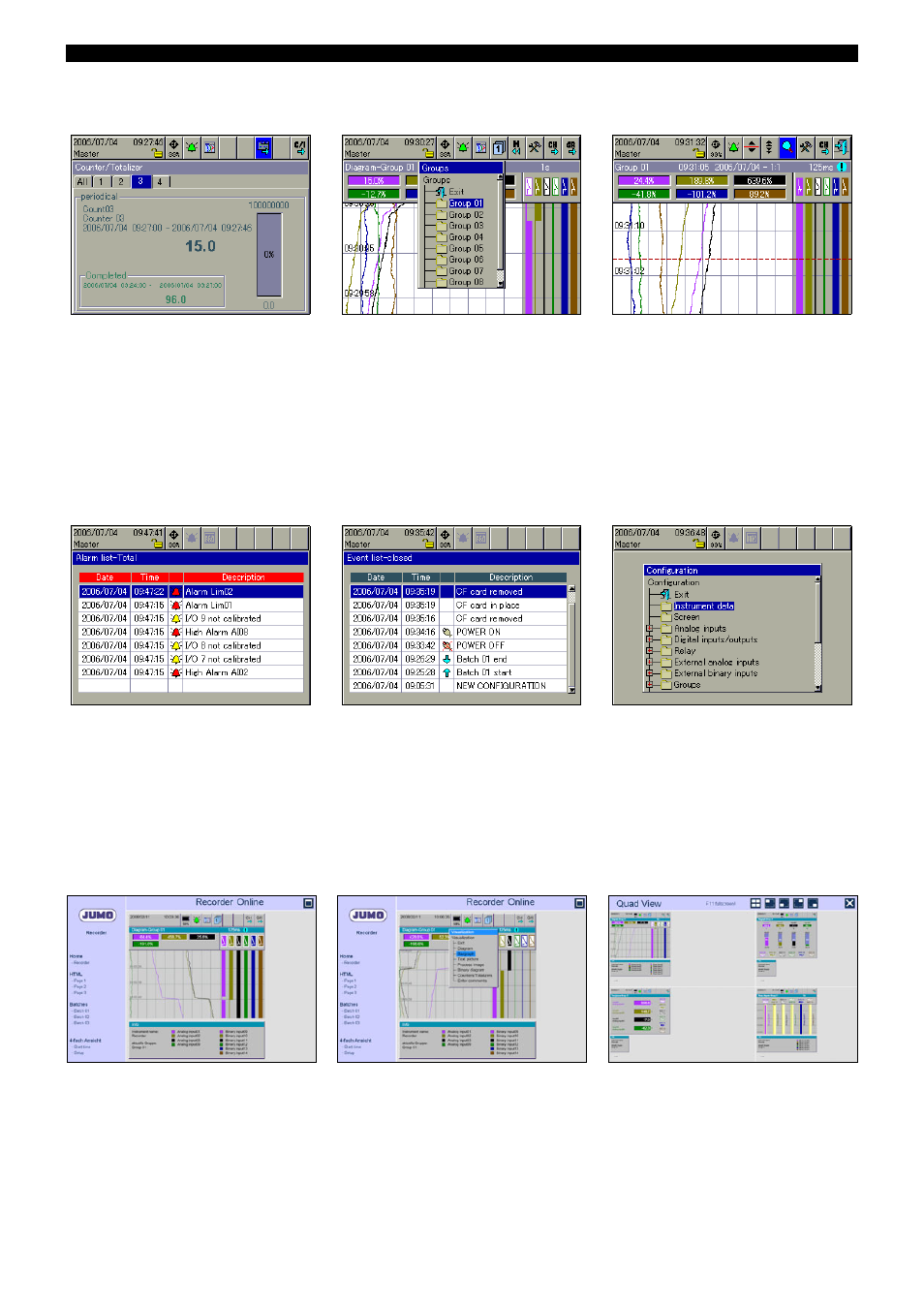

Visualization through the web browser
Counter/integrator presentation
k Presentation of up to 27 counters or
integrators
k Changeover between individual and
overall display
k Display of the current and the most
recently completed count
Group selection
k Up to 9 groups are configurable
k Up to 6 analog and 6 binary channels
can be shown for each group
k Measurement signals can be used
in several groups
History presentation
k All stored measurement data are shown
as curves at different zoom levels
k Display of scaling and
limit markers of a channel
k Numerical display of the measurements
of the analog channels at the cursor
position
k Shifting of the visible section within the
stored measurement data
Presentation of alarm lists
k Display of current alarms
k For the instrument as a whole
or batch-related
k Up to 150 entries visible on the
recorder
Presentation of event lists
k Display and storage of events
and alarms
k For the instrument as a whole
or batch-related
k Up to 150 entries visible on the
recorder
Configuration
k Configuration on the recorder itself, by
rotating and pressing the control knob
k Configuration through the setup
program
k Online visualization of a recorder
k Selection of (max.) three customized
HTML pages (created on request)
k Navigation through the different
recorder visualizations (curves, bar
graph, text, process, ...)
k Max. four recorders or four different
visualizations simultaneously
