Operation and
configuration
On the recorder

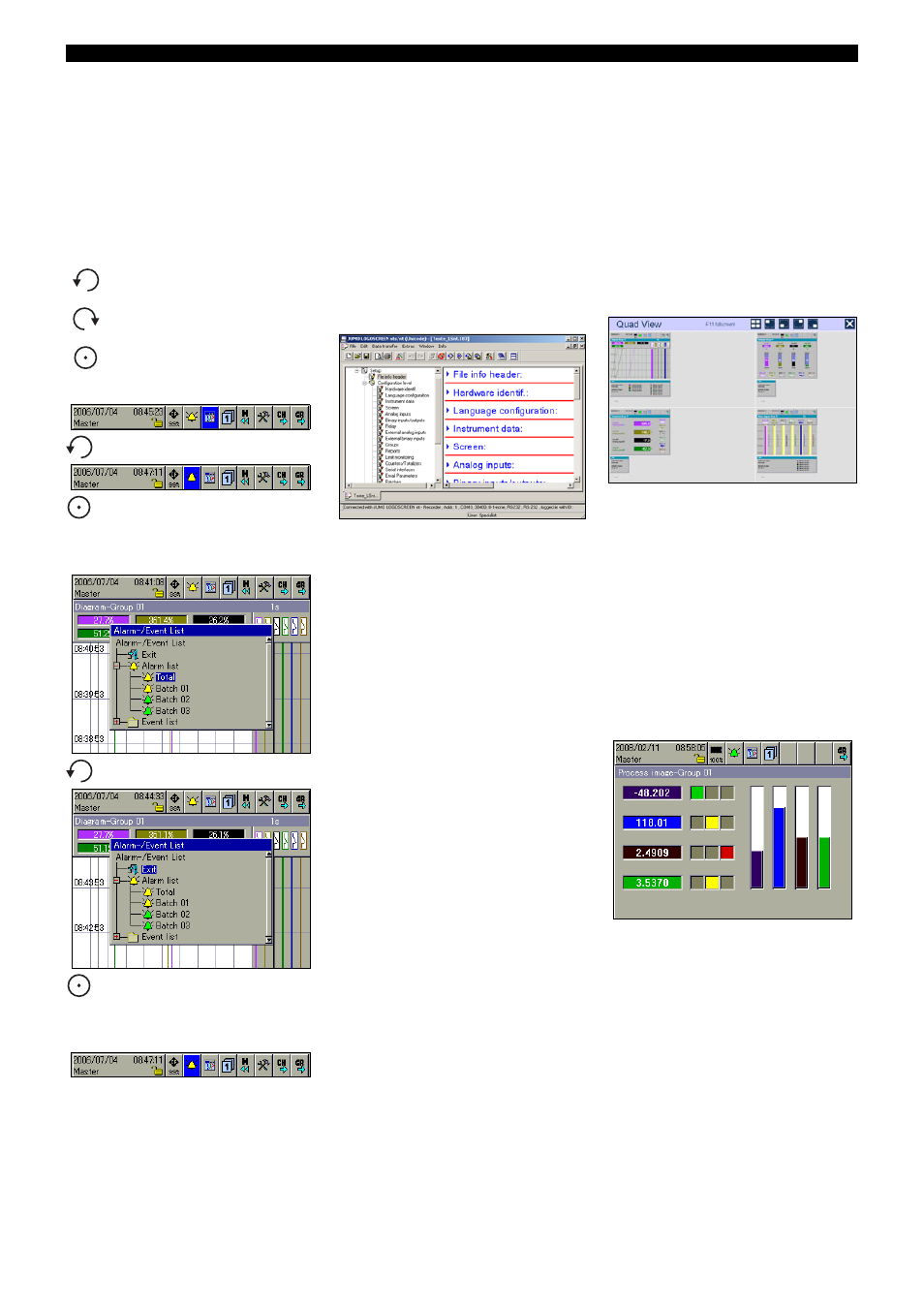

The instrument is configured from the
control knob (or with stainless steel front,
from the touchpad) on the front panel
under menu guidance.
Example:
Rotate control knob to the left.
Press control knob.
Result: The menu for the alarm and event
list is called up.
Rotate control knob to the left.
Press control knob.
Result: The menu for the alarm and event
list is closed again.
H
Integrated user lists (different users
with different authorizations) protect the
recorder against unauthorized access.
Shift current menu position
(cursor) to the left or upwards.
Shift current menu position
(cursor) to the right or downwards.
When the control knob is pressed,
the current function is executed.
Through the setup program
As an alternative to the configuration from
the control knob on the recorder, the
instrument can also be configured through
the setup program.
Communication between the setup
program and the paperless recorder is
made through the:
- USB device interface,
- serial interface,
- Ethernet interface,
- CompactFlash memory card or
- USB memory stick.
The configuration data can be archived on
a data storage medium and output to the
printer.
Operating language
Two languages (see order details) are
integrated in the instrument ex-factory. The
setup program is used to exchange the
operator language.
The languages available at the moment
are: English, French, German, Russian,
Japanese, Chinese, Italian, Romanian,
Czech, Hungarian, Polish and Greek.
Other language versions (with Unicode
capability) can be created.
Web server
The web server is integrated in the
paperless recorder as standard. Four
different modes of presentation are
available:
-
online visualization
- three freely programmable HTML pages
- current batch reports
- 4-way view (1 to 4 recorders or different
visualizations)
On the PC side, the web server can be
addressed with the (Microsoft®) Internet
Explorer. For visualizing graphics, an SVG
Viewer (from Adobe®, for instance) must
be installed on the PC in addition to the
Internet Explorer.
Process images (editor)
The setup program can create process
images and transfer them to the paperless
recorder for display. Up to 25 objects
(images, analog channels, binary channels,
texts, ...) can be used in a process image.
One process image is integrated in the
paperless recorder ex-factory.
