Data Sheet 70.6581 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 10/18

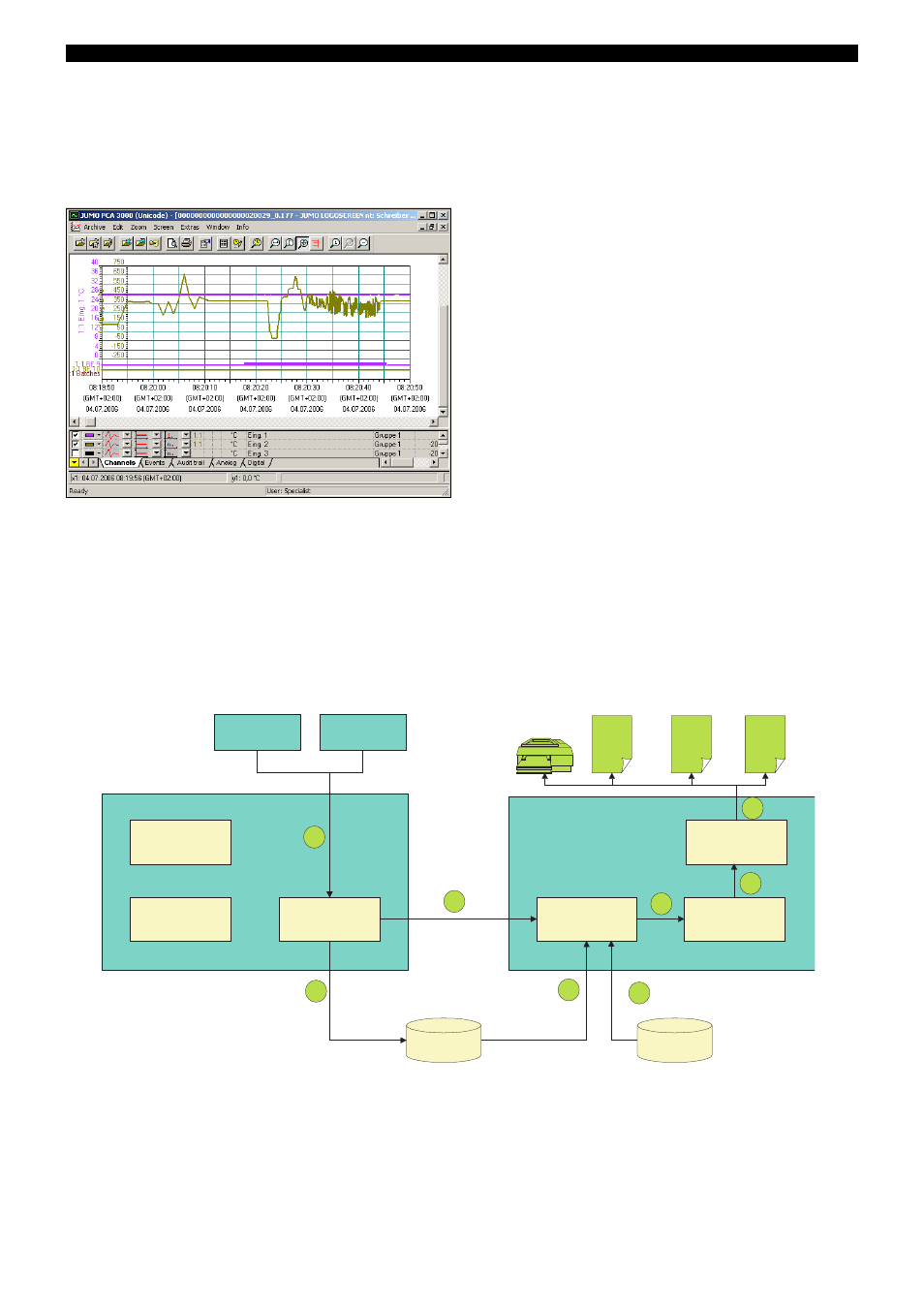

PC programs
PC Evaluation Software (PCA3000)
The PC Evaluation Software (PCA3000) is a program which runs under Windows 2000/XP, and is used to manage, archive, visualize and
evaluate the recorder data.
PCA Communications software (PCC)
k Data can be read out from the recorder via the USB device interface, the serial interface (RS232/RS485) or via the Ethernet interface.
The data can be read manually or automatically (e.g. daily at 23.00 hrs).
k Data can also be retrieved via remote control, through a modem.
Functional overview
k The data from differently configured instruments are recognized
by the PC Evaluation Software and stored in an archive
database. All management is fully automatic. The user only has
to manually allocate an identifier (supplementary description).
k The user can at any time gain access to certain data sets which
can be distinguished by the identifier. It is also possible to
restrict the time periods to be evaluated.
k Any analog or binary channels of a paperless recorder (even
from different groups) can subsequently be combined into PCA
groups in PCA3000.
k Since each group is displayed in a separate window, several
groups can be shown simultaneously on the screen and
compared.
k Operation by mouse or keys.
k Using the export filter, it is possible to export the stored data,
so that they can be processed in other programs such as Excel.
k The PC Evaluation Software PCA3000 has network capability,
i.e. several users can obtain data from the same archive file
(*.177) in a network directory, independently of each other.
5
Print template
3
8
1. Retrieve measurement data from the recorder.
2. Store measurement data in archive files (*.177).
3. Activate "automatic printout" in PCA3000.
The print template is selected within PCC.
4. Read the print template. Print templates are created within PCA3000.
5. Data transfer from archive.
6. Determine the content defined in the print template.
7. Use the determined content in the defined design.
8. Output the completed design in the defined formats.
JUMO PCA3000
Design
Automatic
printout
*.xml *.csv
JUMO PCC
Logoscreen nt Logoscreen nt
Running as a
Windows service
Teleservice
Measurement
data readout
1
2
CW1..52.177
4
*.pdf
6
7
Content
