JUMO 706581 LOGOSCREEN nt Data Sheet - Manual (Page 16)

2009-12-11/00504652
Data Sheet 70.6581 JUMO GmbH & Co. KG • 36035 Fulda, Germany Page 16/18

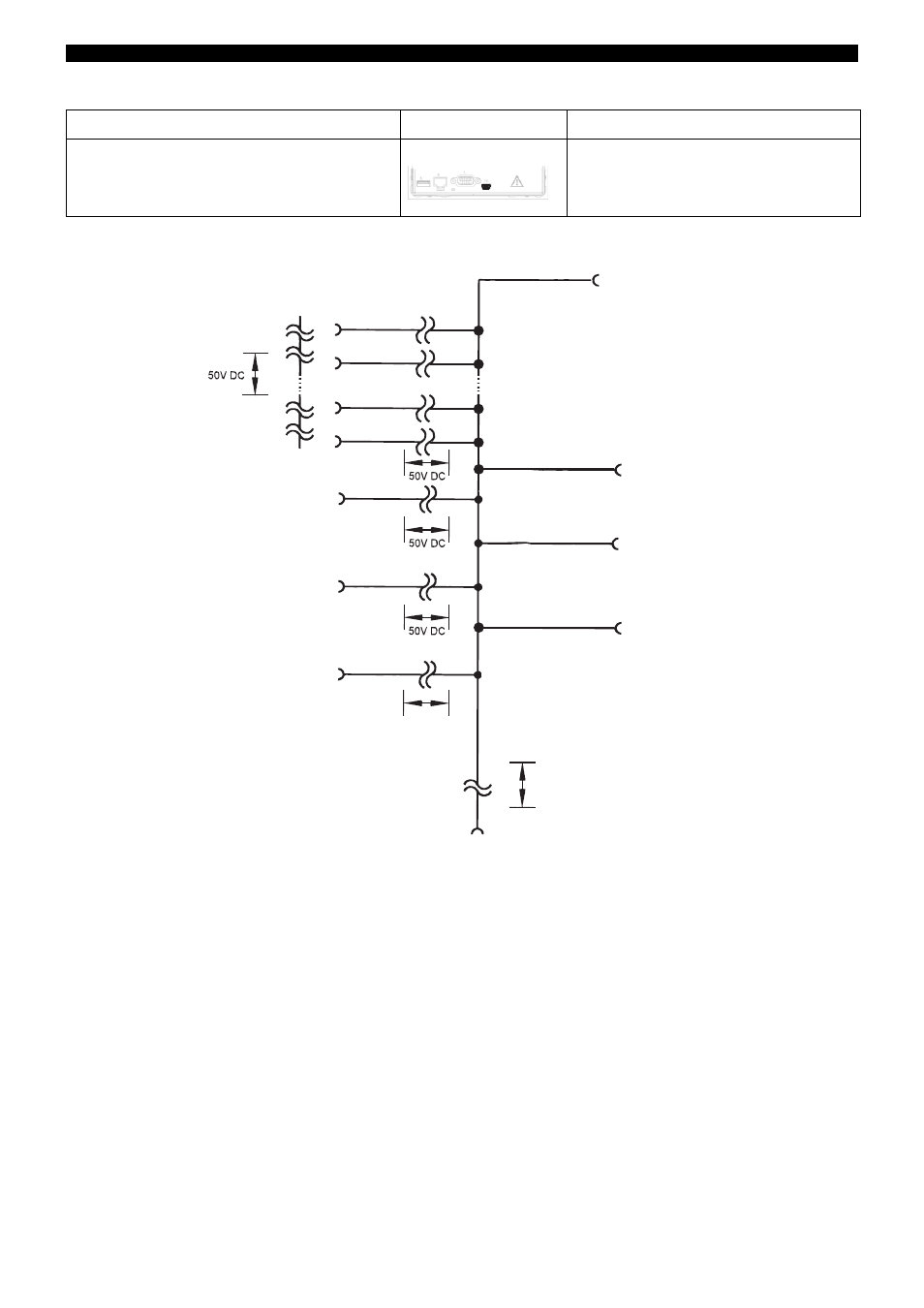

Overview of the electrical isolation
USB host interface
for connecting a PC Connector 15 The recorder without stainless steel front also
has a USB device interface on the front panel,
connected in parallel. The two interfaces
cannot both be operated at the same time.
Terminal assignment Connector Diagram
5.
6. 7.
15. 15.
Binary
inputs/outputs
Ethernet
interface
Relay
contacts
Test voltage
contacts to
relay coil
2.3kV AC
Test voltage
AC supply: 2.3kV / 50Hz
AC/DC supply: 2.3kV / 50Hz
RS232 for
barcode reader
Supply
AC or AC/DC
Serial interface
RS232 / RS485
CompactFlash
memory card
USB
interfaces
Analog input 1 — 18
