12
tina48e1-b (2008-10) MPG400-401.om
Make sure the vacuum connection is properly made ( → 9).

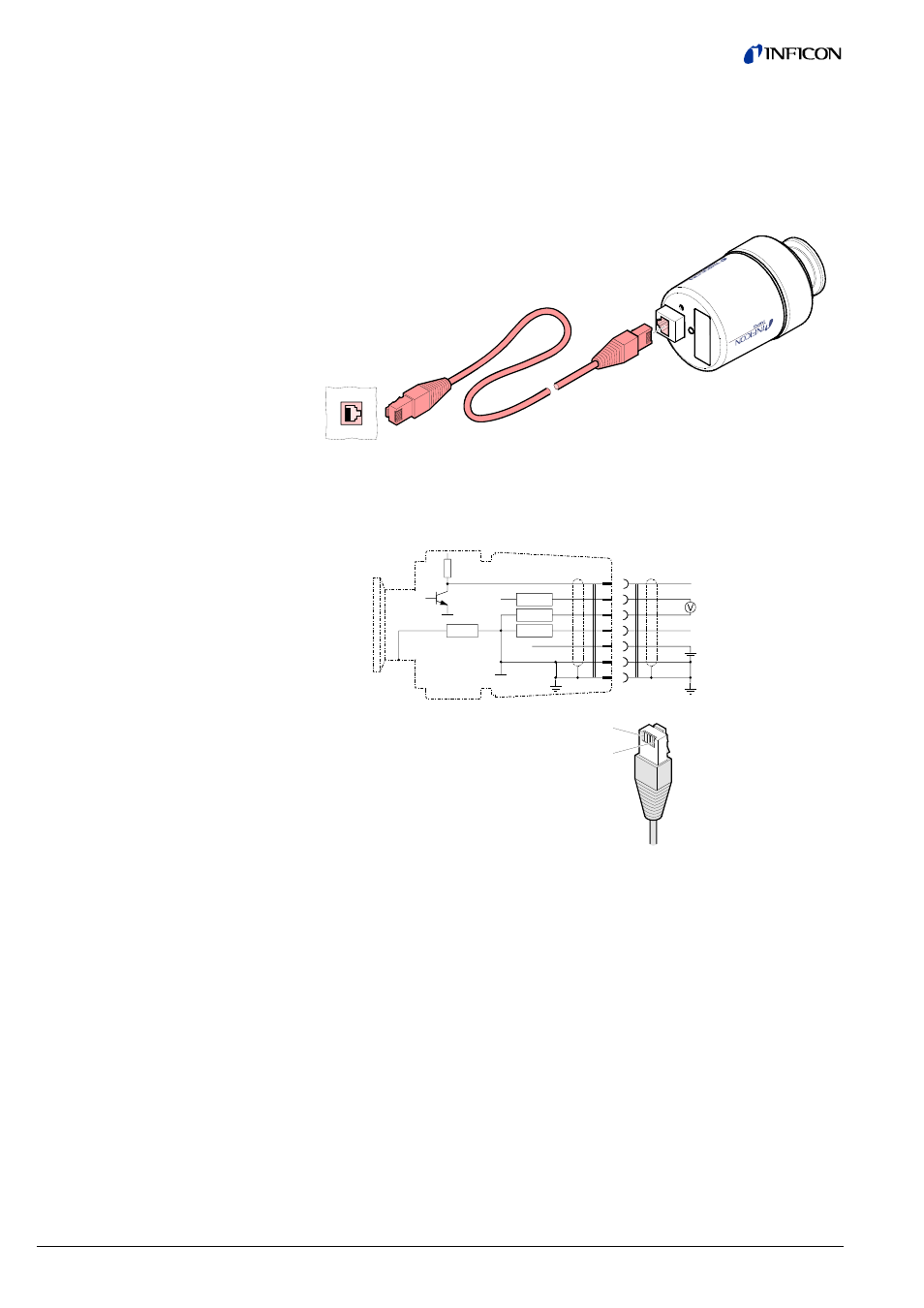

Connect the sensor cable to the gauge and the controller.
Make a sensor cable according to the diagram.
Electrical connection
Pin 1
Supply (15 … 30 VDC)
Pin 2 Supply common
Pin 3 Signal output
(Measuring signal)
Pin 4 Identification
Pin 5 Signal common
Pin 6 Status
Pin 7, 8 n.c.
FCC68, 8 poles
connector
1
8
10
10
Ident
3
5
4
1
2
–
+
–
+
6
10 k
Signal
Connect the sensor cable to the gauge and the controller.
3.2 Electrical Connection
Precondition
3.2.1 Use With an INFICON
Controller
3.2.2 Use With Another Control
Device
