INFICON MPG40x ATM to Ultra-High Vacuum Gauge User Manual
Page 10
10
tina48e1-b (2008-10) MPG400-401.om
The gauge may be mounted in any orientation. To keep condensates
and particles from getting into the measuring chamber preferably
choose a horizontal to upright position and possibly use a seal with a
centering ring and filter.
If adjustment should be possible after the gauge has been installed, be
sure to install it so that the
can be accessed with a screw driver (
→ 16).

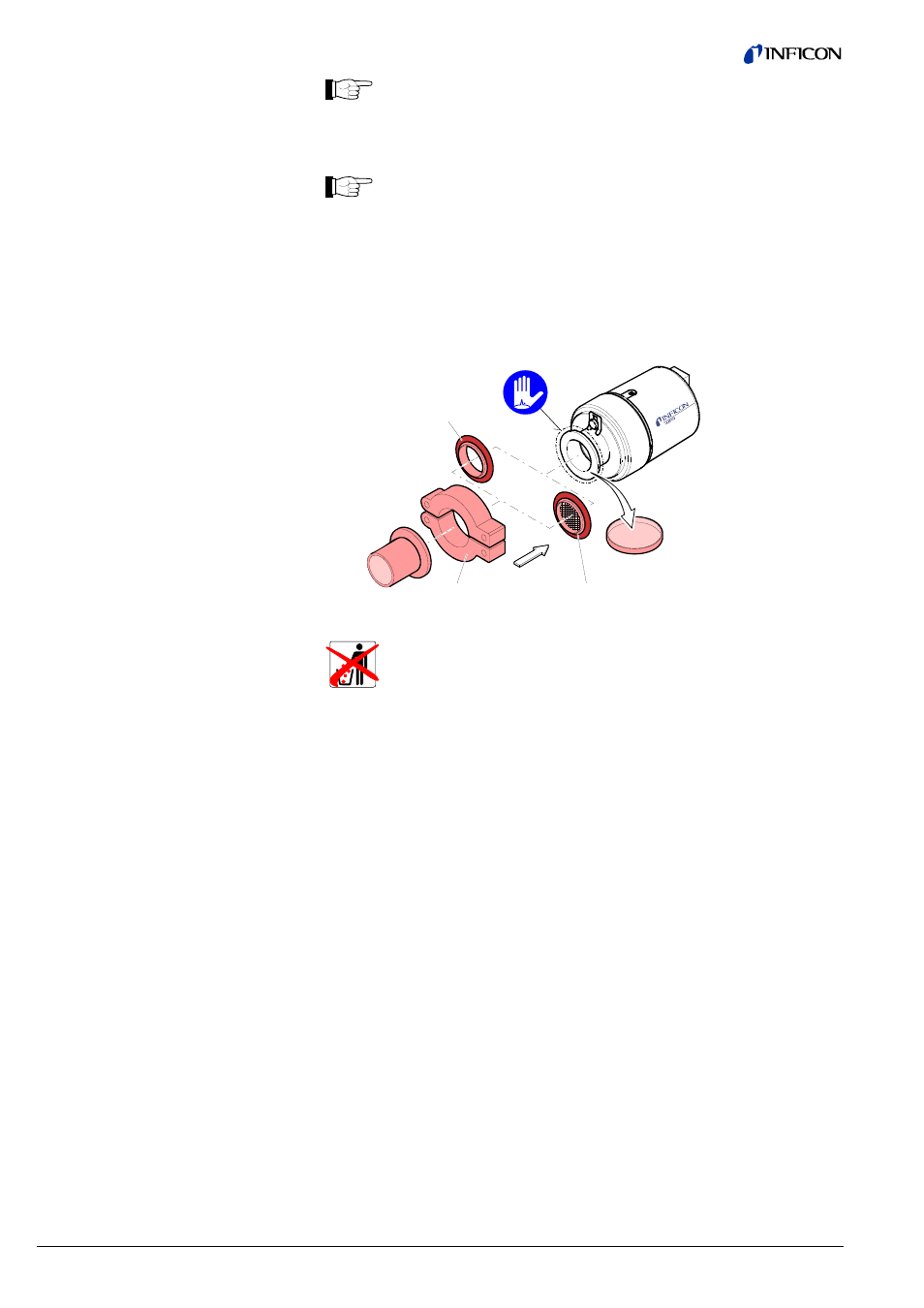

Remove the protective lid and install the product to the vacuum system.
When making a CF flange connection, it may be advantageous to temporarily
remove the magnet unit (
→ 11).
or
Protective lid
Clamp
Seal with centering ring
Seal with centering
ring and filter
Keep the protective lid.
Procedure
