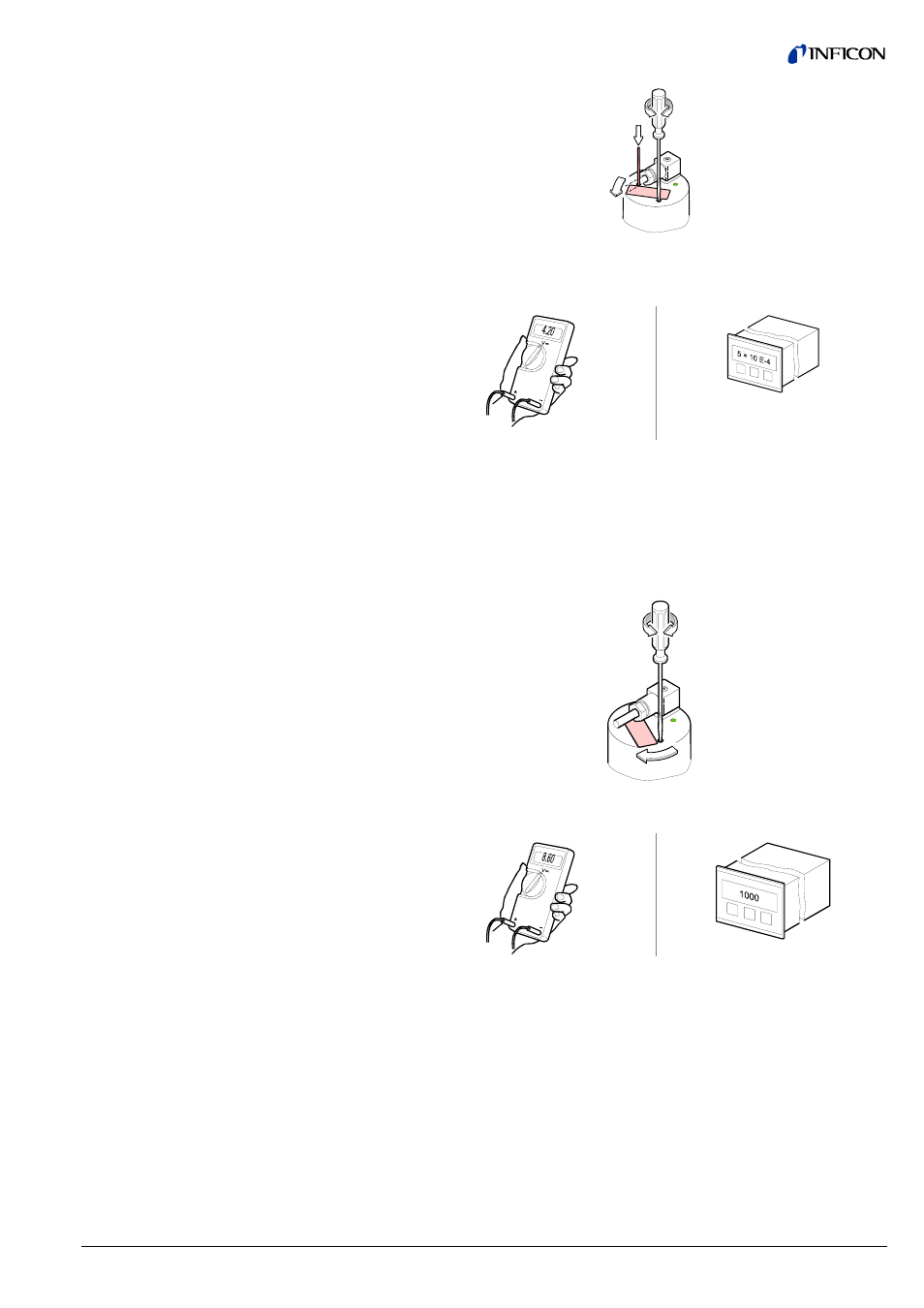

While depressing the pin with the cylindrical pin, adjust the
potentiometer …
… to 4.20 V
or
… to 5×10
-4
mbar.
After that, turn the potentiometer
counter-clockwise by 1/3 of a turn.
Vent the gauge with air or nitrogen to atmospheric pressure, and wait at
least 10 minutes.
Turn the nameplate clockwise until the mechanical stop is reached.
Using the 1.5 mm screwdriver, adjust the
… to 8.60 V
or
… to 1×10
3
mbar.
Turn the nameplate back to its original position (it catches).
