98

Maintenance works

iina

74

e 0

9

.f

m

te

chn

ica

l ha

nd

boo

k

(1

40

8)

9.8

Replacing the Exhaust Silencer

Required material

Exhaust silencer P/N 20099183

Switch off the UL5000.

Unscrew the exhaust filter from the exhaust. Screw the new exhaust filter onto the
thread of the exhaust and tight it.

Unscrew the hexagon screw from the bottom side of the plexiglas cabinet and
drain off using an adequate vessel.

Please turn in and tighten the screw after draining.

Check the oil level of the rotary vane pump D16 Band fill it up if necessary.

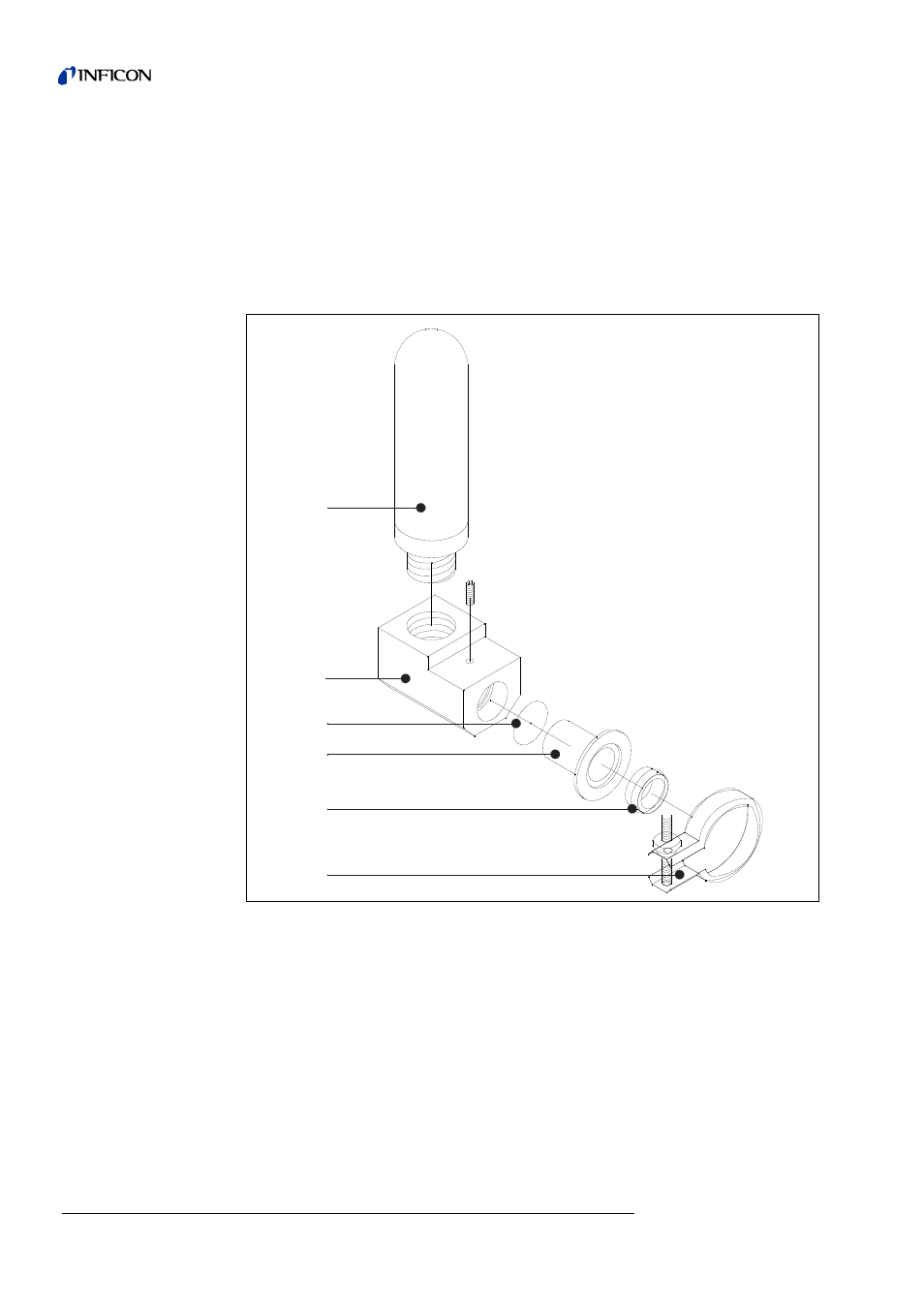

Fig. 9-3 Replacing the exhaust silencer

Pos. Description

Pos. Description

1

Silencer

4

Reducing piece

2

Silencer adapter

5

Centering ring DN 25

3

O-Ring 20 x 3

6

Clamping ring

1

2

3

4

5

6
