User Manual HYDACLab ® 23.10.2008
8
6.3 Reset using HMG 3000
The HYDACLab
®
can be reset in the sensor dialogue of the HMG 3000 (for connection of the
HYDACLab ® to a HMG 3000, see Chap. 12.3 HMG 3000).
6.4 Reset using PC software CMWIN
The HYDACLab
®
can be reset in the sensor dialogue of CMWIN.
CMWIN is special HYDAC PC software and is supplied with the
HMG 510 and HMG 3000.

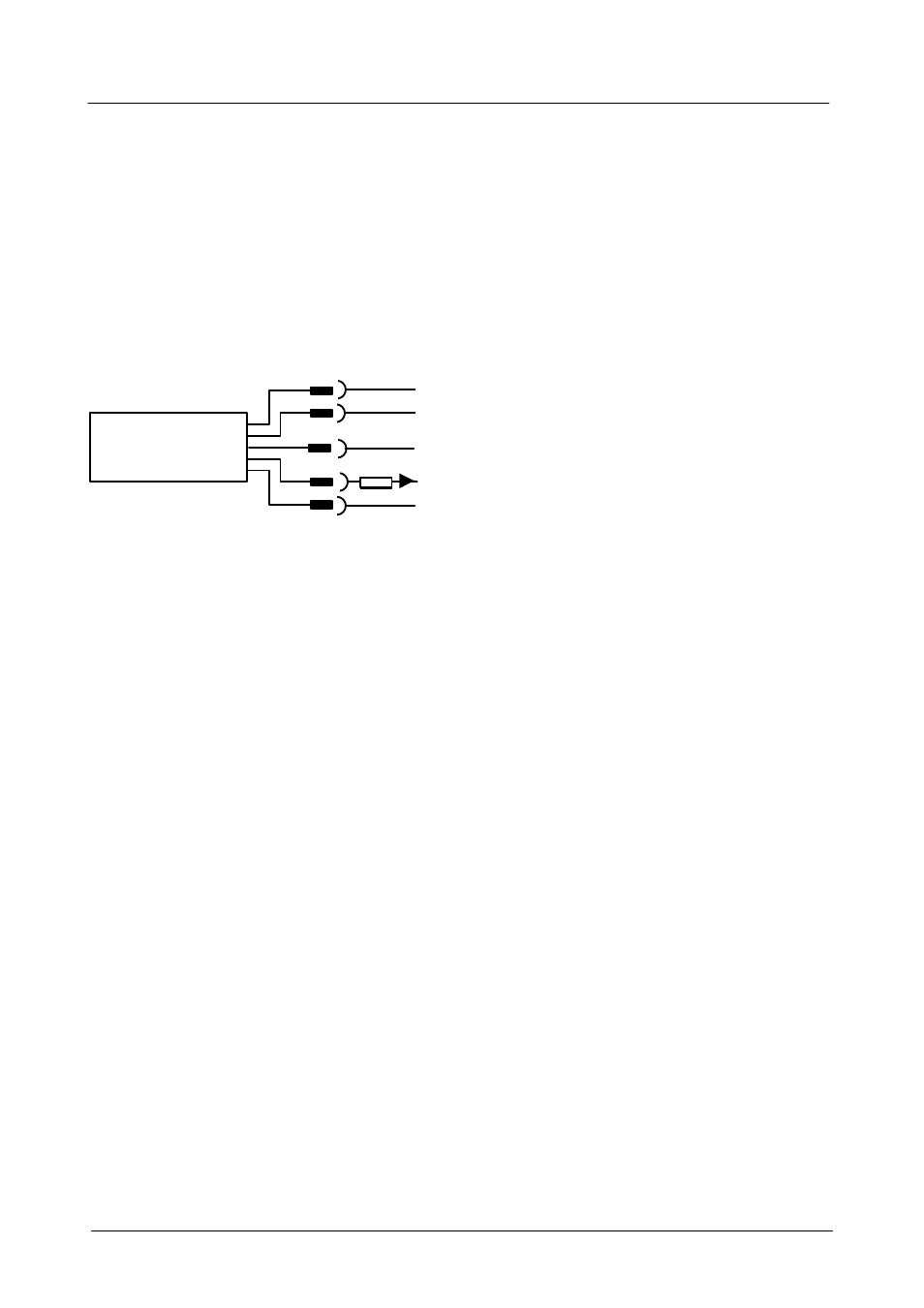

7. Electrical connection
Signal 1
HYDACLab
2
1
3
4
+U
B
Signal 2
RL
5
GND
Signal 1: PNP-Schaltausgang
Signal 2: Sequentieller Analogausgang (4 .. 20 mA)
HSI* / Reset (SPS)
PIN 5: HSI-Kanal / Reset (SPS)
R
Lmax
= (U
B
-5V) / 20mA [k Ω] and R ≤ 500 Ω
Note:
The load resistance R
L
is the sum of the internal input resistance of the evaluation unit and the resistance of
the connection line.
* HSI = HYDAC Sensor Interface (HYDAC's own communication interface)
