HYDAC EDS 1700 User Manual
Page 35
35
E

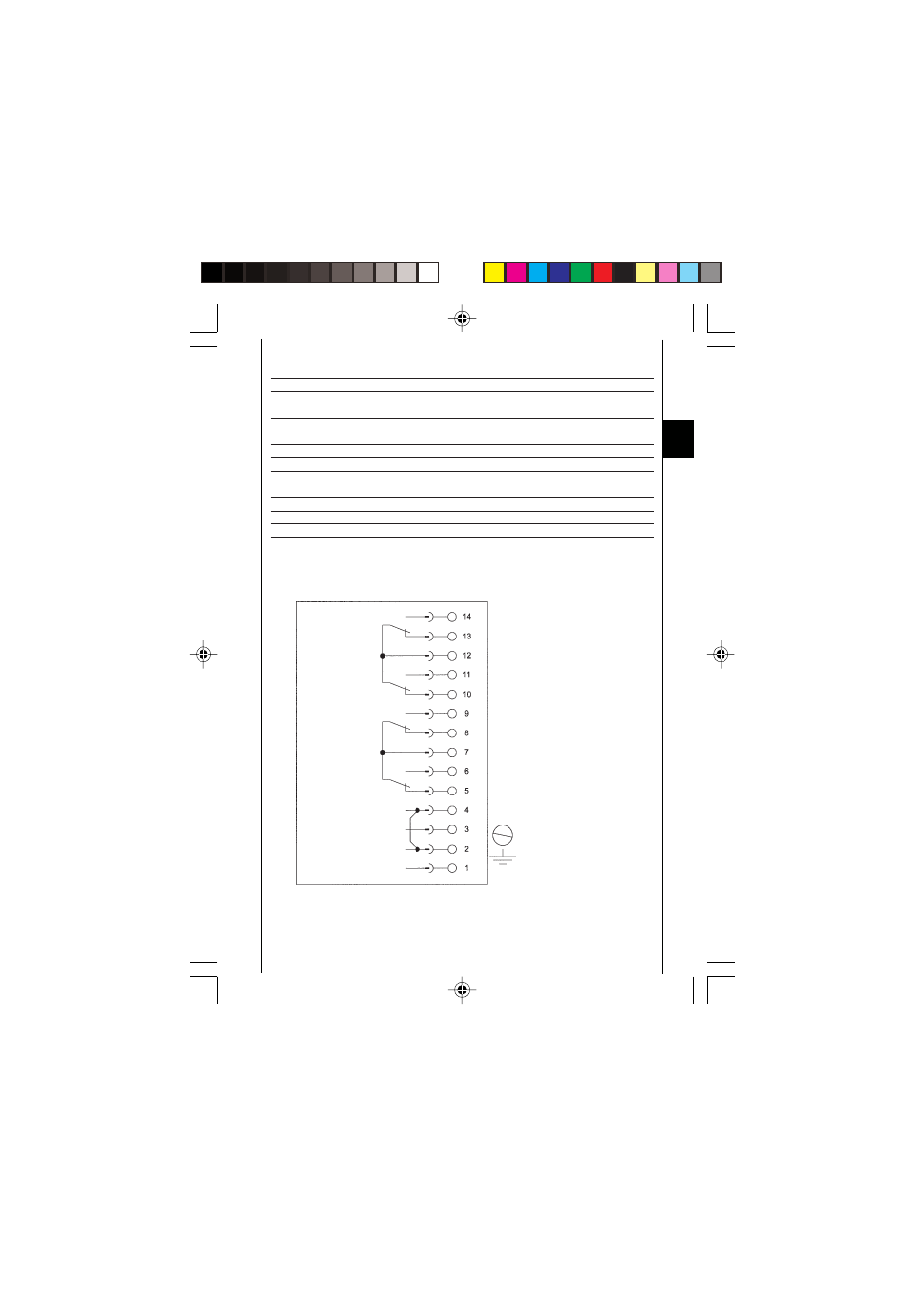

12. Pin connections
relay 4
= switch. point 4
relay 3
= switch. point 3
relay 2
= switch. point 2
relay 1
= switch. point 1
analogue output (0V)
analogue output (signal +)
supply (0V)
supply (+ UB)
Other data:
Hydraulic connection:
G¼" female thread to DIN 3852, Form X
Torque rating 20 .. 25 Nm
Electrical connection:
14-pole, terminal block,
Cross-section of connection max. 1.5 mm²
Supply voltage:
22 .. 32 V DC, residual ripple £ 10%
Current consumption:
approx. 200 mA
Display:
4-digit 7 segment LED display,
red, height of digits: 13 mm
Safety type:
IP 65
Weight:
approx. 800 g
Parts in contact with medium:
stainless steel
Note: FS (Full Scale) = relative to the full measuring range
earth
