23
E

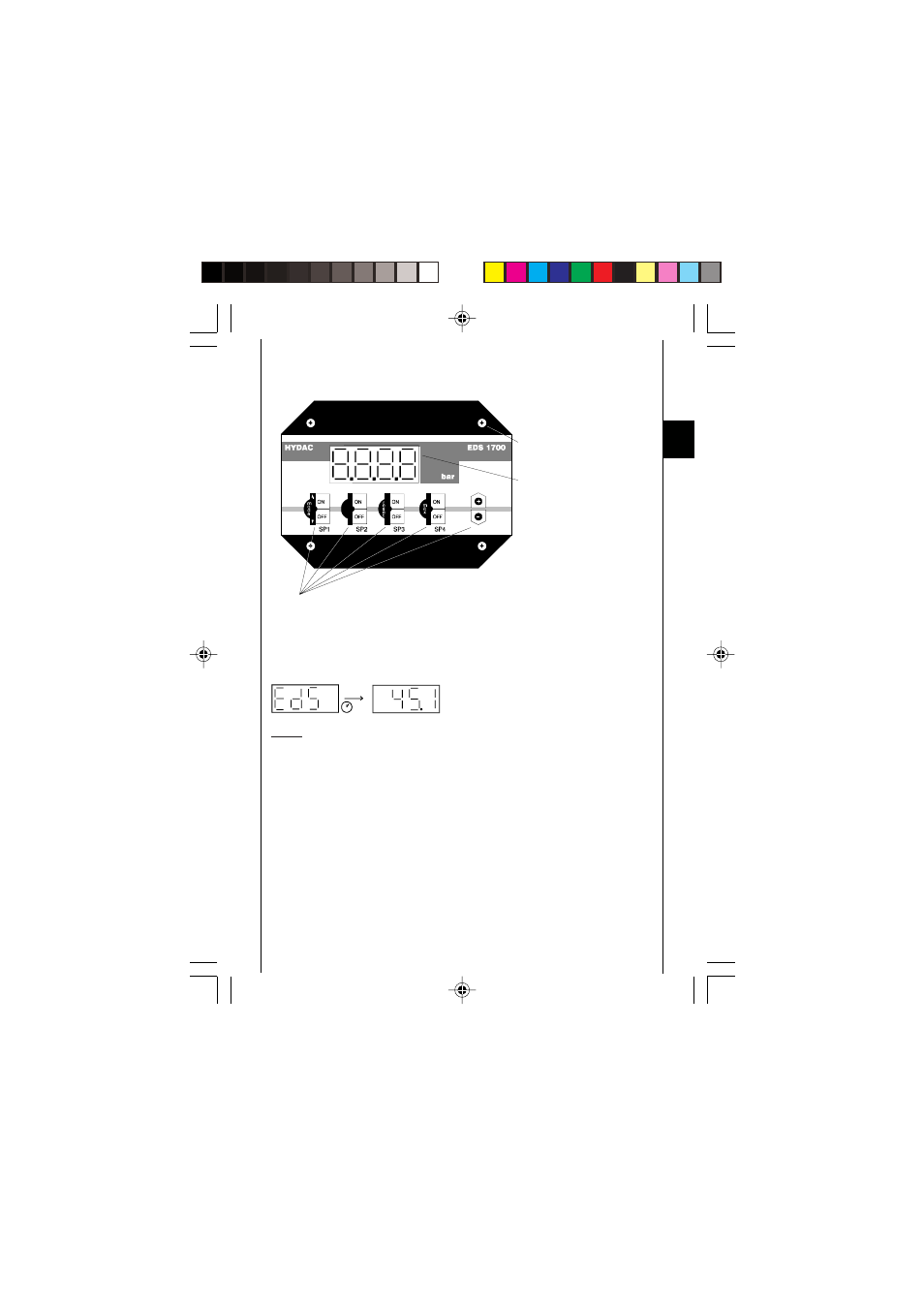

3. Operating keys on the membrane keypad
undo screws to remove
operating panel
4-digit
digital display
4. Digital display
After switching on the supply voltage, the unit briefly displays "EdS" and then
displays the current pressure.
Notes:
l In the basic settings the display can be altered so that, once switched on, the
unit displays a switching point or the maximum value permanently. In this
case "S.P. 1", "S.P. 2", "S.P. 3", "S.P. 4", or "MAX" appears briefly on the
display following the switch-on message. The current pressure can be
displayed briefly by pressing the "+" or "-" key.
l If the current pressure exceeds the nominal pressure of the unit, it can no
longer be displayed and the display begins to flash.
l If the current pressure is below 0.5% of the nominal range, then 0 is
displayed.
keys for setting the switching points
and additional functions
2 s
