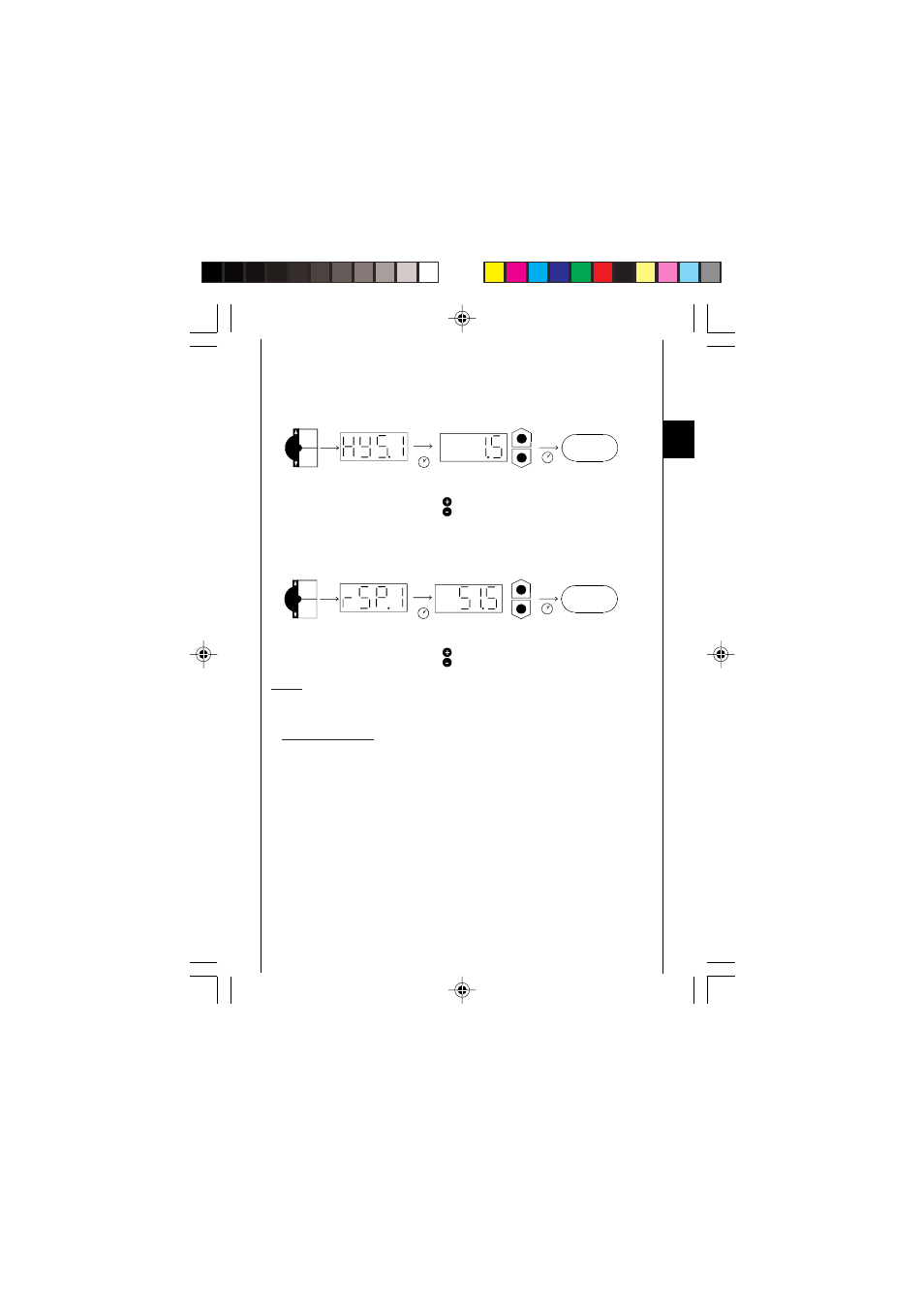

5.3.2 Setting a hysteresis
(Only possible if the switch-back mode is set to "hysteresis".)
pressure
display
press OFF
key
display
set hysteresis
= larger value
= smaller value
! Г
" Г
2 1
2 ))
PR
G
H
T Q
G
B
H
5.3.3 Setting a switch-back point
(Only possible if the switch-back mode is set to "switch-back point".)
! Г
" Г
2 1
2 ))
PR
G
H
T Q
G
B
H
pressure
display
press OFF
key
display
set switch-back point
= larger value
= smaller value
Notes:
l If "LOC" appears in the display when trying to alter the settings,
programming is disabled.
Corrective action: set hardware and software programming enable to "ON".
(See point 8 "Programming enable")
l If the "+" or "-" key is held down during alteration, the value automatically
advances in larger increments.
l If a setting has been altered, "PROG" appears briefly in the display when the
display switches over. The new setting is then saved in the unit.
