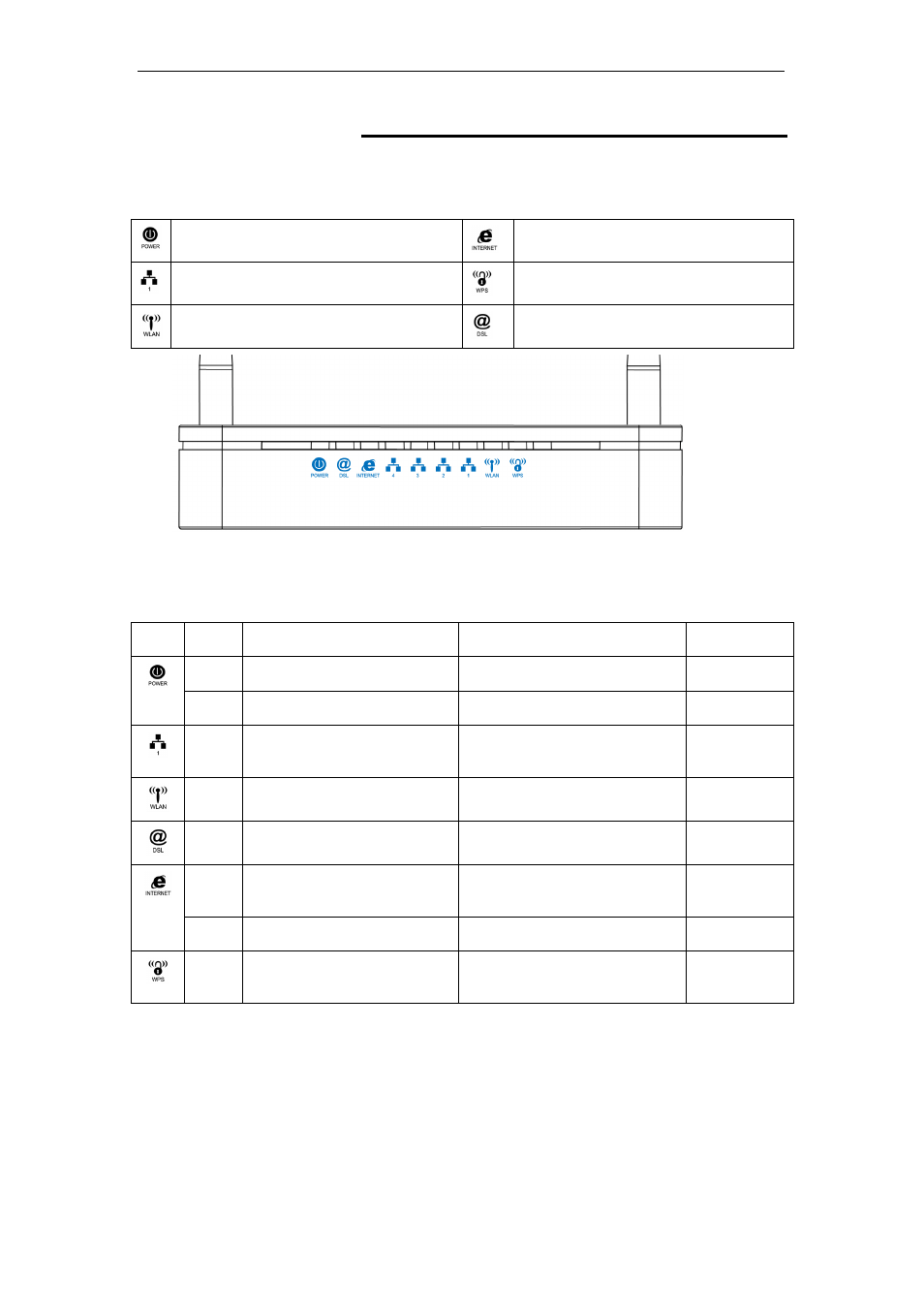

LED meanings & activations
Your 802.11n WLAN ADSL2+ Router has indicator lights on the
front side. Please see below for an explanation of the function of
each indicator light.
Power indicator
Internet Active indicator
Ethernet Active indicator
WPS Active indicator
Wireless Active indicator
ADSL Link indicator
Table1. LED function
Label Color
On
Flash
Off
Red Device
malfunction
Waiting for device ready
N/A
Green
Ready
Waiting for device ready
Power Off
Green
Ethernet Connected
Transmit / Receive Data
Ethernet
Disconnected
Green
WLAN Ready
Transmit / Receive Data
WLAN Off
Green
Connect to DSLAM
Disconnect to DSLAM
N/A
Green
The device has a WAN IP
address from ISP
Transmit / Receive Data
N/A
Red
No WAN IP address from ISP
N/A
N/A
Green
N/A
Start WPS peer within 2
minutes
WPS Idle
