Set-up and Start-up
Hei-VAP Value, Hei-VAP Advantage
39
EN
When using the cover and the protective shield, take care that the
two parts do not jam.

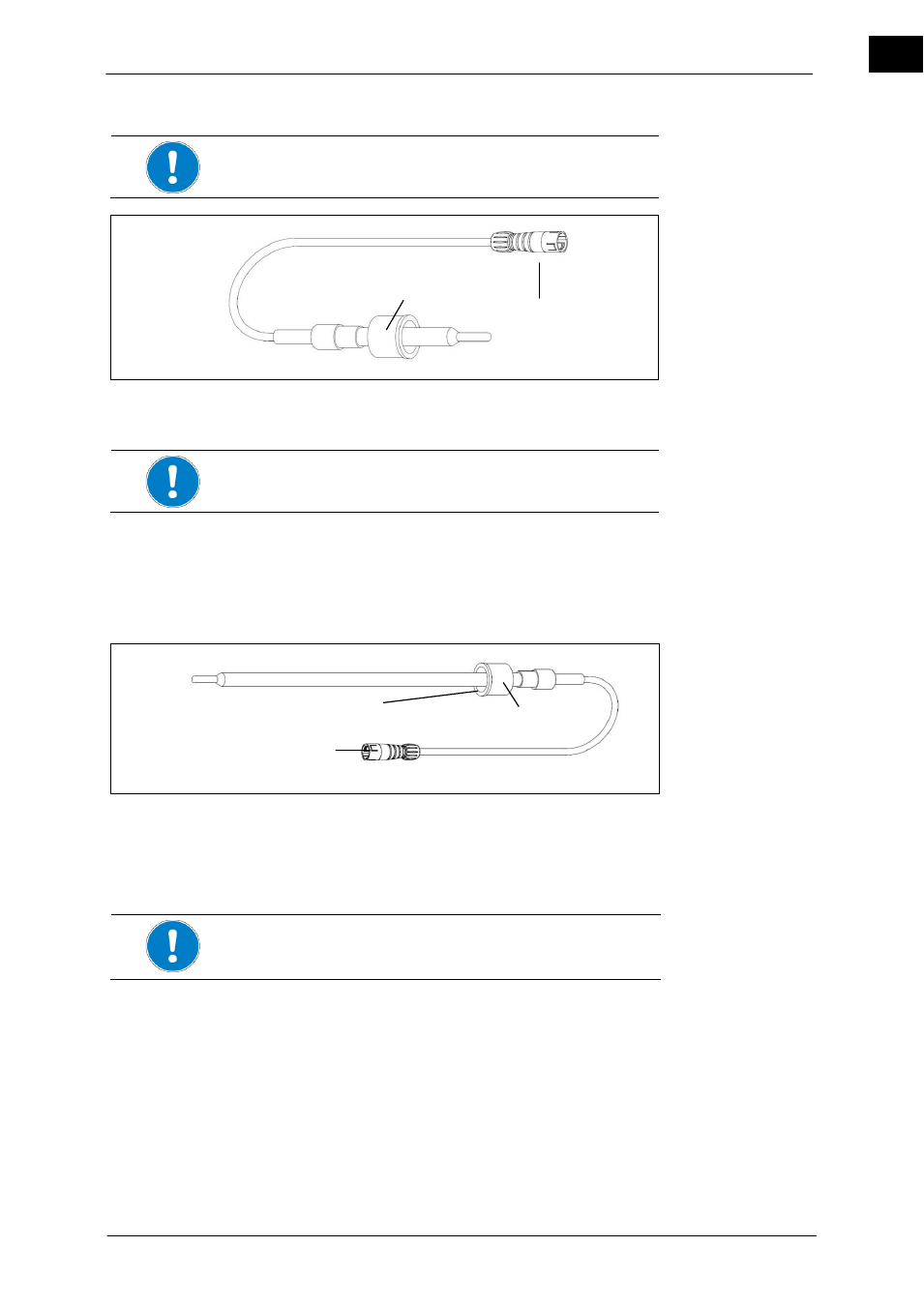

Figure 4 –29: Vapor temperature sensor
1 Plug 2 Seal
The vapor temperature sensor cannot be used when using the
temperature sensor Auto
accurate
sensor.
1. Unscrew the threaded fitting on the condenser.
2. Insert the vapor temperature sensor into the condenser so that the white PTFE side
of the seal (2) points to the glass thread.
3. Screw the vapor temperature sensor together with the threaded fitting.
4. Connect the plug (1) in the socket on the tower to the left of the unit (see chapter 5).
Figure4 –30: Temperature sensor Auto
accurate
sensor
1 Threaded fitting cap 3 PTFE side of the sealing tube
2 Plug
Only in conjunction with glassware sets G3 and G6.
Set the depth at which the temperature sensor Auto
accurate
sensor
projects into the condenser so that the lower edge of the sensor is
located at 2/3 of the condenser's height.
1. Unscrew the threaded fitting on the vacuum port.
2. Insert the Auto
accurate
sensor into the vacuum port so that the white PTFE side (3) of
the seal points to the glass thread.
3. The depth of the Auto
accurate
sensor is set on the condenser by adjusting the
Auto
accurate
sensor.
4. Screw together the Auto
accurate
sensor with the threaded fitting (1).
5. Connect the plug (2) in the socket on the tower to the left of the unit (see chapter 5).
Vapor temperature
sensor ( Hei-VAP
Advantage, Hei-
VAP Precision)
Temperature sen-
sor
Auto
accurate
sensor
1
2
3
1
2
