Set-up and Start-up
26 Hei-VAP Value, Hei-VAP Advantage
EN
EN
4.5.5 Install the evaporator flask
WARNING Glass breakage!
Serious injuries from shattering and breaking glass.
 Check glass devices for damages (stars, breaks, etc.).
 Only use perfect glass devices and replace all damaged
glassware as soon as possible.
 Work carefully.
CAUTION Unintentionally rotating drive!
Injuries to hands.
 Verify that the rotation is displayed.
WARNING Risk of injuries due to retracting or entrapment!
Risk of injury.
A risk of entanglement exists on the movable parts of the unit.
 Wear suitable protective clothing for activities on the rotary
evaporator with goggles and gloves.
 Install the evaporator flask with a permanent flask clamp on the vapor tube.

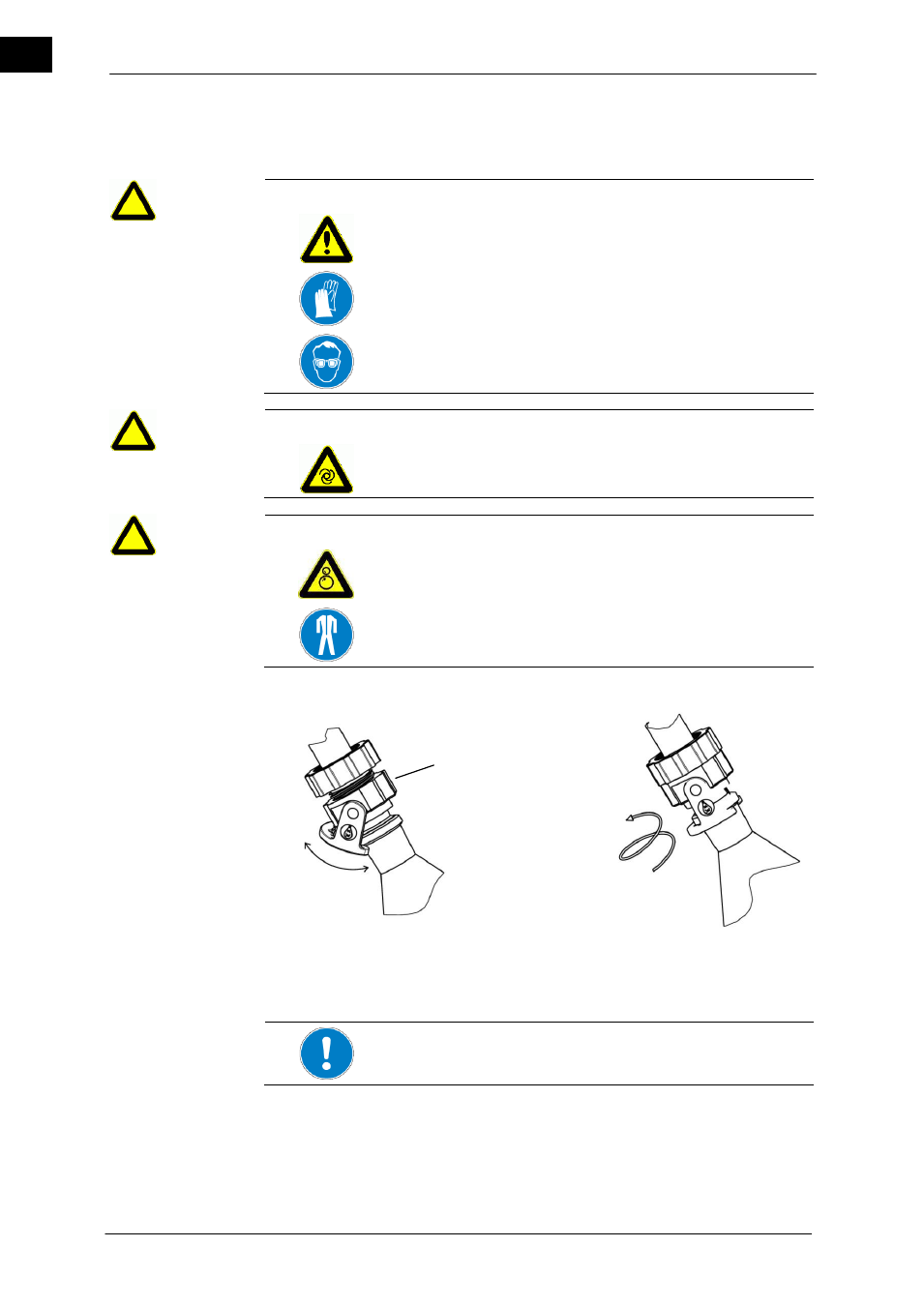

Figure 4 –13: Flask clamp (swing clamp)
1 Jacknut 2 Swing clamp
The correct seating of the swing clamp on the flange of the evap-
orator flask must be observed!
Install the evapora-
tor flask
1
2
