Set-up and Start-up
Hei-VAP Value, Hei-VAP Advantage
35
EN

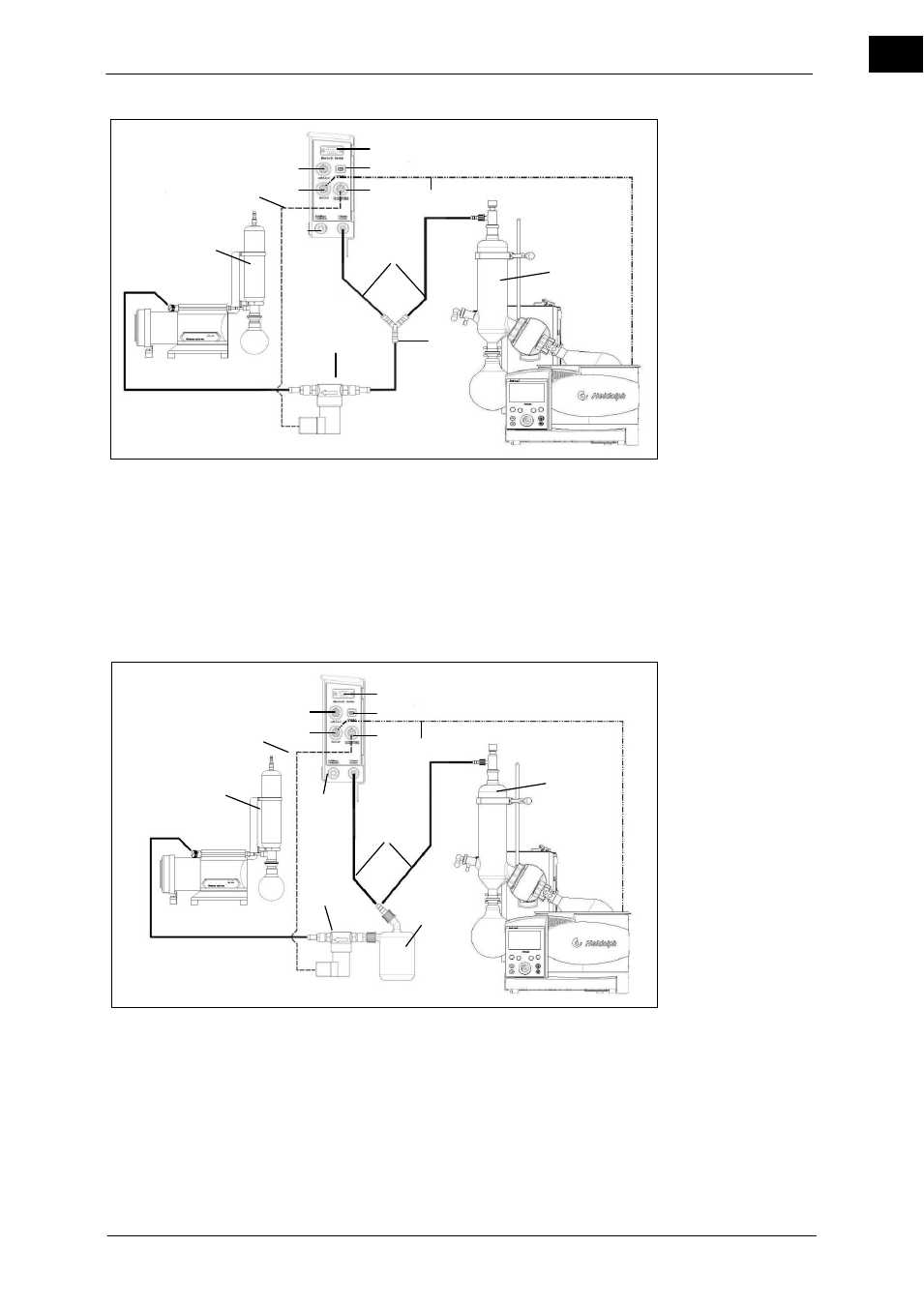

Figure 4 –22: Hei-VAP Precision with Rotavac valve control and vacuum box
1 Condenser 8 Ventilation / inert gas
2 Y-piece 9 Vacuum tube
3 Vacuum valve 10 Vacuum valve cable connection
4 Condensate cooler (optional) 11 USB PC connection
5 Vacuum valve cable 12 Bluetooth module
6 Switch box connection 13 Data cable
7 Hei-VAP connection
Figure 4 –23: Hei-VAP Precision with Rotavac valve control and vacuum box and with
Woulff bottle
1 Condenser 8 Ventilation / inert gas
2 Woulff bottle 9 Vacuum tube
3 Vacuum valve 10 Vacuum valve cable connection
4 Condensate cooler (optional) 11 USB PC connection
5 Vacuum valve cable 12 Bluetooth module
6 Switch box connection 13 Data cable
7 Hei-VAP connection
