CRADLE - DELL E6500-E6530
INSTALLATION INSTRUCTIONS
Product
Revision
Form
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
7160-0202
Rev. E
INST-439
Page

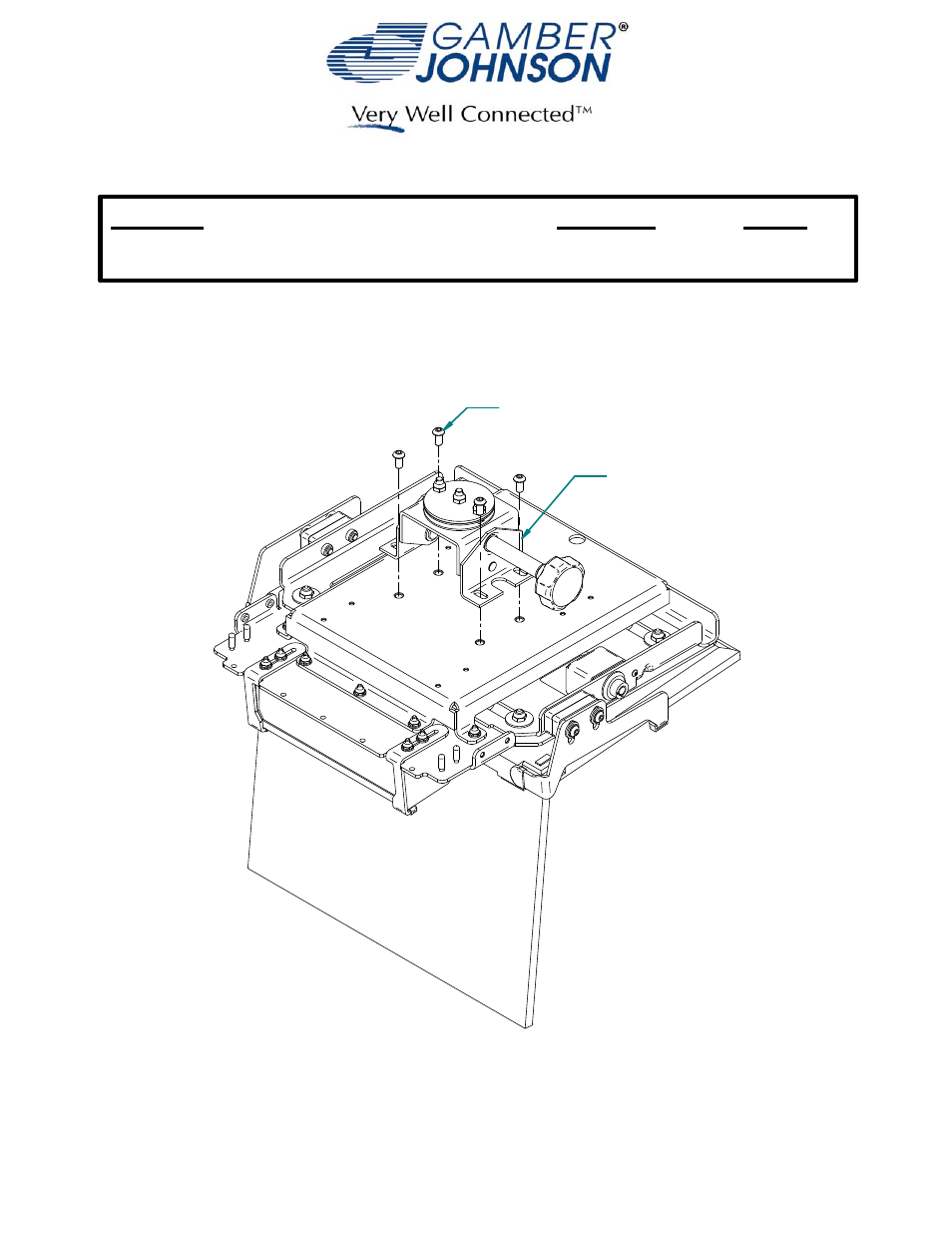

Figure 3
.25-20 x .50 Socket Button
Head Cap Screw
3 / 5
Motion Attachment
Motion Attachment
Secure the Motion Attachment with (4) .25-20 x .50 Socket Button Head Cap Screws supplied
in Hardware Bag 7120-0468 using a 5/32" Hex-Key Wrench.
