Gamber-Johnson 7160-0202 - Manual (Page 2)

CRADLE - DELL E6500-E6530
INSTALLATION INSTRUCTIONS
Product Revision Form
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
7160-0202 Rev. E INST-439
Page

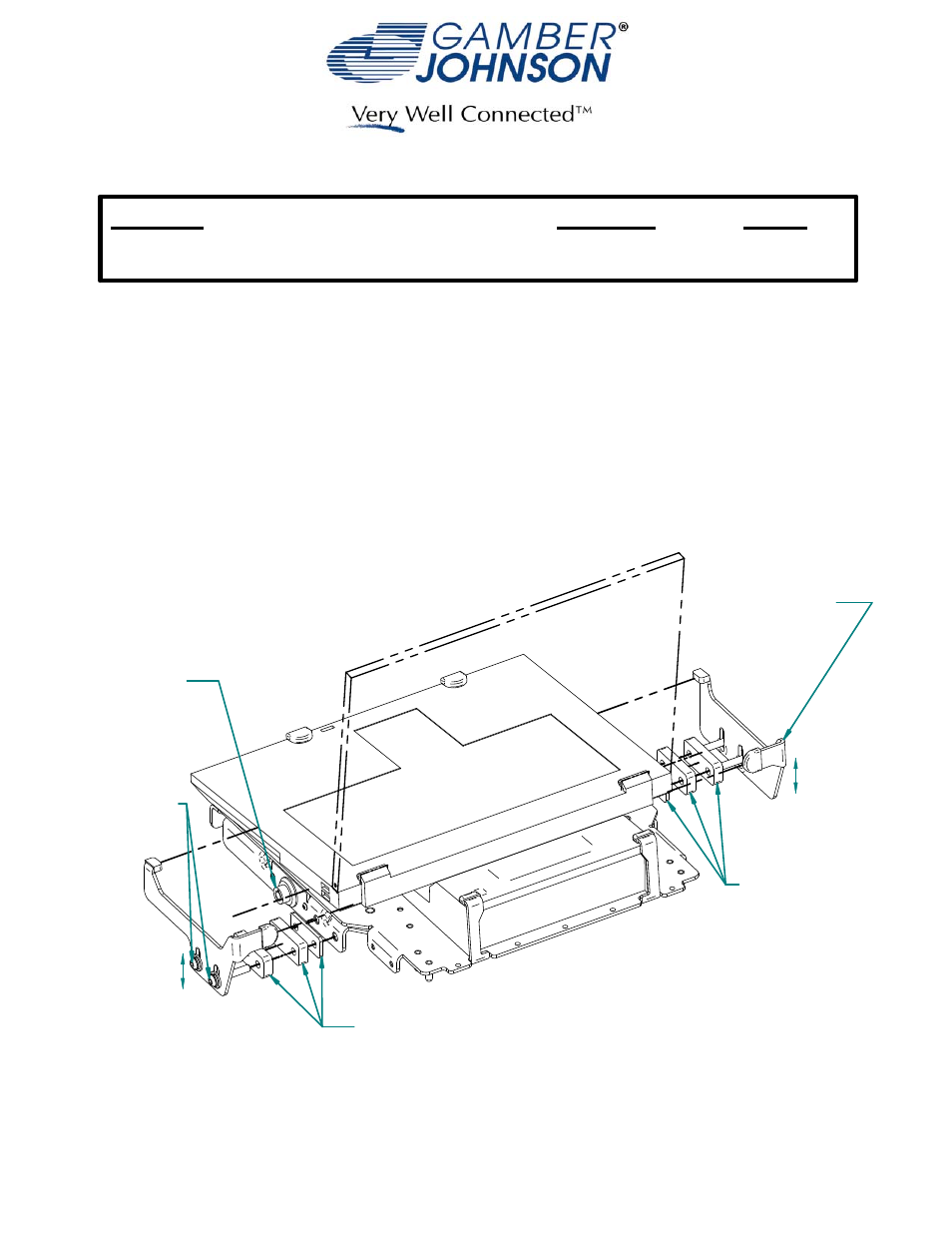

Figure 2
Latch Button
Loosen and adjust
side hook with
5/32 hex-key wrench
Loosen and adjust
side hook with
5/32 hex-key wrench
2 / 5
2 Spacers for E6510
computer
1 Spacer for E6500
computer
3 Spacers foe E6520 &
E6530 computer
2 Spacers for E6510
computer
1 Spacer for E6500
computer
3 Spacers for E6520 & E6530
computer
Adjusting the Side Brackets
1. After the port Replicator has been installed, open the cradle by pushing the latch button
and pulling the sides outward.
2. Mount the computer onto the Port Replicator. A secure mount is confirmed with an audible
click of the Port Replicator.
3. If a E6500 computer is being used, take off both side hooks and remove the 1/8" & one 3/8"
thick spacer from each side.
4. If a E6510 or E6520 computer is used, remove the 1/8" thick spacer from each side.
5. Reassemble the side hooks to the cradle.
6. Close the cradle, adjust the side hooks up or down to align with the computer case.
and secure the mounting screws with a 5/32" Hex-Key Wrench.
