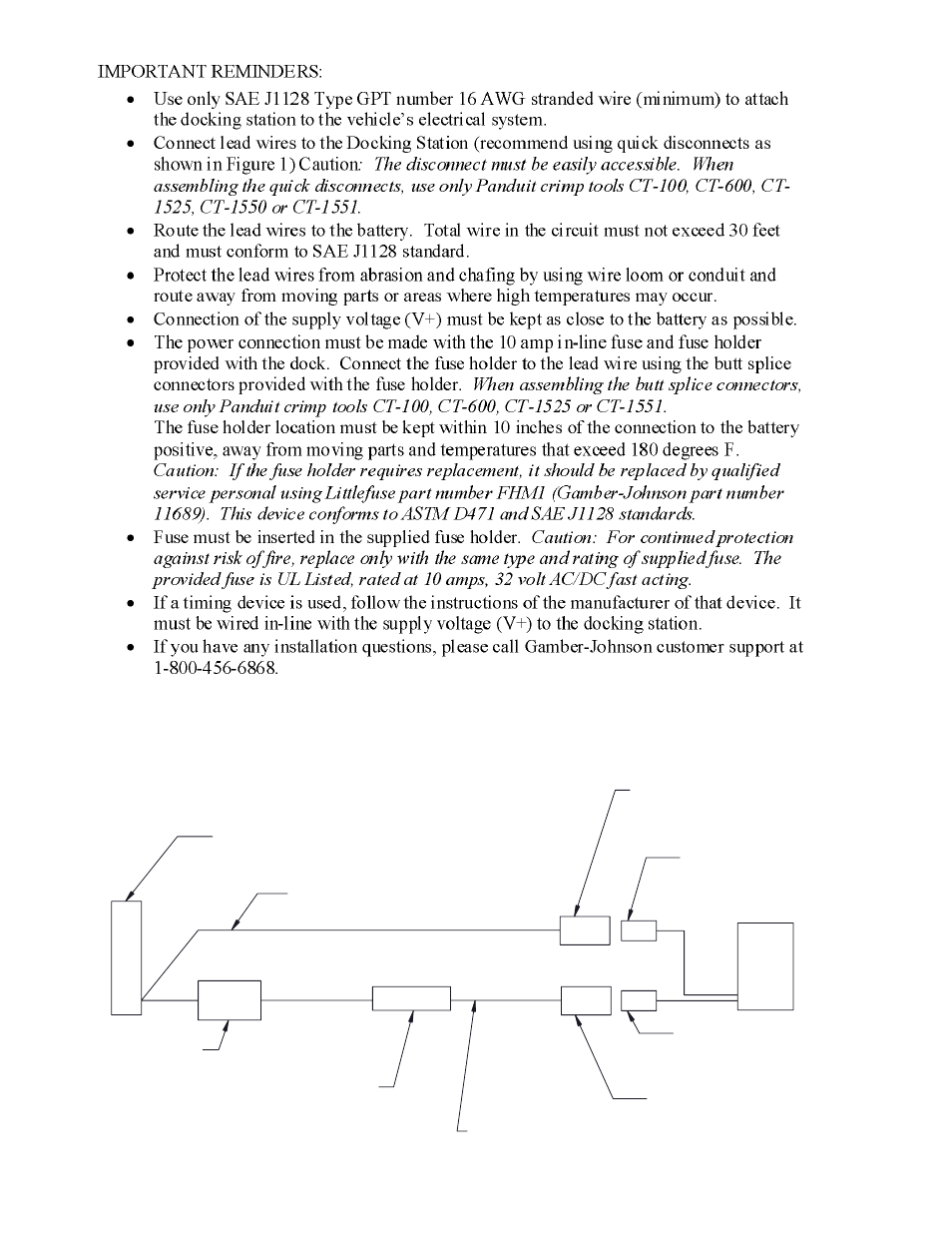

Pg 4 – Gamber-Johnson 7160-0496 User Manual
Page 4
16 AWG (red wire)
16 AWG (black wire)
Ground to Vehicle Chassis
to red lead from dock.
Quick Disconnect (female)
Panduit # DNF14-250FIB
to black lead from dock.
Quick Disconnect (female)
Panduit # DNF14-250FIB
black lead from battery.
Quick Disconnect (male) to
Panduit # DNF14-250FIM
Vehicle Battery
Butt Splice connectors
wire using Panduit #BSN14-C
Connect in-line fuse holder to lead
to red lead from battery.
Quick Disconnect (male)
Panduit # DNF14-250FIM
Dock
Fig. 4
-
+
10"
Fuse
