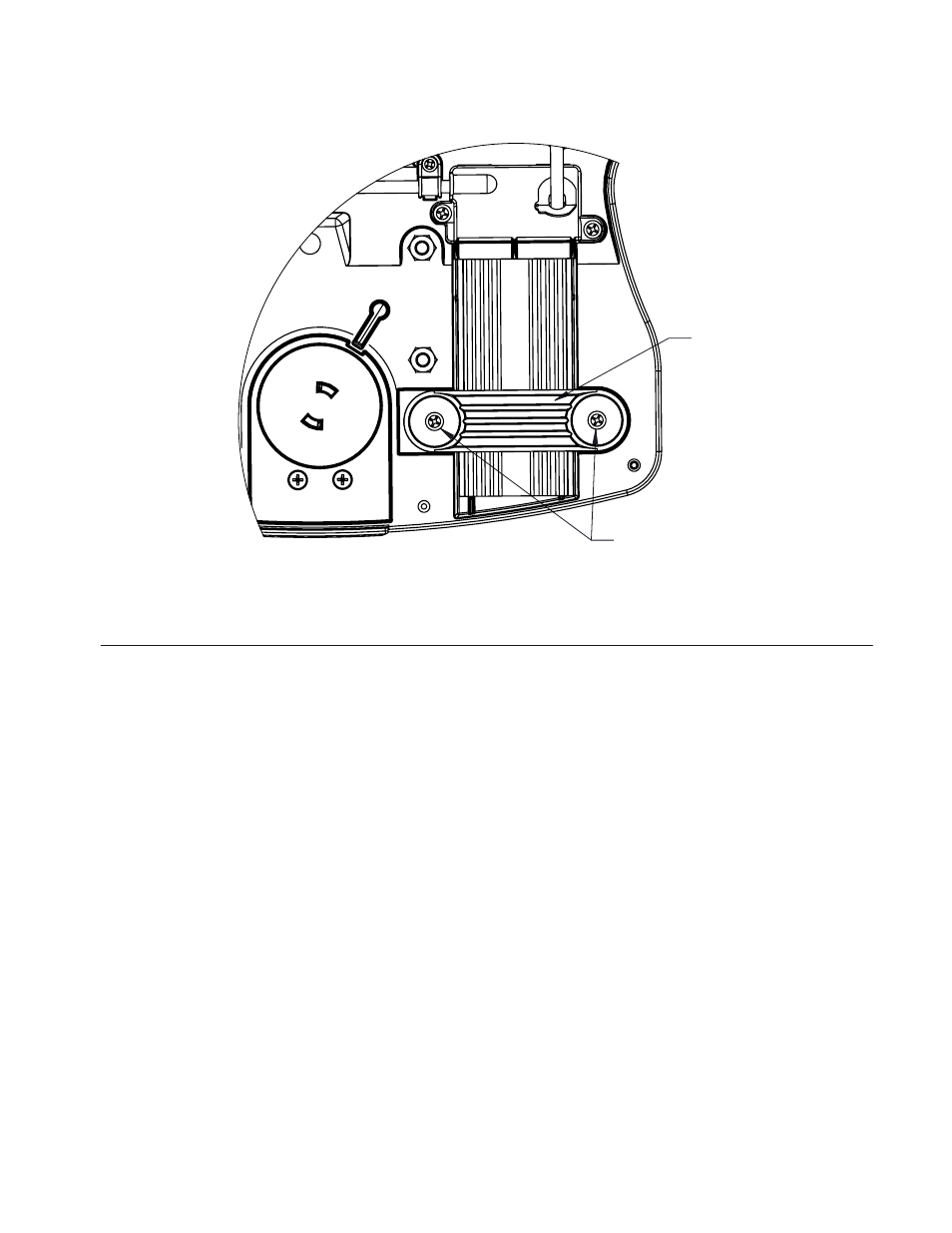

Fig. 3
Retainer Strap
#8 X 5/8"
Screw
Place Retainer Strap into pocket provided and attach with 2 #8 X 5/8" screws (Fig. 3). 10.
WIRING INSTRUCTIONS
IMPORTANT: Make sure that you have read this entire section before you begin wiring!
Refer to Fig. 4
Install docking station into vehicle, making sure that all bolts are tight. 1.
Attach BLACK ground wire to the location where the vehicle battery grounds to 2.
vehicle chassis (Fig. 4).
Connect the RED wire to the supply voltage (V+) from the vehicle (Fig. 4). 3.
