EUCHNER
Hand-Held Pendant Station
1. Mechanical dimensions and Pin assignment
1.1 Mechanical dimensions
See data-sheet and operating instruction enclosed to the product.
1.2 Pin assignment
See data-sheet and operating instruction enclosed to the product.
2. Features
Housing of Hand-Held Pendant Station
Plastic housing made of polycarbonate with mounting magnet on the rear of the
device

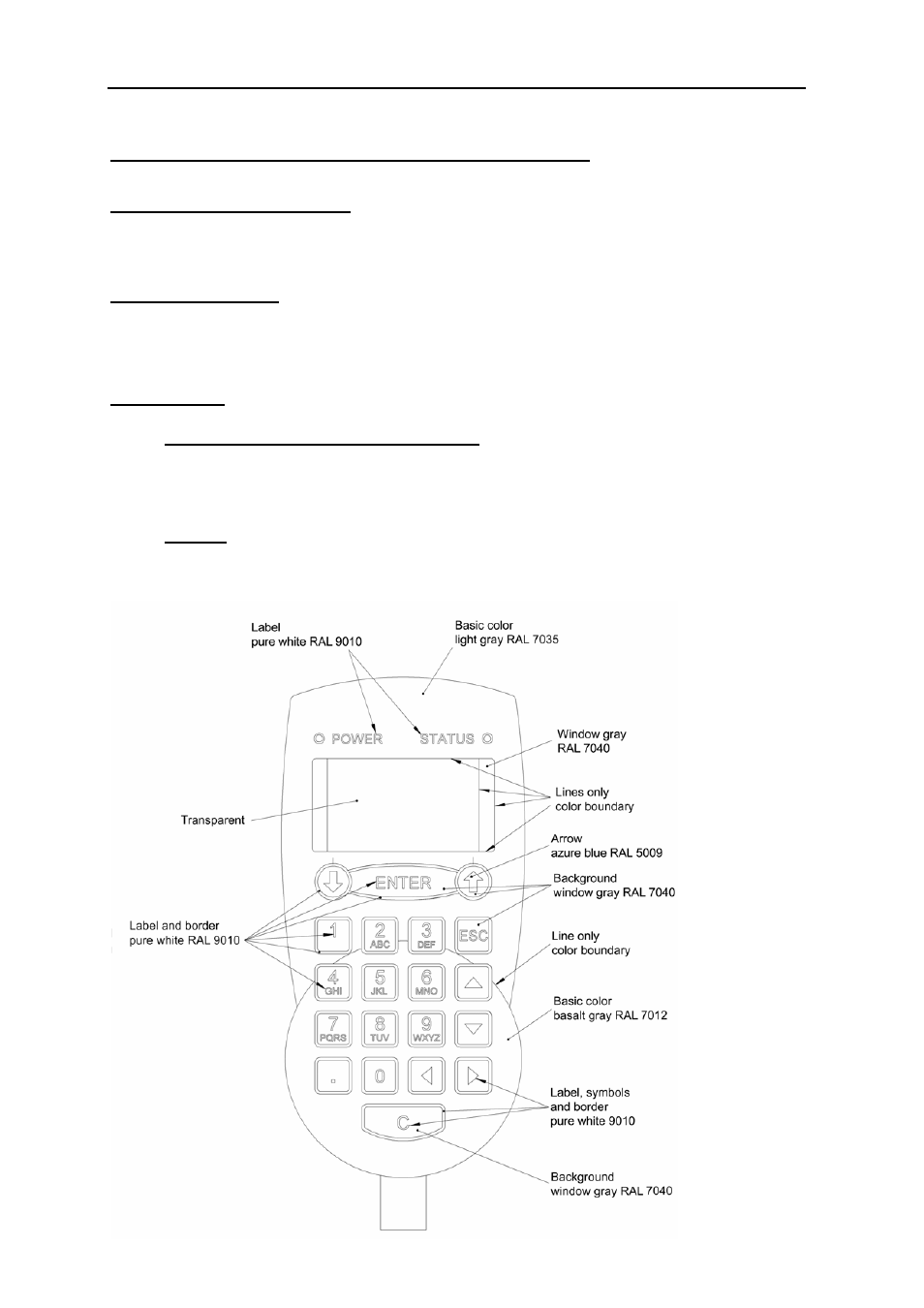

Keypad
Membrane keypad made of polyester
with window for LC display, 20 keys and 2 LEDs
092491-07-01/09
Subject to technical modifications
Page 3 / 34
