EUCHNER Hand-Held Pendant Station

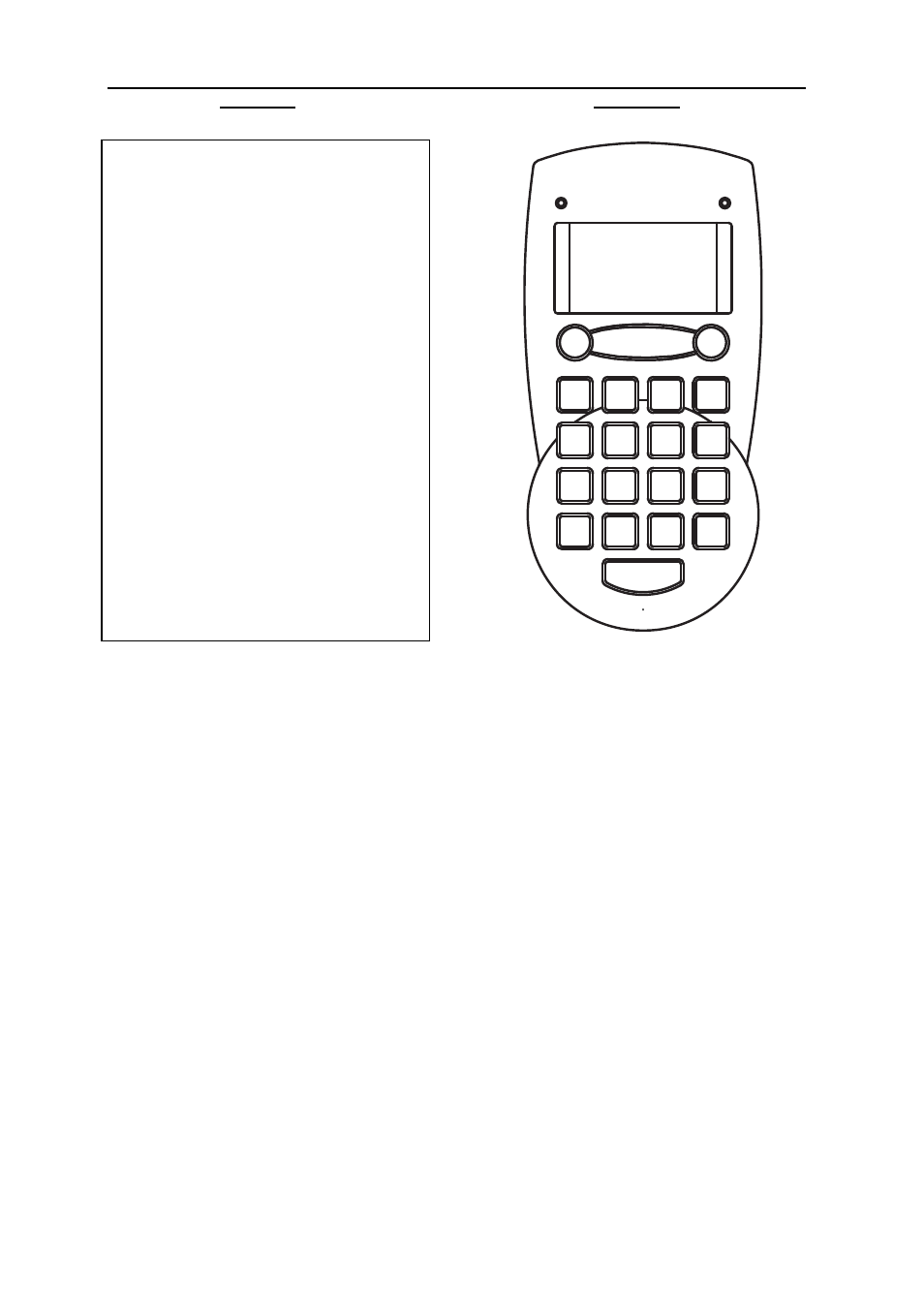

Key table Key layout
Key No.
KEY BYTE
092491-07-01/09 Subject to technical modifications Page 17 / 34
Key S 1 31H
Key S 2 32H
Key S 3 33H
Key S 4 34H
Key S 5 35H
Key S 6 36H
Key S 7 37H
Key S 8 38H
Key S 9 39H
Key S 10 3AH
Key S 11 3BH
Key S 12 3CH
Key S 13 3DH
Key S 14 3EH
Key S 15 3FH
Key S 16 40H
Key S 17 41H
Key S 18 42H
Key S 19 43H
Key S 20 44H
No key operated
30H
POWER STATUS
S1 S2 S3
S4 S5 S6 S7
S8 S9 S10 S11
S14 S15 S12 S13
S18 S19 S16 S17
S20
