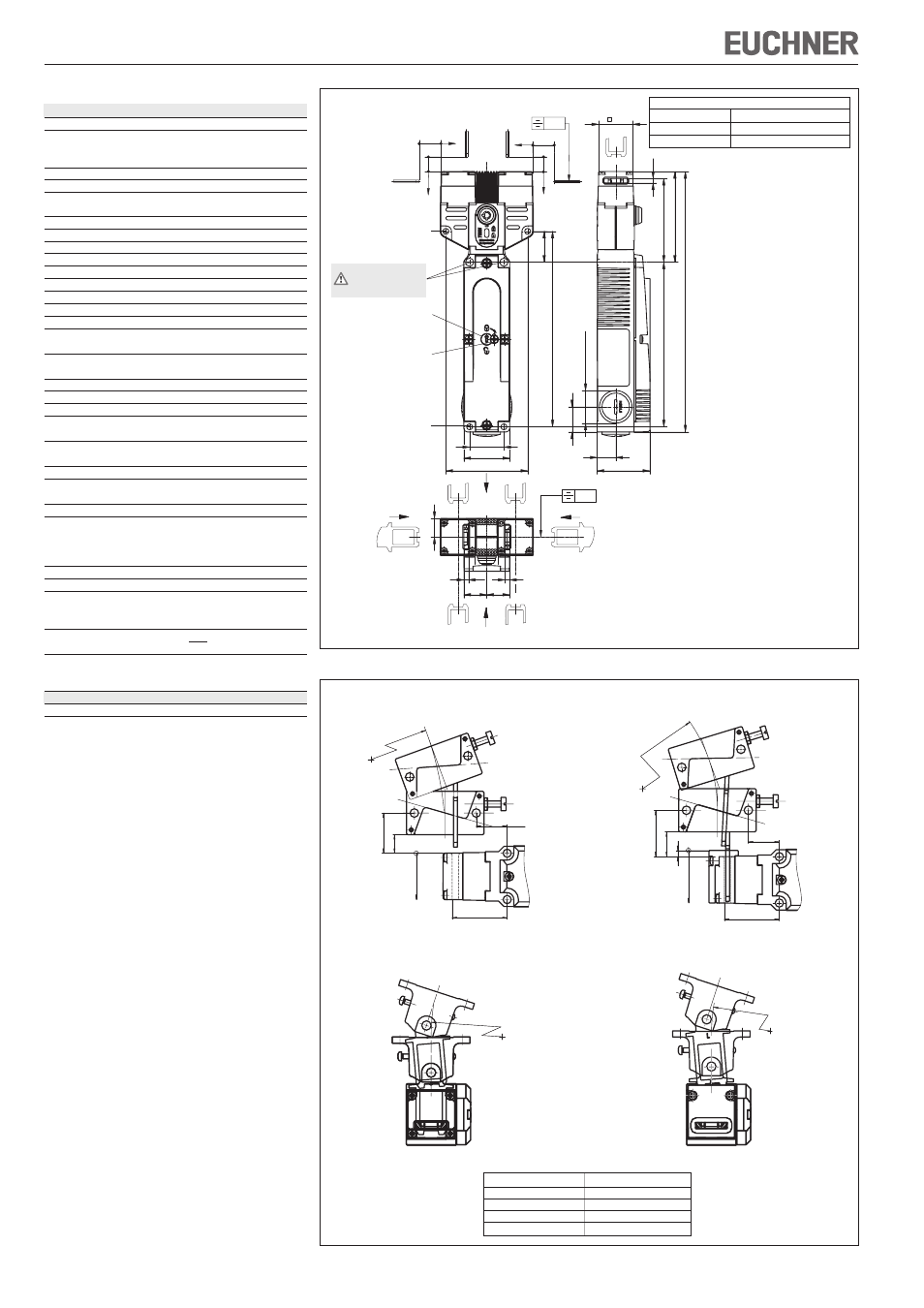

Page 6: Figure 4: dimension drawing sta-tw, Figure 4: min. door radii

Operating Instructions Safety Switch STA-TW...
(Twin)
EUCHNER GmbH + Co. KG Kohlhammerstraße 16 D-70771 Leinfelden-Echterdingen Tel. +49/711/75 97-0 Fax +49/711/75 33 16 www.euchner.de [email protected]
v
h
h
v
30
<40>
<72>
171
27
20
20
16
4
4
0,3
<74>
<80>
144
30
4
<228>
<46,5>
16,3
22
M20x1,5 (3x)
0,3
Figure 4: Dimension drawing STA-TW...
Technical data
Parameters
Value
Housing material
Anodized die-cast
Degree of protection acc. to IEC 60529
Cable entry
IP67
Plug connector
IP65
Mechanical life
1x10
6
operating cycles
Ambient temperature
-20...+55 °C
Degree of contamination
(external, acc. ?to EN 60947-1)
3 (industrial)
Installation position
Any
Approach speed, max.
20 m/min
Extraction force
30 N
Retention force
20 N
Actuating force, max.
35 N
Actuation frequency
7000 / h
Switching principle
Slow-action switching contact
Contact material
Silver alloy, gold flashed
Connection type
Screw terminal, M20x1.5
Conductor cross-section
rigid/flexible
0.34 ... 1.5 mm²
Operating voltage for
L024
24 V
optional LED indicator
Rated insulation voltage
U
i
= 250 V
Rated impulse withstand voltage U
imp
= 2.5 kV
Rated short-circuit current
100 A
Switching voltage, min.
12 V
at 10 mA
Utilization category
according to EN 60947-1-5
AC-15 4 A 230 V / DC-13 4 A 24 V
Switching current, min., at 24 V 1 mA
Short circuit protection (control
4 A gG
circuit fuse) acc. to IEC 60269-1
Conv. thermal current I
th
4 A
Solenoid operating voltage/solenoid power consumption
STA-TW...024
AC/DC
24 V(+10%/-15%)
8 W
STA-TW...110
AC
110 V(+10%/-15%)
10 W
STA-TW...230
AC
230 V(+10%/-15%)
11 W
Duty cycle
100 %
Power consumption
8 W
Locking force F
max
Straight actuator with bush
F
S
= 2,500 N
Bent actuator with bush
F
S
= 1500 N
Locking force F
Zh
in acc. with GS-ET-19
Switch with increased retention force STA-TW.B..., STA-TW.C...
Actuating force at 20 °C
45 N
Mechanical life, retention
1 x 10
5
operating cycles
Reliability figures according to EN ISO 13849-1
B
10d
4.5 x 10
6
(F
Zh
=
F
max
) = 2,000 N
1.3
Necessary minimum travel + permissible overtravel
Approach direction
Actuator
S standard
Horizontal (h)
24.5 + 5
Vertical (v)
24.5 + 5
∅ 5.3 (2x)
for M5x35 mm
ISO 1207/ISO 4762
Mechanical
release
Locking screw
∅ 5.3 (2x)
for M5x35 mm
ISO 1207/ISO 4762
Figure 4: Min. door radii
Actuator type
Door radius min. [mm]
Actuator S-G...
300
Actuator S-W...
300
HINGED ACTUATOR S-OU...
200
HINGED ACTUATOR S-LR...
200
Hinged actuator S-OU-LN for
insertion funnel
Hinged actuator S-LR-LN for
insertion funnel
16
30
R >
200
35,5
4
28,5 +5
20
R>200
Hinged actuator S-OU-SN
Hinged actuator S-LR-SN
24,5 +5
12
26
35,5
R >
20
200
R>200
Do not use these
mounting holes!
