ERICO ERITECH ERICORE Lower Termination User Manual
Page 5
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
www.erico.com
It is important to cover all
exposed metallic surfaces
(copper, hose clamp, lug, ground
rod clamp, etc.) To avoid the risk of
corrosion.
14. Place the ‘VITAL WARNING’ label
(supplied in the kit) in a suitable place near
the downconductor.
ERICORE downconductor cable has
been specifically designed to cope
with extremely high impulse
voltages and currents. Due to the nature
of the cable construction, and its working
environment, it is very important that
each step is followed and carried out
exactly as per the following instructions.
The special insulation cutting tools have
been supplied to facilitate the cutting of the
cable’s insulation layers, while preventing
damage to other layers, such as the copper
foil.
Downconductor
lower termination
bound in
waterproofing
mastic
ERITECH
Ground Rod
LEC IV
Ground Pit
System 3000

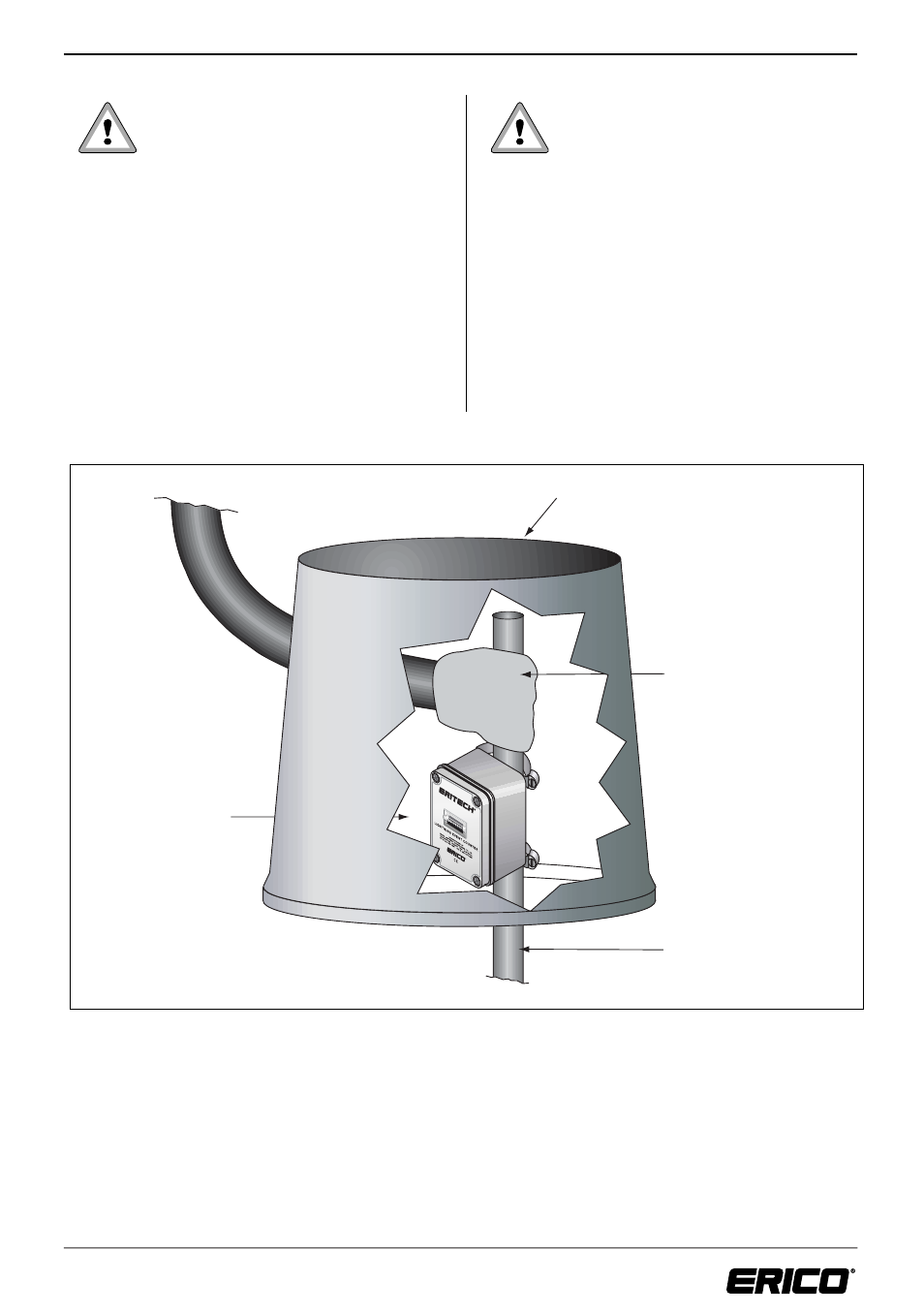

Figure 3: Completed termination for downconductor.
