F) Compare the recorded values to the range shown in the table below:
X
L
(H) X
C
(ηF)
Min Recorded value Max Min Recorded value Max
SIXXi
23.0 36.0 0.5 1.5
Table 1: Range for SIXXi testing
If both X
L
and X
C
are within the range shown in the Table 1, the air terminal tested functioning properly.
If either X
L
and X
C
are not within the range shown in the Table 1, proceed to the following:
-
Make sure the air terminal tested is a genuine ERICO INTERCEPTOR of the SIXXi range,
any copy or previous model will not register the same characteristics.
- Make sure measurements are done at a temperature of 20°C (± 5°C). The measurements
proposed are influenced by the temperature.
- Make sure connections are clean, free of any grease or polluting material, and that no
visible damage to the terminal can be detected.
If the above procedures have been done and either X
L
and X
C
are not within the range shown in Table 1, it does not
definitively indicate that the air terminal has a dysfunction. There may be an issue from measurement. Contact your
ERICO representative for additional information.

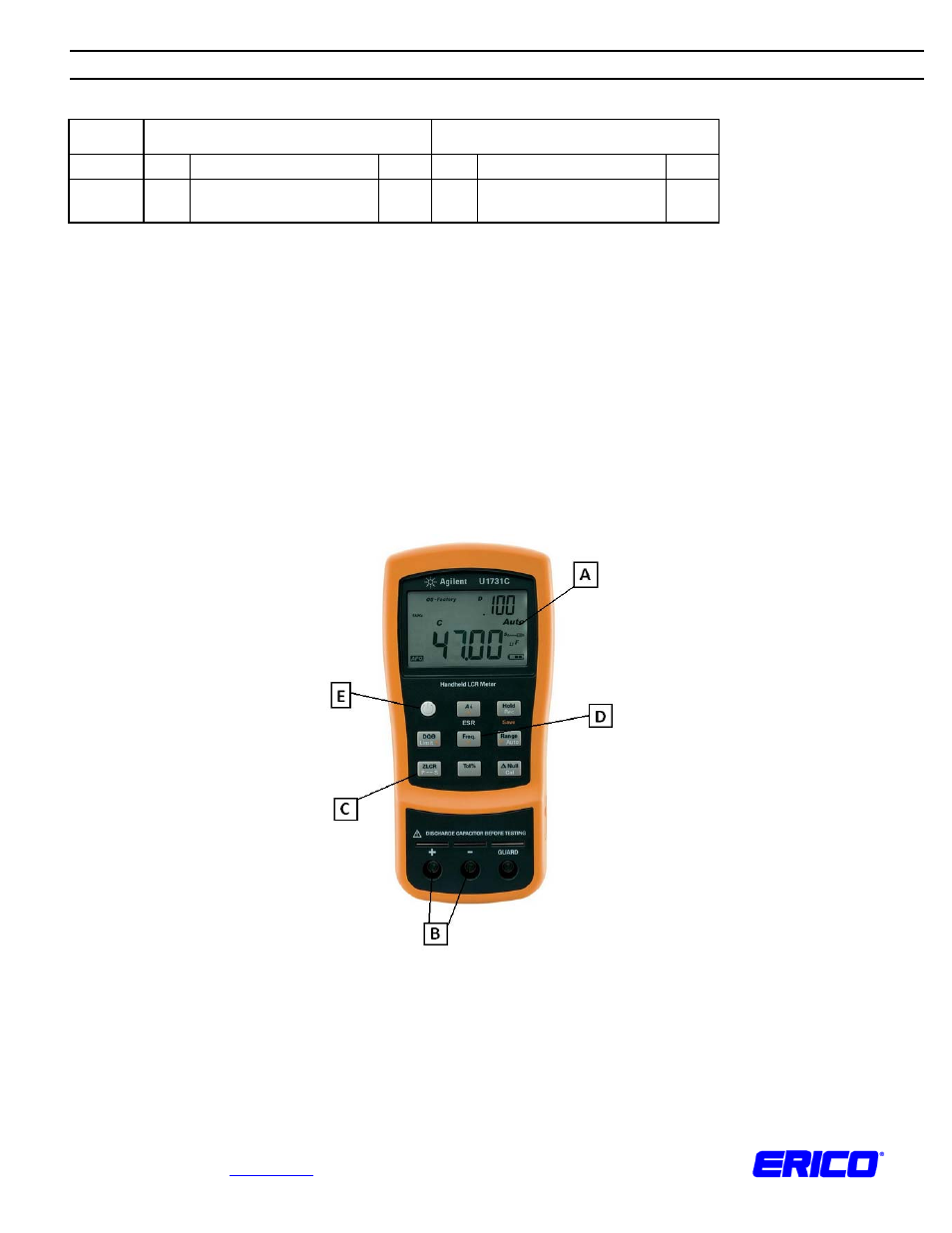

Figure 1: U1731C
A: Digital Screen
B: Positive and negative terminals for wire connection
C: Changing measurement button (to move from L to C)
D: Changing frequency button (to change frequency)
E: Power switch
