ERICO TDSGAPA14 Grounding Bus - Manual

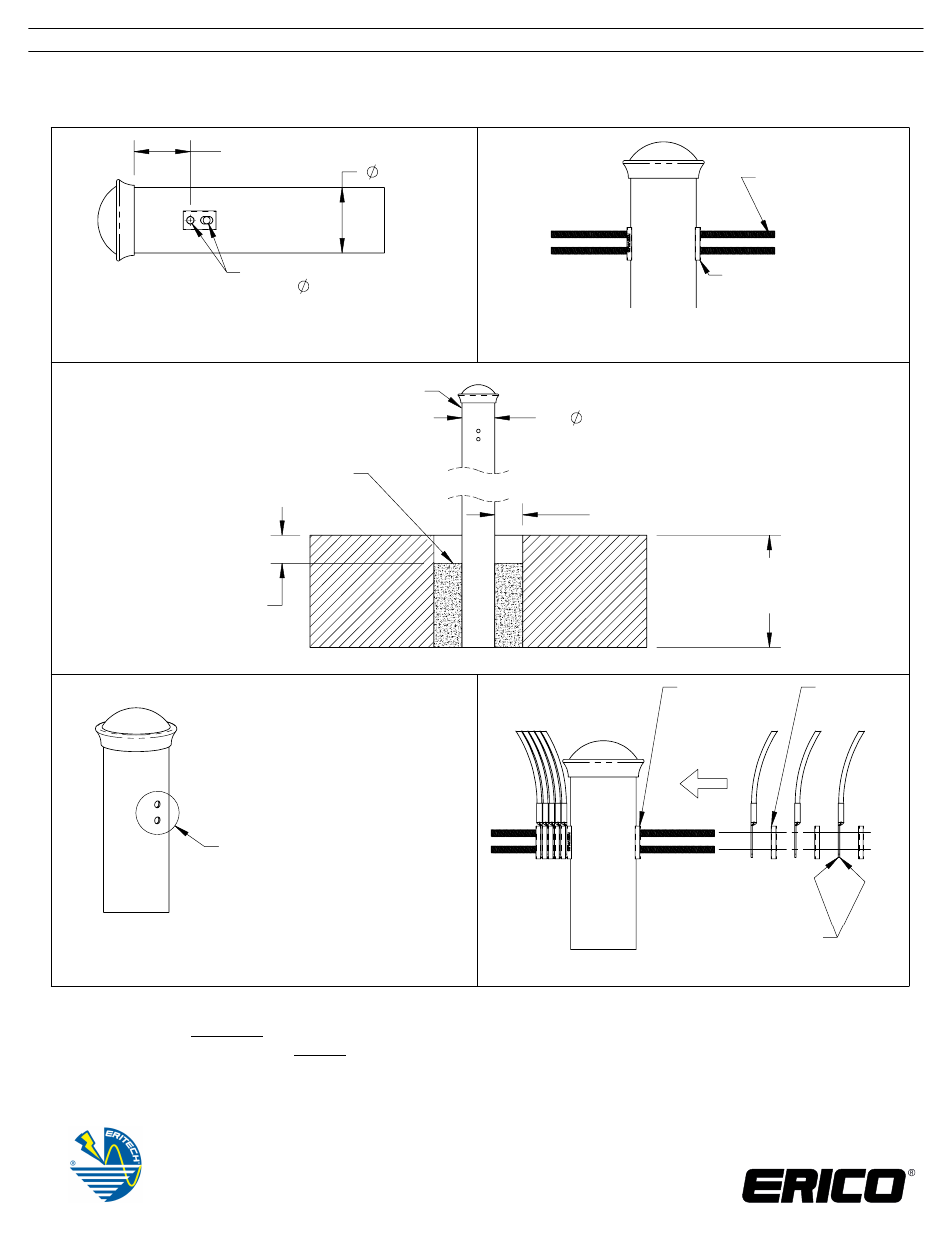

3 inches [75mm]
3.5" [89mm]
(1) Mark Hole Center
(2) Drill 3/8 [10mm] Through
Threaded Rods
Confirm hole alignment
with threaded rods and
contoured spacers.
A
A
3.5" [89mm]
Galvanized Steel Pipe
3" Schedule 40
[DN90 per EN10255H]
3" [75mm] All around.
2.5 ft [75cm]
or 6" [150mm] below frost line
Whichever is deeper
6" [150mm]
Below grade
Post should
be vertical
Figure 3
Concrete
Allow to cure
before proceeding
to next step.
(1) Remove oxide layer on both
sides of the post. Use a T313 wire
brush or equivalent.
(2) Apply anti-oxide compound. Apply anti-oxide
compound to both
sides of all lugs prior
to installation
Figure 5
TDSGAP
Contoured
Spacer
TDSGAS
Flat
Spacer(s)
Figure 1 Figure 2
Figure 4
