Sheet2 – ERICO IP7451A SBC105R Mold Assembly with Quick Grip Extension Clamp User Manual

Page 2

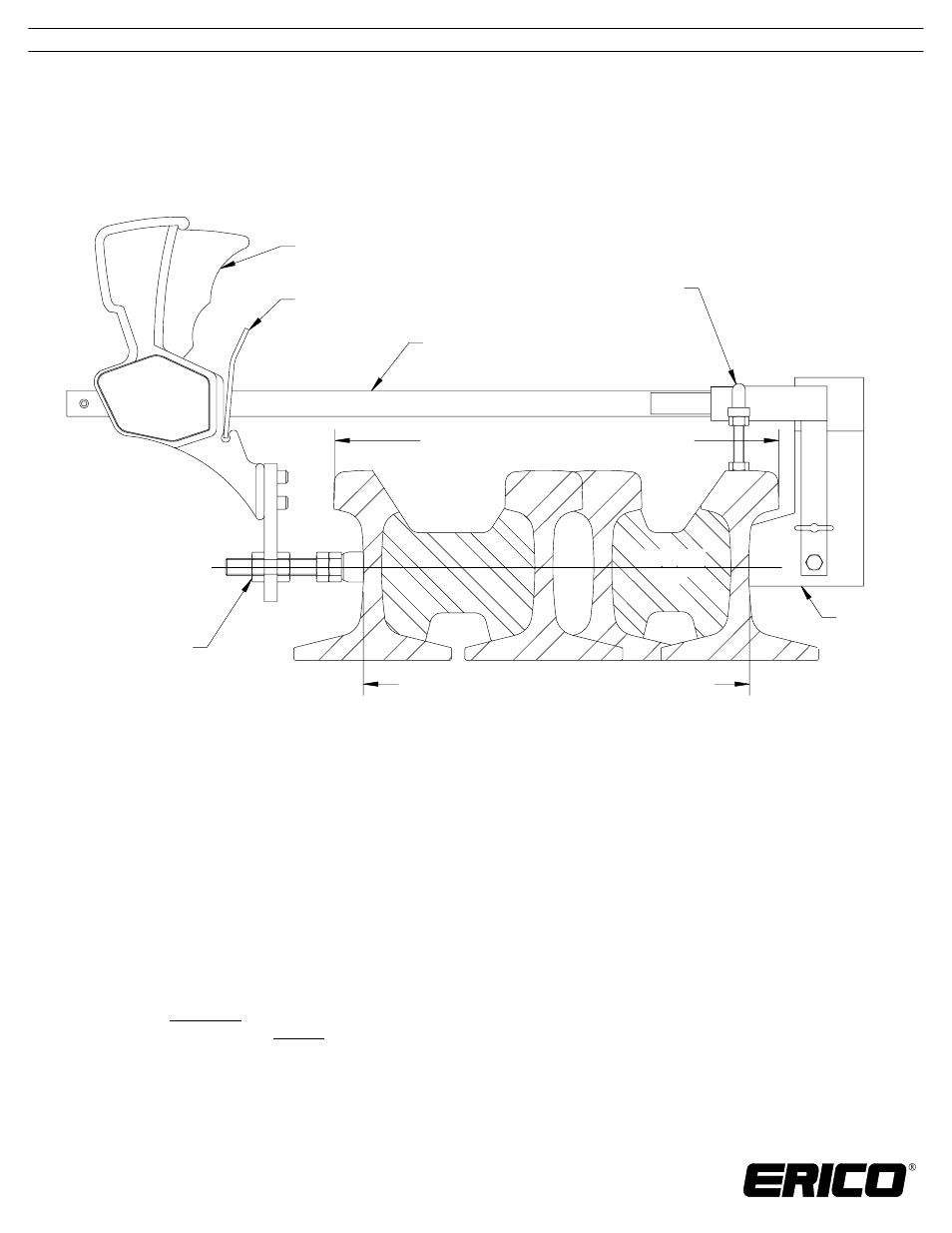

28" [711mm] Max Head Clearance

25.5" [648mm] Max Clamp Web to Web]

Neutral

Axis

Adjustable

Swivel Pad

Mold

Height Adjustment Screw

C105R Clamp Frame Assembly

"Quick Release"

"Locking Grip Clamp"

Prior to making a connection, read and follow the full instruction sheets IPP, IPX,

IPRLBR and special instructions below.

Place mold welder against web of rail with center of bond at the neutral axis ±0.13

[3mm]. Use "height adjusting screw" to raise for location.

Adjust the swivel pad for proper clearance of the rail head.

Use the "quick release" to move the clamp into position. Use the "Locking Grip

Clamp" to secure the clamp and mold to the rails.

See IPP for set-up and welding procedures.

Upon completion of the weld, squeeze the "quick release" while pulling back

away from the weld.

TECHNICAL SUPPORT:

www.erico.com

IP7451A_B

INSTRUCTION SHEET

2 OF 2
