Prior to making a connection, read and follow the full instruction sheet IPRF, the full instruction
sheet shipped with ERICO CADWELD (IPX) and special instructions below.
Clamp bottom of mold to rail.
1.
Position cables in mold bottom with .25” [6 mm] gap between cable end and rail lip.
2.
Reference mark cable at edge of mold for later use in checking position.
Lock halves of mold top together using toggle handles. Place on mold bottom. Lock top
3.
and bottom sections together using toggles.
Pack all openings between mold and rail (at sides of mold) with ERICO packing material to
4.
prevent leakage of molten welding material.
Check cable position before initiating weld reaction.
5.
After the reaction, allow 30 seconds for the weld metal and slag to solidify.
6.
Remove all ERICO packing material as soon as possible (may be reused).
7.
Unlatch toggle clamps and remove mold top.
8.
Unlatch vise grips and remove mold bottom from rail.
9.
Note: Care should be exercised to prevent chipping of the graphite parts.

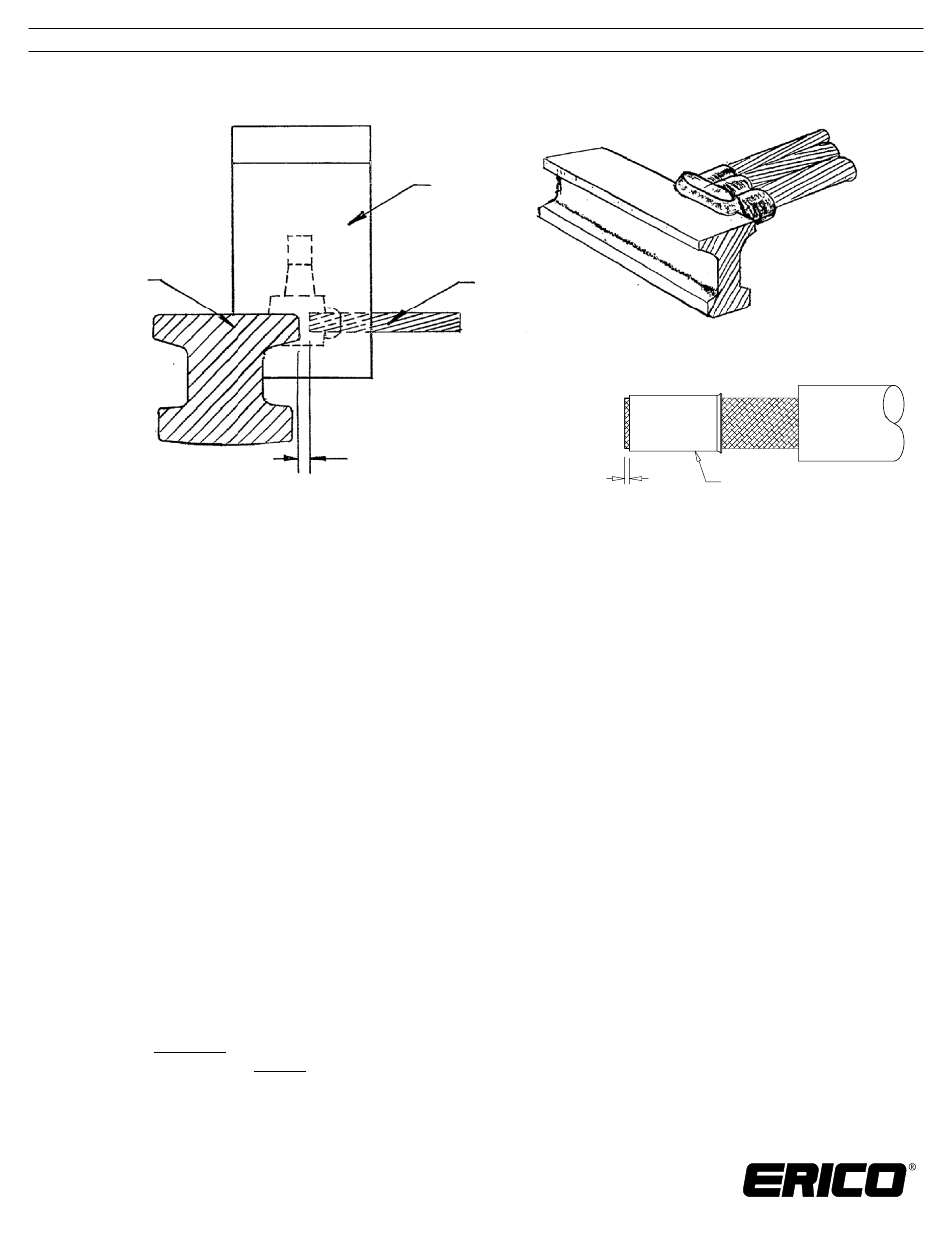

Mold
Cables
.25" [6mm] Gap
150 lb.
[68.1 kg.]
Beth Rail
®
When using adaptor sleeves, let conductor
protrude 1/8" beyond end of sleeve.
.13" [3mm]
Flared Cable sleeve
®
