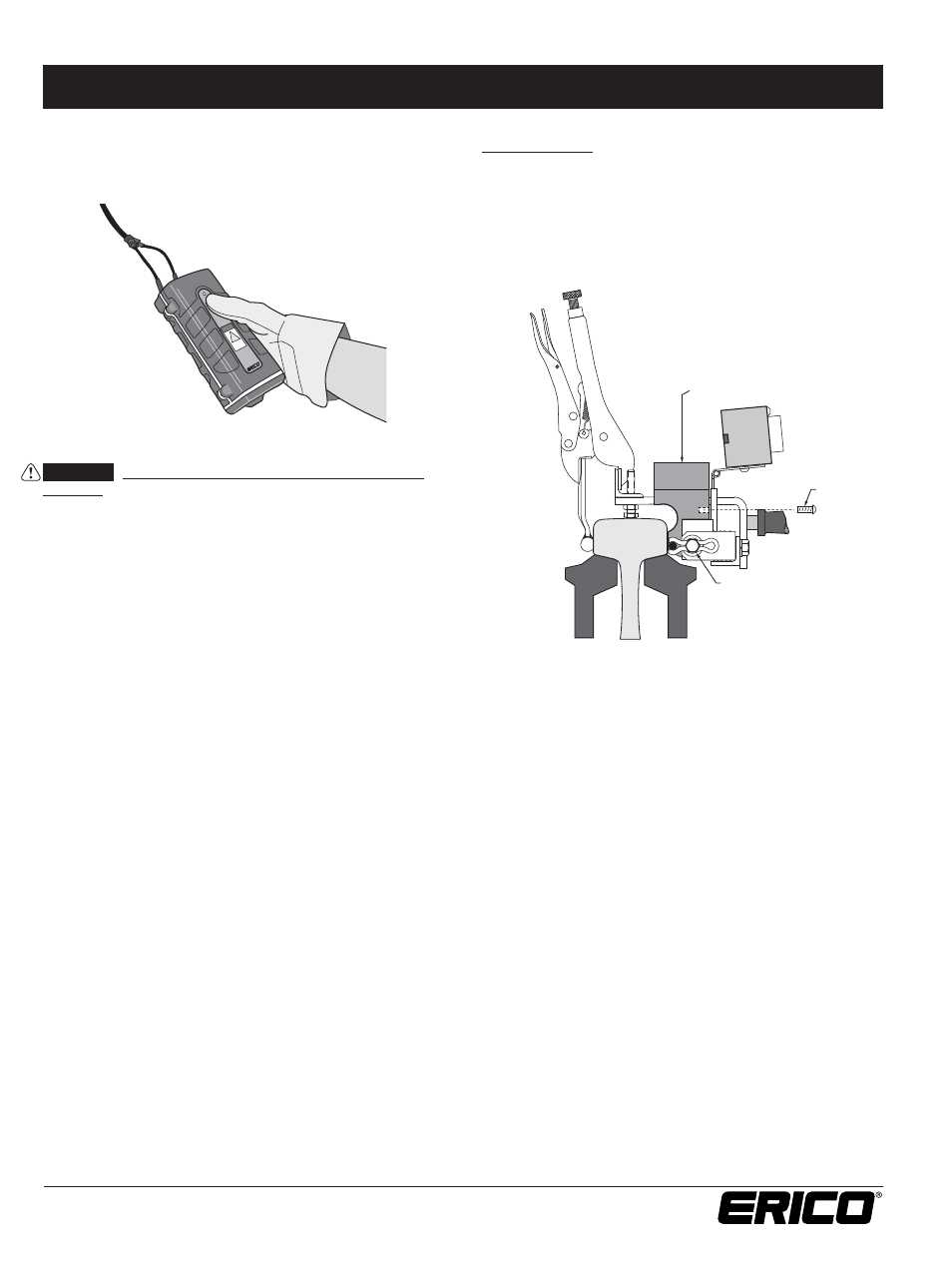

6. Press and hold Control Unit operator button until the ready
light turns off and wait for ignition. See Figure 12.
www.erico.com
Copyright ©2008, 2010, 2012, 2013 ERICO International Corporation. All rights reserved.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
Screw “A”
Bolt “B”
Pull Out Worn Mold
FIGURE
13
4
IPRSJCP_C R1057IS12WWEN PUR1013
CADWELD ® PLUS Rail Joint Head Bonds
Refer to the mold tag for applicable instruction sheets. IPRSJCP_C
FIGURE
12
CAUTION: Allow 15 seconds for mold cooling after the
reaction. This will permit the molten metal to solidify.
7. Carefully open the mold and remove the expended steel cup
— no special disposal required.
8. Break up the slag in the crucible using the blade on the
mold cleaning tool.
9. Unlock clamp and remove welder by pulling the mold straight
back from the rail. Failure to observe this may result in mold
damage and its premature scrapping. Molds can generally be
re-used up to 50 times.
10. Dump the slag from the crucible and remove the slag from
the taphole using the curved end of the mold cleaner. Dump
slag in the ballast, not onto the ties.
11. Check the molds for breakage or residual slag before
proceeding with the next weld.
Changing Molds (See Figure 13.)
A. Remove mold back frame Screw “A”.
B. Pull out worn mold.
C. Insert new mold, replace Screw “A”. Check bolt “B” to be
sure it is not too tight. Mold must be free to move within
frame against pressure spring.
Note: If you have any questions or require further instructions,
or would like training, contact ERICO at 1-800-447-7245.
