Sheet2, Drawing view6, Drawing view7 – ERICO Branch Line Restraint Device User Manual
Page 2: Drawing view8, Drawing view9
For proper installation the hex head
will break away from bolt.
Minimum 70 in/lbs[7.9 Nm]
For proper installation
a minimum of 1-1/2"
should be past assembly
Use a 5/16" or 8mm
wrench or socket
Installation using a drill or impact drive
should not exceed a drive speed of
1500 rpm. Exceeding 1500 rpm drive
speed may cause stripping of the thread.
3/8" or 1/2" [M10 or M12]
Threaded Rod
Some slight bending of threaded rod is
acceptable and will not harm the
performance or installation of the part.
Rod can be installed on top or bottom
of pipe.

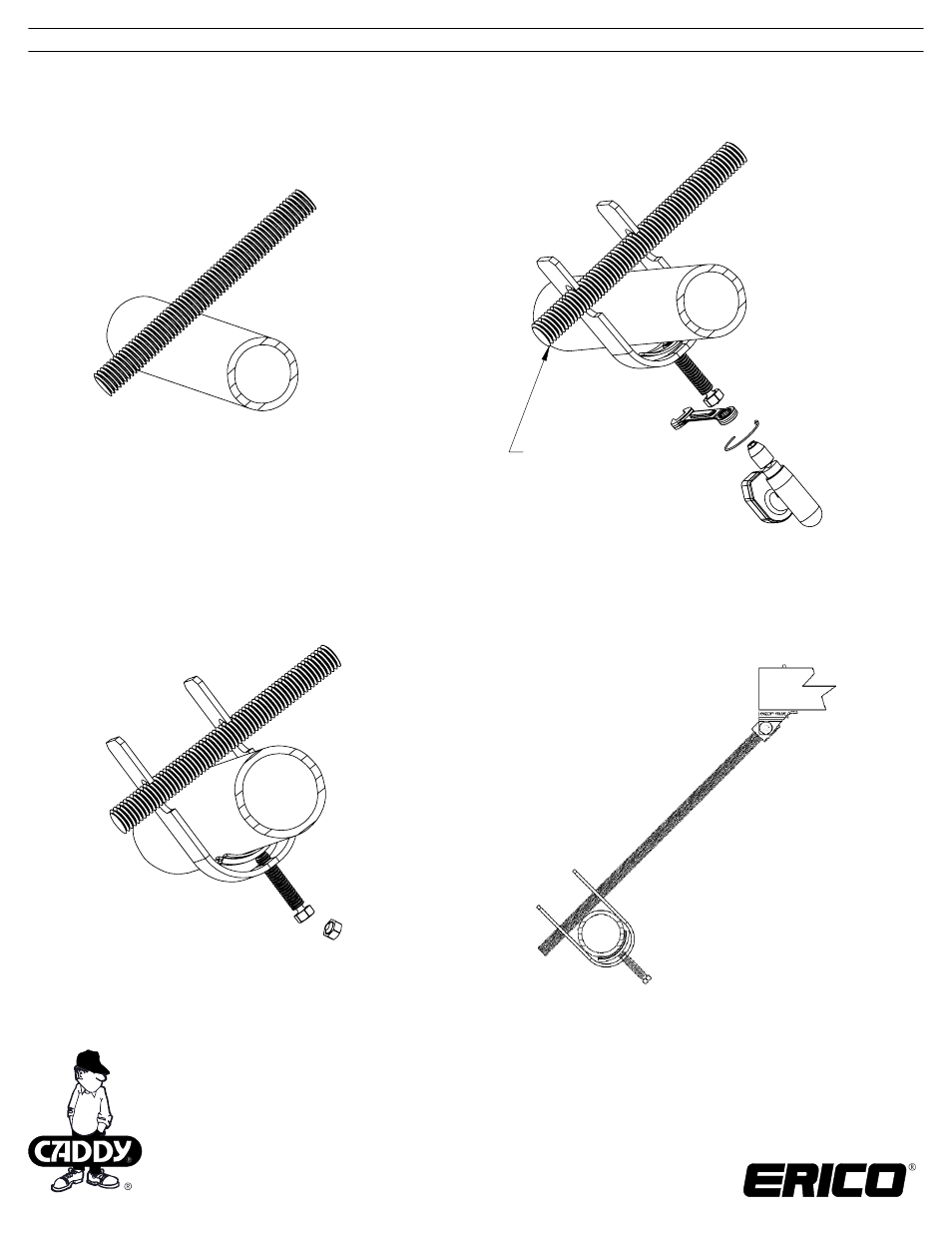

STEP 1
Example of
full assembly
STEP 2
TECHNICAL SUPPORT:
www.erico.com
CFS449_E
INSTRUCTION SHEET
2 OF 2
© 2011, 2012 ERICO International Corporation
