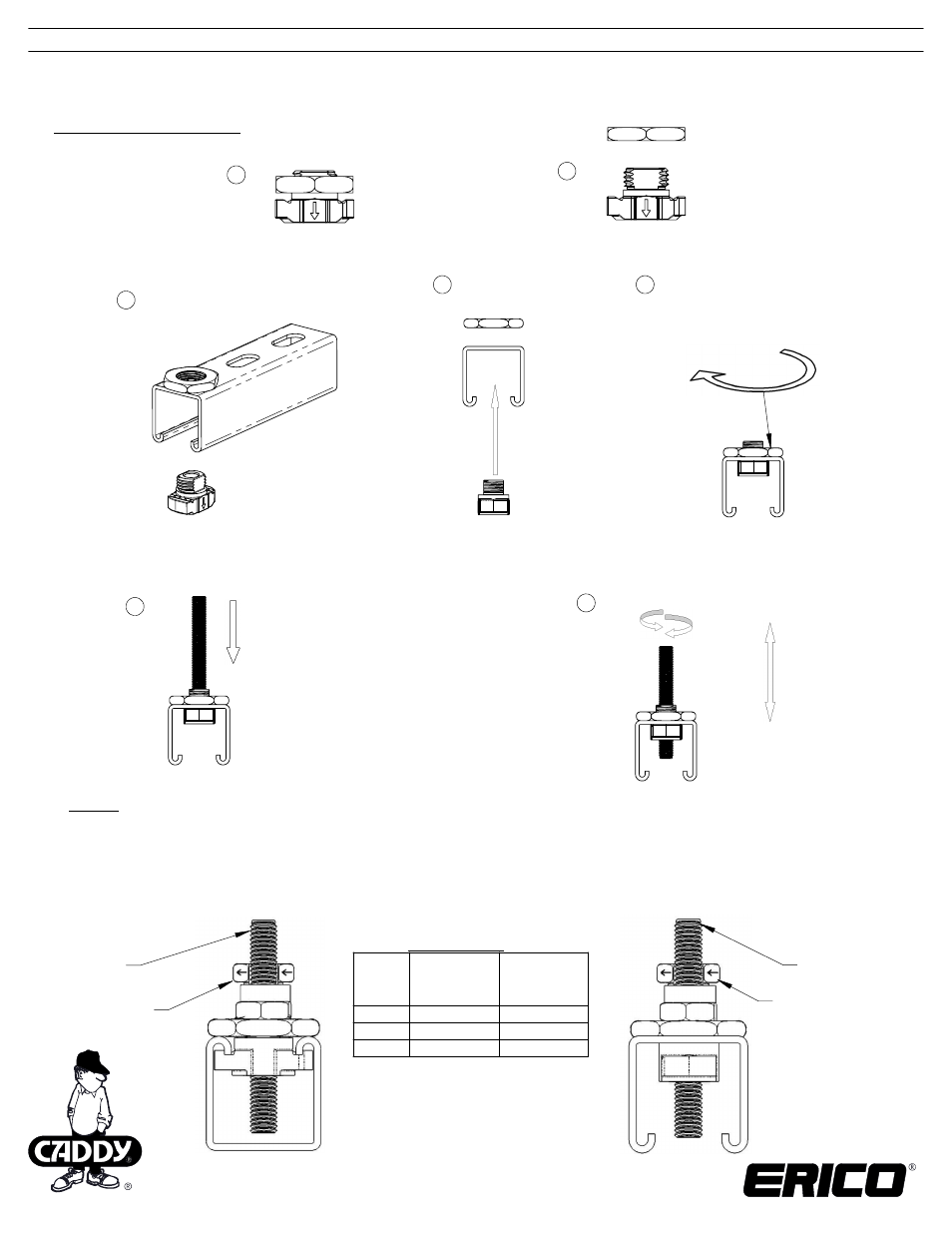

Sheet2, Drawing view67, Drawing view66 – ERICO CADDY ROD LOCK Channel Nut User Manual
Page 2: Drawing view68, Drawing view69, Drawing view70, Drawing view72, Drawing view73
Tighten to
45 FT- LBS (61 N-m)
1
2
5
7
Bottom Up Mounting (See note 1)
4
Note 1
For the up-thrust load or high amplitude vibration application,
add a jam nut or SN Nut as shown below.
Top Up Mount
Bottom Up Mount
Rod
SN Nut
SN Nut
Rod
*Arrow on CADDY
®
ROD LOCK Channel Nut must always point down.
3
SN Series Nut
6
Rod Size
U.S.
Part Number
Europe
Article
Number
3/8"
SN37
n/a
M8
SNM8
390006
M10
SNM10
390007
TECHNICAL SUPPORT:
www.erico.com
CFS411_F
INSTRUCTION SHEET
2 OF 2
© 2009, 2010 ERICO International Corporation
