ElmoMC ExtrIQ Digital Servo Drives-Hornet - Manual (Page 42)

Hornet and Bee Installation Guide Installation
MAN-HRBEIG (Ver. 1.304)
www.elmomc.com
42
3.11. I/Os
The Hornet and Bee have:
• 6 Digital Inputs
• 2 Digital Outputs
• 1 Analog Input
I/O J1 J2 Total
Digital Input 6 - 6
Digital Output 2 - 2
Analog Input - 1 1
3.11.1. Digital Input
Each of the pins below can function as an independent input.

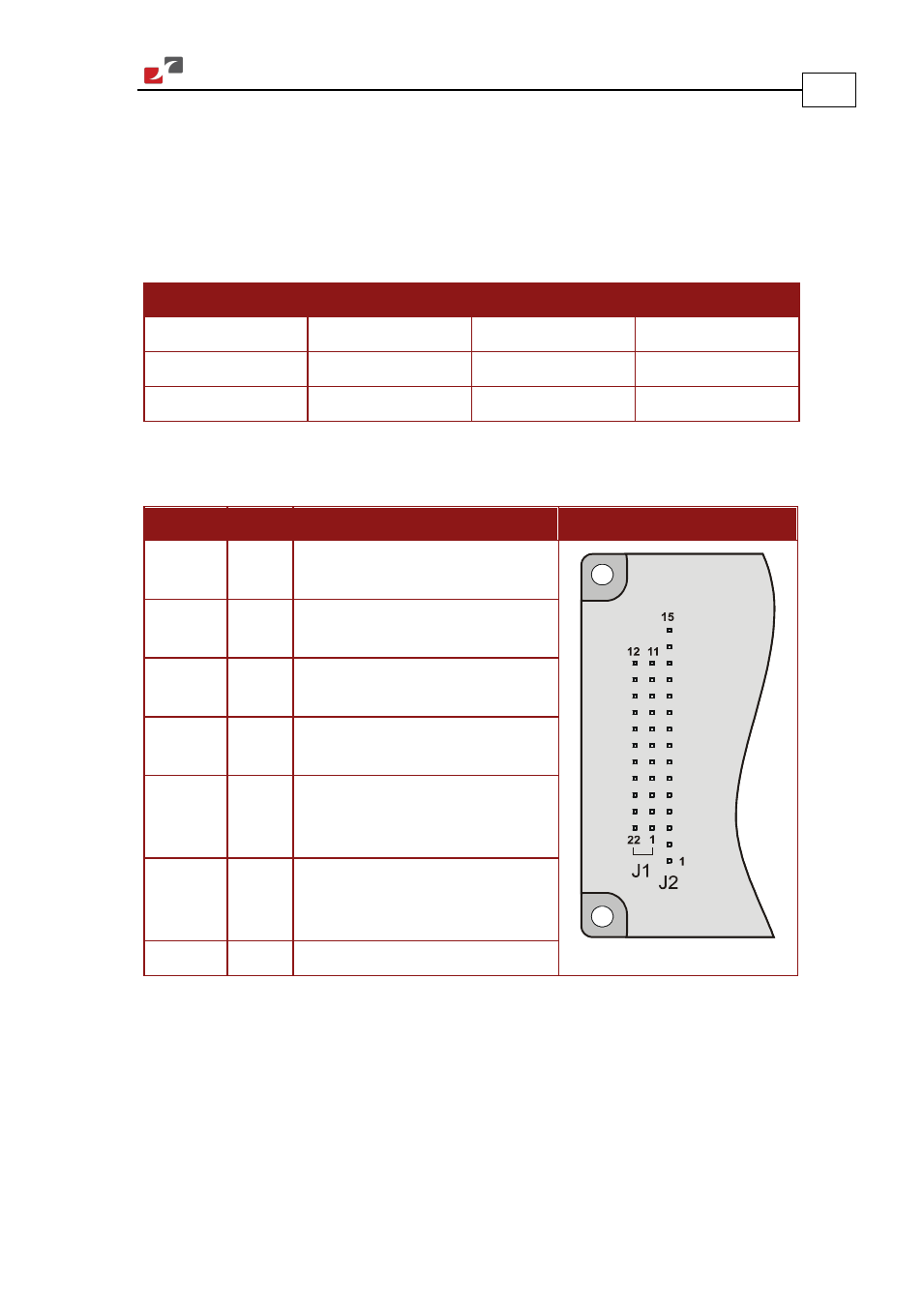

Pin (J1) Signal Function Pin Positions
9 IN1 Programmable input 1
(general purpose, RLS, FLS, INH)
10 IN2 Programmable input 2
(general purpose, RLS, FLS, INH)
11 IN3 Programmable input 3
(general purpose, RLS, FLS, INH)
12 IN4 Programmable input 4
(general purpose, RLS, FLS, INH)
13 IN5 Hi-Speed Programmable input 5
(event capture, Main Home,
general purpose, RLS, FLS, INH)
14 IN6 Hi-Speed Programmable input 6
(event capture, Auxiliary Home,
general purpose, RLS, FLS, INH)
15 INRET Programmable input return
Table 8: Digital Input Pin Assignments
