Hornet and Bee Installation Guide Installation
MAN-HRBEIG (Ver. 1.304)
www.elmomc.com
17

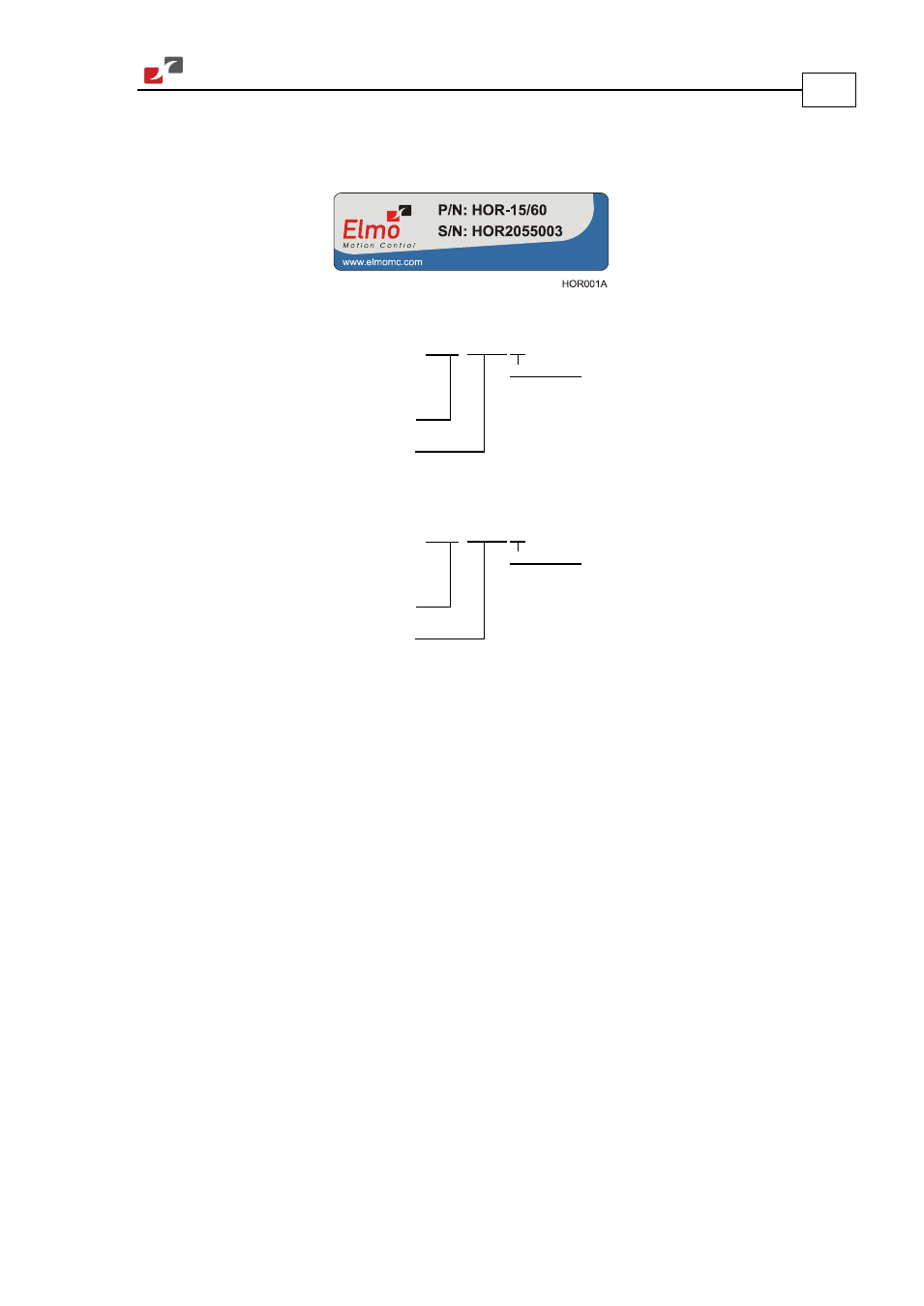

3. To ensure that the Hornet or Bee you have unpacked is the appropriate type for your
requirements, locate the part number sticker on the side of the Hornet or Bee. It looks like
this:
The part number at the top gives the type designation as follows:
Maximum DC
Operating Voltage
Continuous Current
(Amps)
Feedback:
Blank = Incremental
Encoder
and/or Halls
R = Resolver
HOR- XX/YYY R
T = Tachometer &
Potentiometer
I = Interpolated
Analog
Encoder
Maximum DC
Operating Voltage
Continuous Current
(Amps)
Feedback:
Blank = Incremental
Encoder
and/or Halls
R = Resolver
BEE- XX/YYY R
T = Tachometer &
Potentiometer
I = Interpolated
Analog
Encoder
4. Verify that the Hornet or Bee type is the one that you ordered, and ensure that the voltage
meets your specific requirements.
