Hornet and Bee Installation Guide
Introduction
MAN-HRBEIG (Ver. 1.304)
15
reading the safety instructions in the first chapter, the following chapters provide you with
installation instructions as follows:
•
Chapter 3, Installation
, provides step-by-step instructions for unpacking, mounting,
connecting and powering up the Hornet and Bee.
•
Chapter 4, Technical Specifications
, lists all the drive ratings and specifications.
Upon completing the instructions in this guide, your Hornet and Bee servo drives should be
successfully mounted and installed. From this stage, you need to consult higher-level Elmo
documentation in order to set up and fine-tune the system for optimal operation. The
following figure describes the accompanying documentation that you will require.

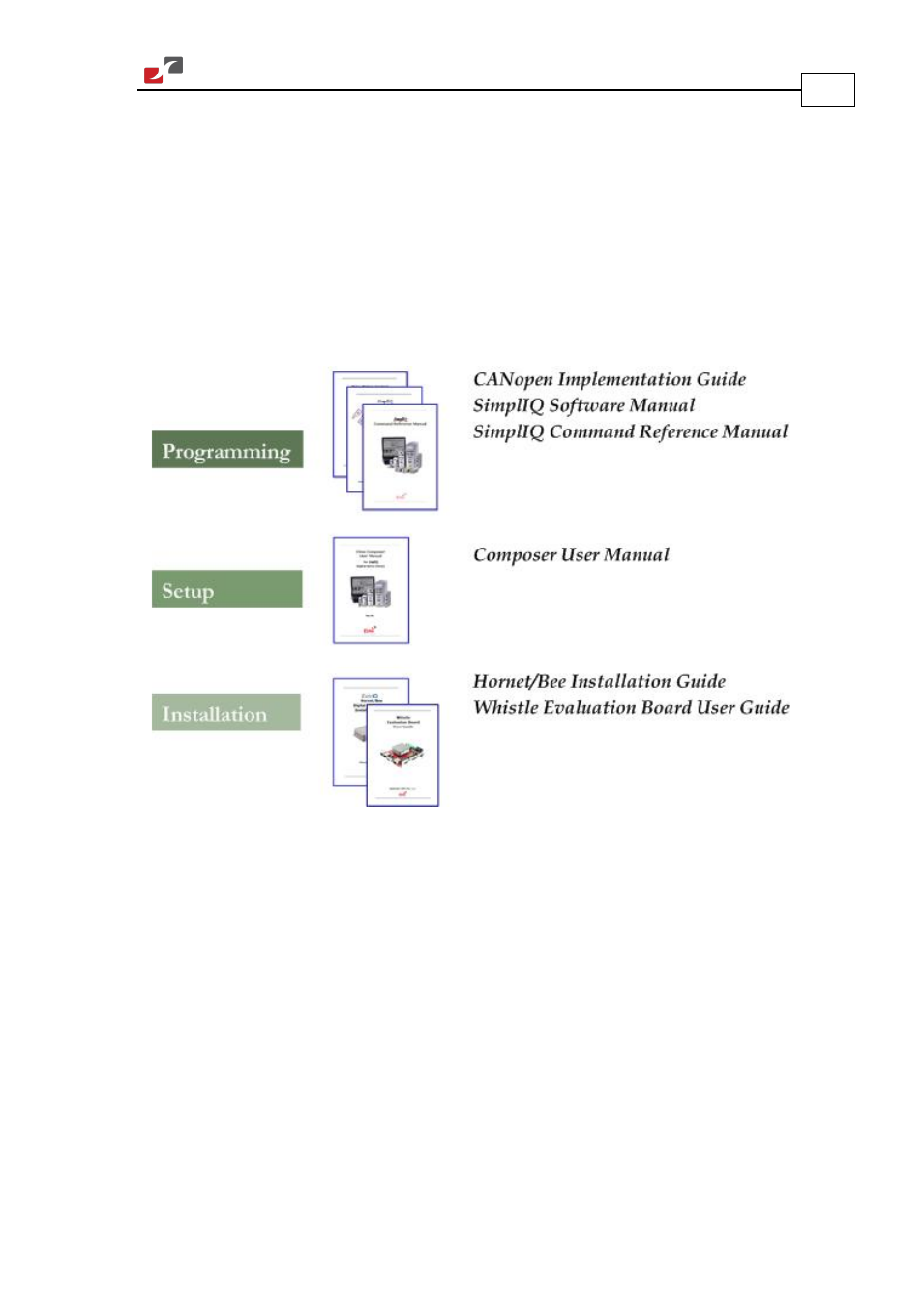

Figure 2: Elmo Digital Servo Drive Documentation Hierarchy
As depicted in the previous figure, this installation guide is an integral part of the Hornet and
Bee documentation set, comprising:
•
The Composer Software Manual, which includes explanations of all the software tools that
are part of Elmo’s Composer software environment.
•
The SimplIQ Command Reference Manual, which describes, in detail, each software
command used to manipulate the Hornet and Bee motion controller.
•
The SimplIQ Software Manual, which describes the comprehensive software used with the
Hornet and Bee.
